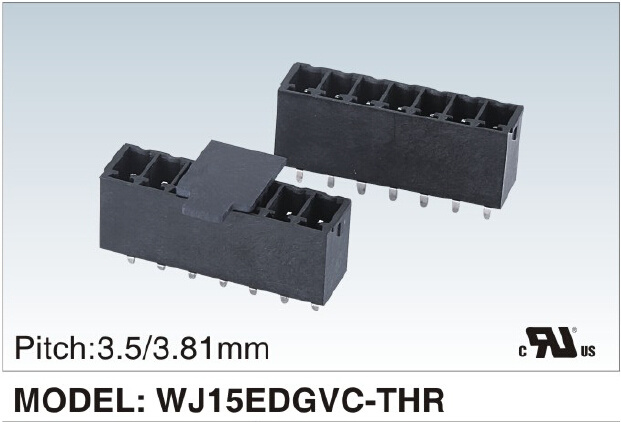

High Temperature Polyamide Male Pluggable Terminal Block (WJ15EDGVC-THR-3.81)

High Temperature Polyamide Male Pluggable Terminal Block (WJ15EDGVC-THR-3.81)
Price: US $ 0.0574-0.06/Piece
Min Order: 2000/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: WJ15EDGVC-THR-3.81
Pitch: 3.81mm
Pin Header: Copper Alloy, Sn Plated
Housing: High Temperature Polyamide, UL94V-0
Rated Voltage/Curret: 300V/8A
Application: PCB
Environmental Protection: Resistance to Environmental
Connection Mode: In-Line Connector
Shape: Rectangle
Contact Termination Form: Screws Fixed
Brand: Wanjie

Product Description







CIXI WANJIE ELECTRONIC CO., LTD was founded in 1992 and specializes in the production of terminal blocks. The company  have passed the ISO9001:2008, ISO14001, OHSAS18001 quality management system and our products have passed UL, VDE, TUV, RoHS, CQC, CB, CE certification.

Because of advanced production and test equipment, we could offer high quality and more competitive products. With many years development, we also have own R&D center. Therefore, perfect OEM/ODM service can be supplied.

Hope to cooperate with you!
www.china-wj.com


Why choose us:
1. Good reputation
2. The quality of the products
3. Competitive price
4. Quality of Service
5. Free samples
6. Quick feedback



WJ15EDGVC-THR-3.81











MATERIAL




Pin header

                 Copper alloy, Sn Plated
Housing

             High temperature polyamide, UL94V-0






ELECTRICAL



Standard

                  UL                 IEC
Rated voltage

                300V               250V
Rated current

                8A               7A
Contact Resistance

                          20mΩ
Insulation resistance

                        500mΩ /DC500V
Withstanding volatge

                        AC 2000V/1 min






MECHANICAL



Temp.range

                        -40º C ~ +130º C
MAX Soldering

                       +285º C for 10 Sec

If you can't find the exact product you need in the pictures, please don't go away.

Just contact me freely or send your sample and drawing to us.

We will reply you as soon as possible.
Cixi Wanjie Electronic Co., Ltd., is founded in 1992 and specializes in making terminal block and solderless breadboard. We have passed the ISO9001: 2000 quality management system and the products have been approved by VDE, UL, CE, SGS, CQC, RoHS and TUV.

With many years development, we have built an excellent management team and have our own R & D center, mould production, plastic injection, hardware stamping and assembling workshop. So we will give you the best offer also we can design, develop and produce the products according to customers' Request.

We have adopted advanced production and test equipment, so that we could offer good quality and more competitive products. For better service to the customers, we can also design, develop and produce according to customer`s requirement for OEM/ODM products.

With the advanced equipment and production line, good quality, competitive price and good service, our products are sold far to America, Europe, Middle East, Africa etc and receive good comments from the customers. So the company shows warm welcome to consult the business with all the customers both at home and abroad.

All the staff of company will strive together for a better tomorrow and show warm welcome to the customers of allover the world.
