High Temperature Pressure Sensor

Name: High Temperature Pressure Sensor
Brand: all-electronics-online.com
SKU: 802426765
Availability: InStock
Rating: 4.8 (28 reviews)

Price:	US $ 40-150/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	421B
Compensation Range:	-10~70 Celsius
Power Supply:	24V DC
Output Signal:	4-20mA (1-5V); 4-20mA with Hart Protocol
Pressure Range:	0-(-10)~ (-100kpa), 0-10kpa~100MPa
Pressure Type:	Gauge Pressure, Absolute Pressure, Sealedpressure
Electrical Connector:	Hirschmann(DIN), Cable, Bendix Connector
Type:	Diffused Silicon Pressure Transmitter
Thread Type:	G1/2,M20*1.5,1/4NPT,1/2NPT, Customized
Measuring Medium:	Gas, Oil, Liquids, Steam
Certification:	ISO Ce RoHS Ex

Product Description

Product Description

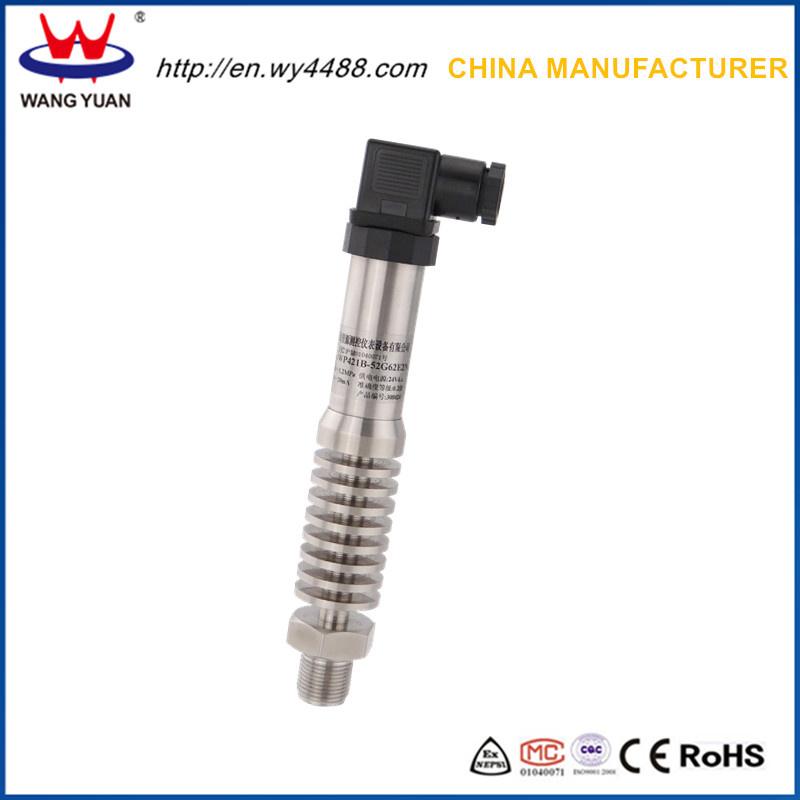

High temperature pressure sensor
Model: WP421B
Application

This High temperature pressure sensor can be used to measure and control PRESSURE of liquids, gas, fluids in:

Petroleum and chemical industry,
Hydraulic and level measurement,
Light industry, Metallurgy,
Industrial test and control,
Oil & Gas and other automatic control industries.

Description

1. WP421B High temperature pressure sensor adopt advanced imported sensor component and anti-high temperature sensitive element.

2. The high temperature pressure sensor's probe can work stably for a long time under high temperature 350ºC operation environment.

3. Laser welding technology is used between sensor and stainless steel house, which melts the two parts into one, and ensures pressure sensor's safety usage at high temperature state.

4. Between pressure core parts of pressure sensor and circuit board, there is a PTFE(Teflon) gasket for heat insulation.

5. With strong anti-jamming performance, this pressure sensor is widely used to exactitude measure and control for scientific research, petroleum & chemical, oil & gas, electric power, ocean, coal mine and other sever environment.

Features

* Various signal outputs

* HART protocol is available

* With Heatsink construct

* High precision 0.1%FS, 0.2%FS, 0.5%FS

* Compact dimension design, strong construct

* Operating temperature: 150ºC, 250ºC, 350ºC

* Light weight, easy to install, maintenance-free

* 100% Linear meter or 3 1/2 LCD or LED digital indicator is configurable

* Explosion-proof type: Ex iaIICT6; Ex dIIBT4.

Specification:

Name	High temperature pressure sensor
Pressure range	0-0.2kPa~100kPa, 0-0.2kPa~100MPa.
Pressure type	Gauge pressure(G), Absolute pressure(A), Sealed pressure(S), Negative pressure (N).
Supply voltage	24VDC
Output	4-20mA; 0-10mA; 0-5V; 1-5V
Operating temperature	Probe: 150ºC, 250ºC, 350ºC/Circuit board: -30~70ºC
Protection grade	IP68
Overload	150%FS
Stability	0.2%FS/year
Electric connector	Vented cable
Electrical connection	Hirschmann, Cable, Bendix connector(4PIN,5PIN)
Pressure connector	M20*1.5, G1/2, customized
Measured medium	Shell: SS304/Wetted part: Stainless steel 304 or 316L
Note: more detailed parameters, please feel free to contact us.
