High Temperature Pressure Transmitter for 4~20mA

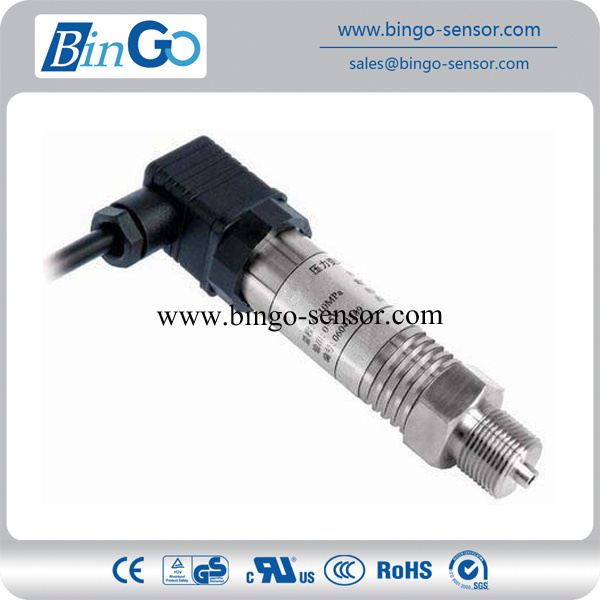

Name: High Temperature Pressure Transmitter for 4~20mA
Brand: all-electronics-online.com
SKU: 784581585
Availability: InStock
Rating: 4.7 (133 reviews)

Price:	US $ 1-11/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	PT-ID05-H
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output:	4~20madc
Accuracy:	≤±0.25%Fs
Compensated Temperature:	-10~70°c
Pressure Range:	-0.1MPa-100MPa

Product Description

Introduction
The Industrial Pressure Transmitter PT-ID05-H with high temperature pressure sensor signal through
a dedicated amplifier circuit is converted to standard output signal, we selected based on different working temperature sensitive components of the ceramic thick sapphire core, to ensure that in the high temperature range. Within the transmitter can be long-term stability of the work can be carried out on-site adjustment.

Type	PT-ID05-H
Temperature	0°C~+120°C(Ceramic core)	0°C~+200°C(Sapphire core)
Range	0...200KPa...60MPa	0...200KPa...160MPa
Output	4~20mADC(two wire), 0~5VDC(three wire or four wire), 0~10mADC(three wire or four wire)
pressure type	Gauge pressure, absolute pressure, sealed pressure
Accuracy	≤±0.25%FS(typical);≤±0.5%FS(max)
Years stability	≤±0.1%FS(typical);≤±0.2%FS(max)
Overload capacity	150%
Supply voltage	12~28VDC(typical:24VDC)
Medium temperature	-10~150°C/-10~250°C
compensated temperature	-10~70°C
Insulation resistance	>100MΩ/50V
Insulating strength	>500MΩ/500V
Pressure connection	M20×1.5,M12×1,G1/4,G1/2
electrical connection	Cable or Hochman plug
Suitable medium	Liquid compatible with 316LSS
Shell protection	IP65
Explosive-proof grade	ExiallCT5
