High Temperature Resistance Cartridge Heater Swaged Cartridge Heater
| Price: |
Negotiable/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
T/T |
Product Description
=OverviewQuick Details Condition:New
Type:high /medium density
Power Source:Electric
Place of Origin:Jiangsu, China (Mainland)
Brand Name:Superb HeaterModel Number:Customized
Dimension(L*W*H):Custom Size
Weight:According to your final size
Voltage:Customized
Power(W):Customized
Certification:CE ROHS
Warranty:12 Months

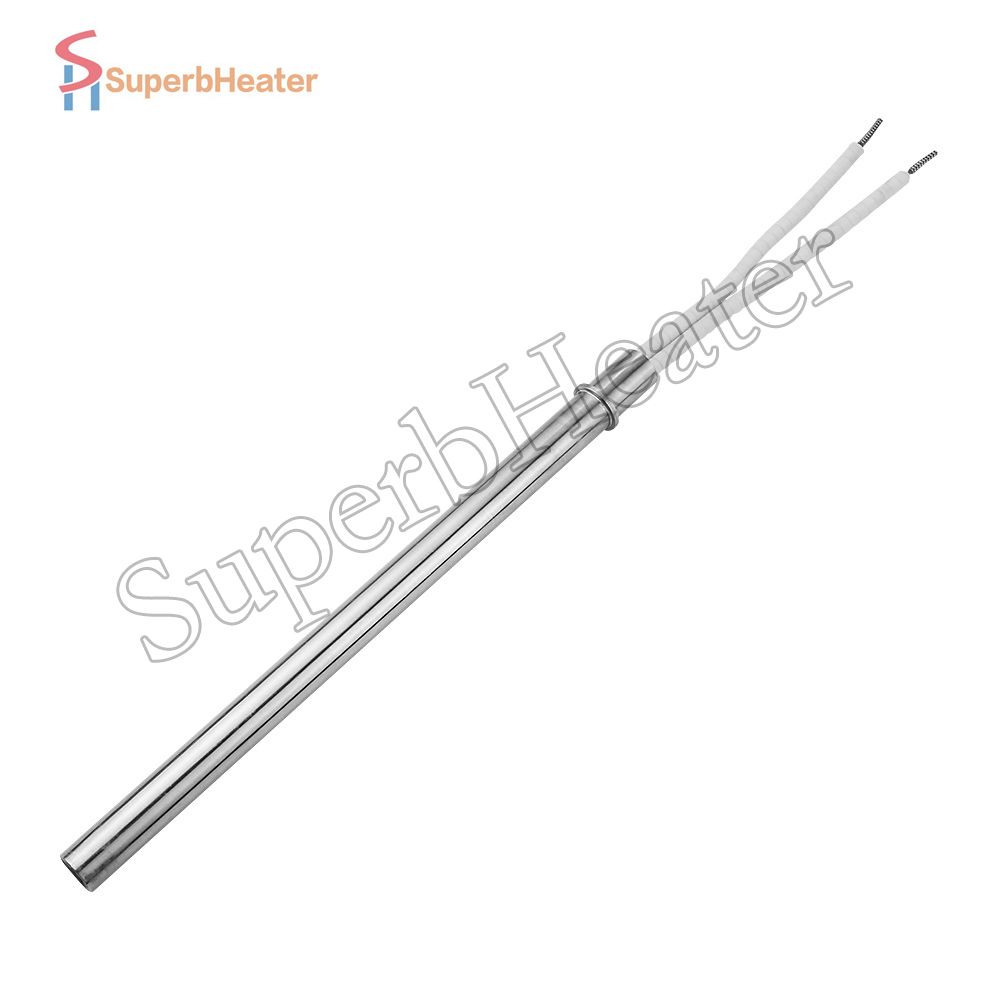

Product name:MICC 230V 250W Swaged Cartridge Heater
Band Name:Superb Heater
Application:Industry Heating Process
Material:SS304
Tube Diametre:3mm-30mm
Insulation Material:High purity mgo powder
Heating wire:NICR
Lead way:inside or external
Normal wire length:500mm or Customized
Types:High power density /middle power density
Packaging & Delivery
Packaging Details
Carton box Outside and Inside Plastic Seal
Delivery Time
5-15days but according to your final qtty
Superb Heater Cartridge Heaters For Injection Molding Machine
Description
Electric heater cartridge is made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr2080),High temperature leads, seamless stainless steel sheath(304,321,316,800,840). usually in tube form,
that is used in heating applications by way of insertion into metal blocks via a series of drilled holes. Cartridge heaters are manufactured in two basic forms - high density and low density.
High density cartridge heaters are used to heat plastic injection moulds, dies, platens and so forth, whereas low density cartridge heaters are more suitable for packing machinery, heat sealing, labelling machines and hot stamping applications.
Application
· Injection moulding - Internal heating of nozzles
· Hot runner systems - Heating of manifolds
· Packaging industry - Heating of cutting bars
· Packaging industry - Heating of hot stamps
· Laboratories - Heating of analytical equipment
· Medical: Dialysis, Sterilization, Blood Analyzer, Nebulizer, Blood/Fluid Warmer, Temperature Therapy
· Telecommunications: Deicing, Enclosure Heater
· Transportation: Oil/Block Heater, Aircraft Coffee Pot Heaters,
· Food Service: Steamers, Dish Washers,
· Industrial: Packaging Equipment, Hole Punches, Hot Stamp.
Technical data
Industrial heater | Immersion cartridge water heater with thermocouple |
Resistance heating wire | NiCr 80/20 wire |
Sheath | stainless steel 304,321,316, Incoloy 800, Incoloy 840 |
Maximum temperature | 800 degree Celsius |
Wattage Tolerance | +5%, -10% |
Resistance tolerance | +10%, -5% |
Voltages available | 380V,240V, 220V,110V,36V,24V or 12V |
Length tolerance | ±1 mm |
Diameter tolerance | -0.02mm |
Standard Cold Zone | 5-10mm |
Delivery time | 7-10 working days |
Insulation resistance (cold) | ≥ 500 MΩ |
Maximum leakage current (cold) | ≤ 0.5 mA |
Thermocouple Location | type J |
type K |

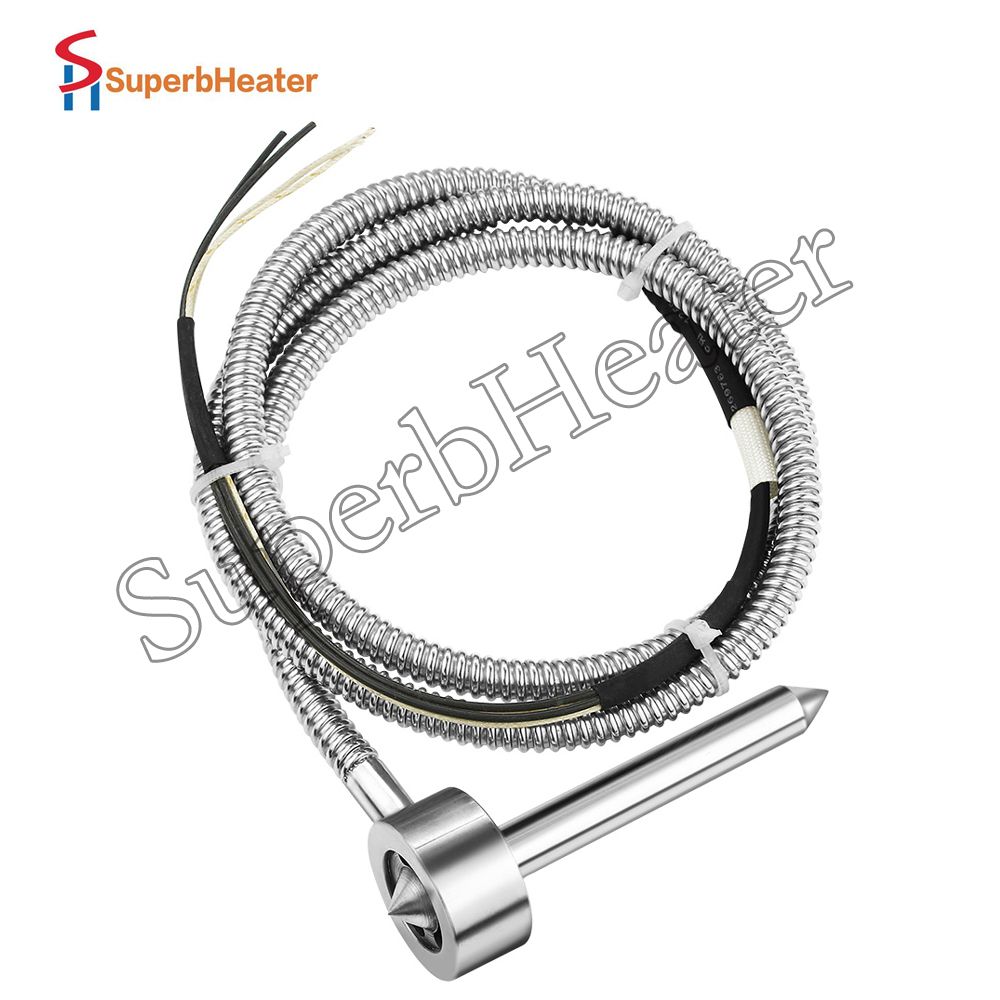

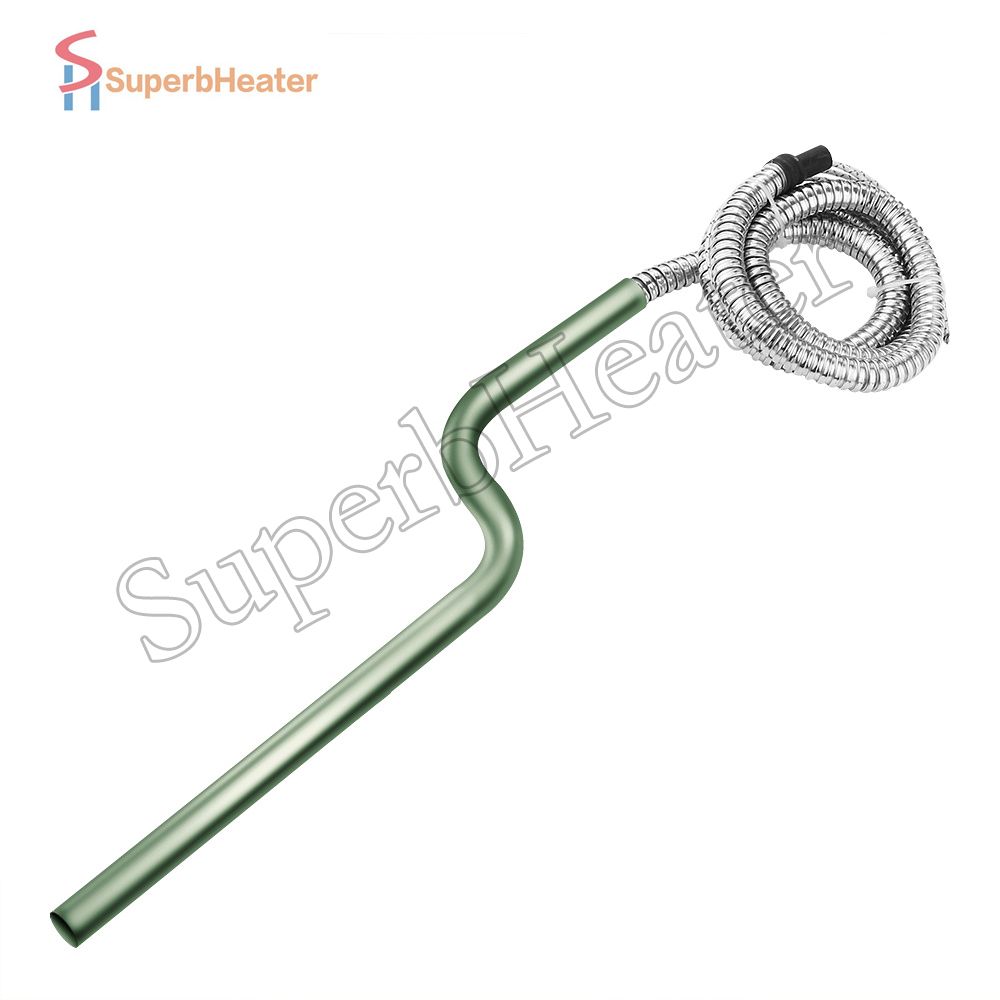

More Pic of Cartridge Heater:
