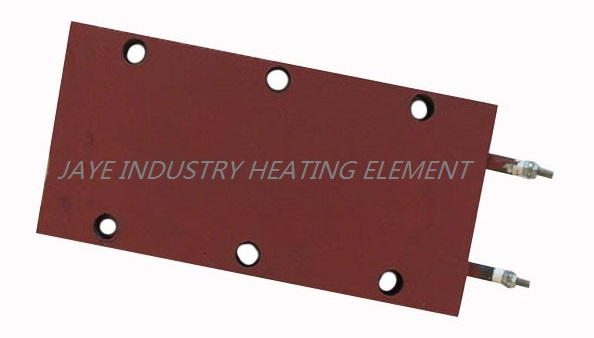

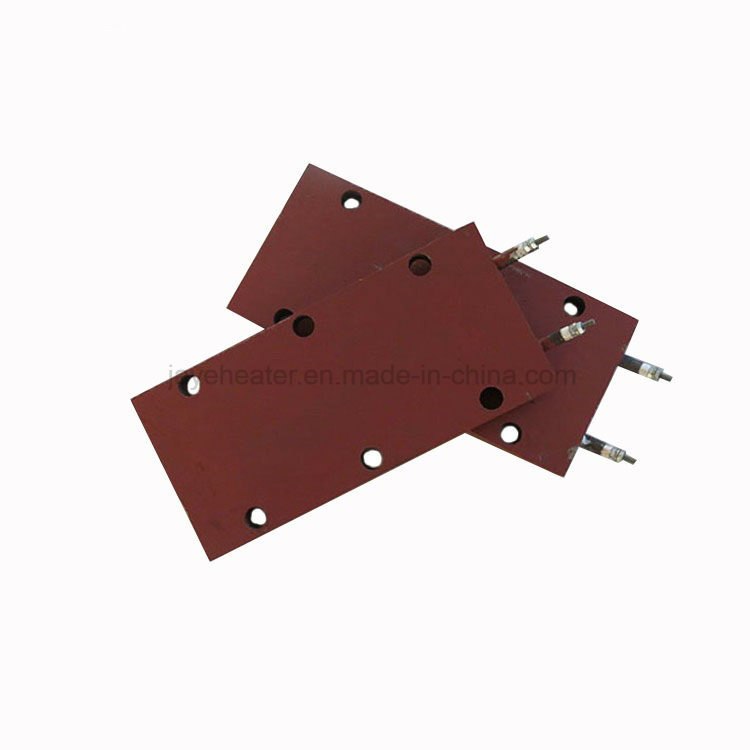

High Temperature Resistance Die Casting Iron Pate Heater

Name: High Temperature Resistance Die Casting Iron Pate Heater
Brand: all-electronics-online.com
SKU: 837599675
Availability: InStock
Rating: 4.4 (61 reviews)

Price:	US $ 5-20/Piece
Min Order:	5/Piece
Pay Type:	T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	JY-CSH026
Input Voltage:	100V-400V
Wattage Tolerance:	+5%, -10%

Product Description

Electric cast in heater
Iron Cast In Heaters are pressure casted insuring a dense porosity free casting that can been supplied with either cooling fins or seamless stainless steel cooling tubes that guarantee longer life.Iron Cast In Heaters can be casted into any shape and size needed, thus fully covering the part to be heated and virtually becoming the part itself. Most Cast In heat cool bands are made to customer specifications, but standard sizes are available out of stock.
Feature of customized Square casting iron heating plate
Surface load of casting aluminum : 2.5-4.5w/cm2,working temperature between 150-350°C.
Surface load to casting copper: 3.5-5.0w/cm2, working temperature between 150-450C.
Surface load to casting iron: 4.5-6.0w/cm2,working temperature between: 150-700°C

Features:
High operating temperatures
Liquid cooling or air-cooling fins
Any size or shape available
Pressure casted ensure porosity free high density casting
Extremely ruled and resistant to damage
Precise and accurate control of temperature due to heat cool action
High watt density available

Application of Casting iron heaters
1. Plastic Injection Molding Machines

2. Plastic Extruders
3. Oil Reclamation Equipment
4. Food and Candy Extruders
5. Drum Heating
6. Extrusion Dies
7. Holding Tanks
8. Blow Molding Machines
9. Vending Machines
10. Barrels & Heads
11. Food Service Warming
12. Autoclaves & Sterilizers
13. Metallurgical Analyzers
14. Fluidized Beds
15. Hot Runner Molds
16. Pulp and Paper Processing Equipment

Jaye industry Co., Ltd has been in the heating elements industry since 2009, and is one of the most trust worthy and professional supplier for various type of heating elements, spare parts and thermostats in China. Our products Mainly include the Home heating elements, industrial heating elements, Flexible silicone heating elements, spare parts and thermostats etc.

'Customization' mixed with the highest grade of material and workmanship is the kind of heater that JAYE industry will provide. This is where our reputation lies and we will continue to provide only the best products to our customers.
