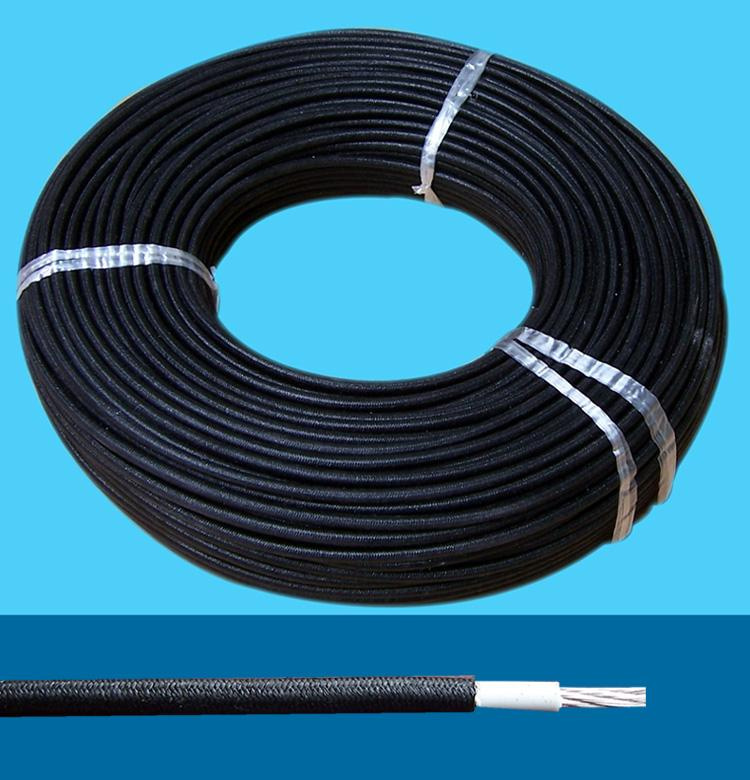

High Temperature Resistant Electrical Wire (UL5128)

Name: High Temperature Resistant Electrical Wire (UL5128)
Brand: all-electronics-online.com
SKU: 763423265
Availability: InStock
Rating: 4.5 (44 reviews)

Price:	US $ 1.23-8.79/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	3000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	UL5128
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Special Characteristic:	High Temperature Resistant
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Conductor Material:	Copper
Certification:	RoHS
Sheath Material:	Glass Fibre
Insulation Material:	Mica

Product Description

Nominal Voltage:300V
Temperature Range:450 ºC
Conductor:Nickel-plated Copper
Insuator:Mica
They are widely used for Home appliance,Haedlamp,Industrial machine,electro thermal products etc.

Conductor			Insulator			Packing
Size (AWG)	Conductor construction (NO*ømm)	Diameter (mm)	Glass Thickness(mm)	Jacket Thickness(mm)	Over Diameter(mm)	Mt/coils
24	7/0.20	0.61	≥0.381	0.178	≥1.75	305
22	7/0.25	0.77	≥0.381	0.178	≥1.90	305
20	7/0.31	0.94	≥0.381	0.178	≥2.10	305
18	16/0.254	1.19	≥0.381	0.178	≥2.30	305
16	26/0.254	1.49	≥0.381	0.178	≥2.60	305
14	41/0.254	1.87	≥0.381	0.178	≥3.00	305
12	65/0.254	2.36	≥0.508	0.381	≥4.15	200
10	35/0.45	3.06	≥0.508	0.381	≥4.85	100
8	67/0.40	3.75	≥0.508	0.381	≥5.55	100
6	266/0.254	4.75	≥0.508	0.381	≥6.55	100
4	420/0.254	6.02	≥0.508	0.381	≥7.80	100

DONGGUAN DEWEI WIRE Co., Ltd, established in 2004, specializes in manufacturing various kinds of silicone sleeve and electrical cable: Silicone rubber wire, FEP wire, PFA wire, PTFE wire, ETFE wire, heating wire, braided wire, power cable, twin flat cable, coaxical cable, high temperature cable and high voltage cable which can meet the requirements of UL, VDE, CCC.

Besides, we set up a wire processing workshop to provide customers with well processed wire group and wire harness of the batteries, the brushes, electric adjustment, steering gear, all kinds of JST, AMP connector, T-type plugs, banana plugs etc,

We set up and implement quality management system strictly according to international standard ISO9000, and had been awarded the certification of AMT ISO 9001: 2008 in 2009.

Our philosophy is quality-oriented, continuous innovative, reputation first and to treat our clients sincerely. In the meantime we persist in providing our customers with competitive high-quality products, creating a belief that quality decides the survival of the company.

Welcome to visit and give advice, let' S work together and create brilliant future.
