| Prod Model: |
AF250 |
| Size: |
From 0.035mm2, 0.05mm2....to 6.0mm2 |
| Color: |
Red, Blue, Green, Balck, Yellow, Orange, ...... |
| OEM: |
Yes |
| Produceing Experience: |
15 Years |
| Export Experience: |
Middle East,Southeast Asia,UK,France,Russia,USA, |
| Different Type Customized: |
Yes |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Equipment Appliance Internal,Aerospace Field,Elec |
| Insulation Material: |
Teflon |
| Certification: |
VDE |
| Conductor Material: |
Cu, Tinned Copper, Sliver Plated Copper |
| Sheath Material: |
Teflon |
| Range Of Application: |
High Temperaturue Wire, Flame Resistant |
| Brand: |
Verde |

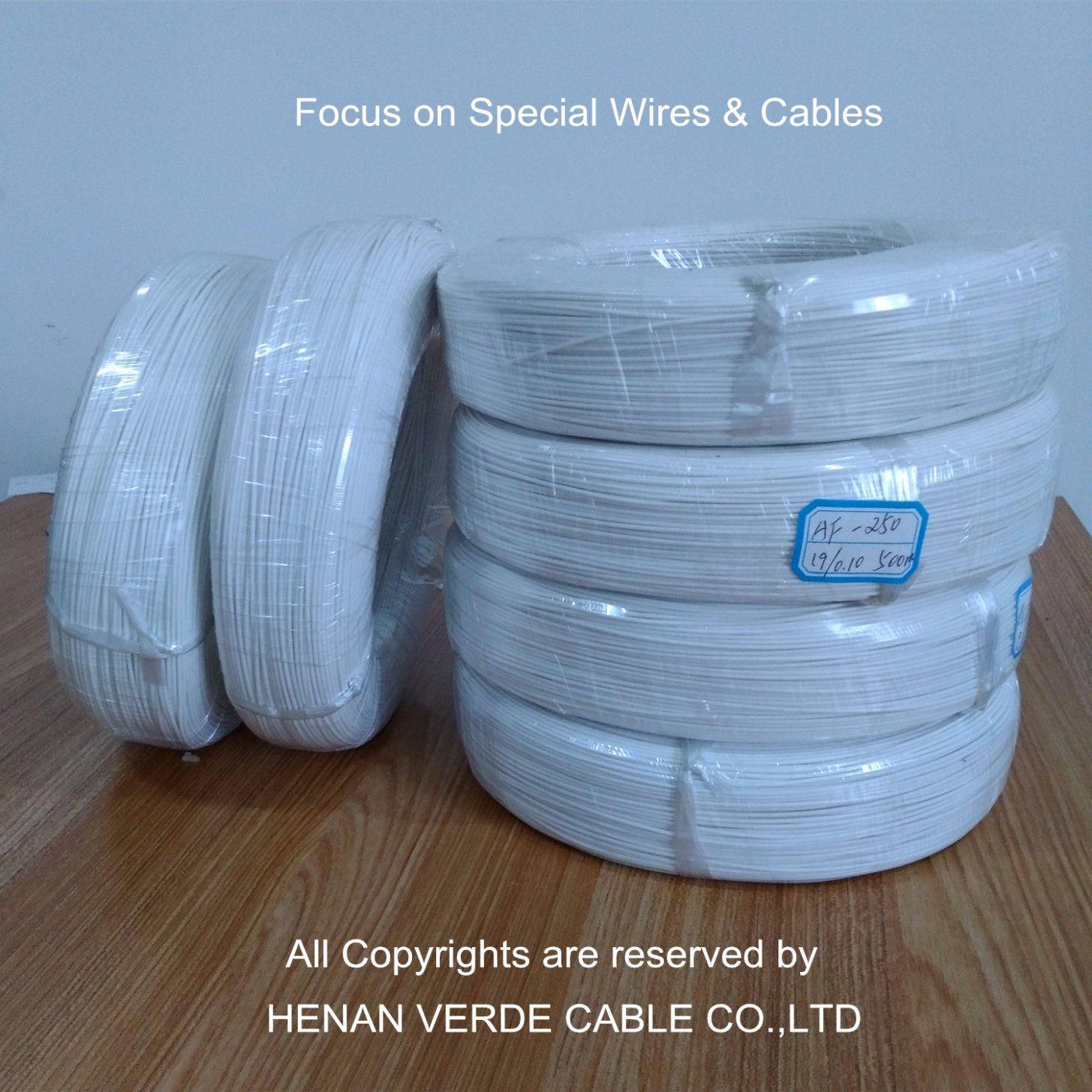

Product Description
High temperature Resistant Cable Teflon Coated Electric Wire with Military QualityDifferent specifications can be Customized according to your requirement.Application:
Aerospace field,Electronic industry, Internal wiring of electric motor,electric appliance,instrument with rated voltage 600V and below. It can be used in temperature compensating wire, low temperature-resist wire, high temperature heat wire, aging-resistance wire and fire-resist wire; household appliances industry, It can be used in air-conditioning equipment, micro-wave oven, electric disinfectant cupboard, electric cooker, electric thermos, electric heater, electric oven, lamps and lanterns in their inner wire and so on.
Product features:Good corrosion-resistance,almost doesn't melt any organic imp regnant,Oil-resistance,strong acid-resistance, strong alkali-resistance,oxidant-resistance and so on. bear the good electric insulated capability, high voltage-resist,moisture-resistance,high insulation resistance; flame-retardant, Anti-ageing, long age of usage
Rated voltage:600V and below
Test of power-frequency withstand voltage:3000V
Temperature range:-65~+200ºC
Conductor: tinned copper or silver-plated copper
Insulation: FEP
Color:red yellow blue green white black orange purple brown
Specification for AF200| Conductor Nominal Section(mm2) | Conductor Construction (No/mm) | Average.
Insulation Thickness
(mm) | Calculated.
Outer Diameter
(mm) | D.C. conductor resistance at 20ºC(Ω/km) |
| Tinned copper | Silver coated copper |
| 0.035 | 7/0.08 | 0.20 | 0.64 | 562 | 550 |
| 0.05 | 10/0.08 | 0.30 | 0.90 | 383 | 370 |
| 0.06 | 7/0.10 | 0.30 | 0.90 | 348 | 339 |
| 0.08 | 7/0.12 | 0.30 | 0.96 | 286 | 280 |
| 0.10 | 7/0.14 | 0.30 | 1.02 | 157 | 150 |
| 0.12 | 7/0.15 30/0.07 | 0.30 | 1.05 | 152 | 145 |
| 0.14 | 7/0.16 19/0.10 | 0.30 | 1.08 | 136 | 130 |
| 0.15 | 30/0.08 | 0.30 | 1.10 | 111 | 105 |
| 0.20 | 7/0.02 19/0.12 | 0.30 | 1.20 | 87 | 82 |
| 0.35 | 19/0.16 | 0.30 | 1.40 | 57 | 54 |
| 0.50 | 19/0.18 | 0.30 | 1.50 | 40 | 37.5 |
| 0.80 | 19/0.23 | 0.32 | 1.79 | 24 | 23 |
| 1.00 | 19/0.26 | 0.35 | 2.00 | 21 | 20 |
| 1.20 | 19/0.28 | 0.45 | 2.30 | 19 | 18 |
| 1.50 | 19/0.32 | 0.45 | 2.50 | 13 | 12 |
| 2.00 | 19/0.37 | 0.45 | 2.75 | 10 | 9 |
| 2.50 | 37/0.30 | 0.55 | 3.20 | 8 | 7 |
| 3.00 | 37/0.32 | 0.68 | 3.60 | 6.8 | 6.4 |
More Specifications can be CUSTOMIZED according to yoru requirement.

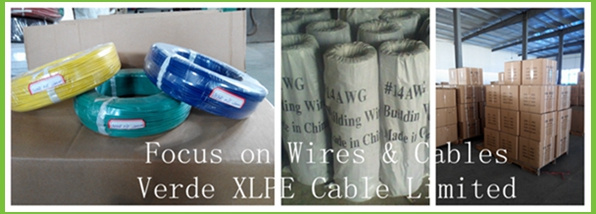

Packing:

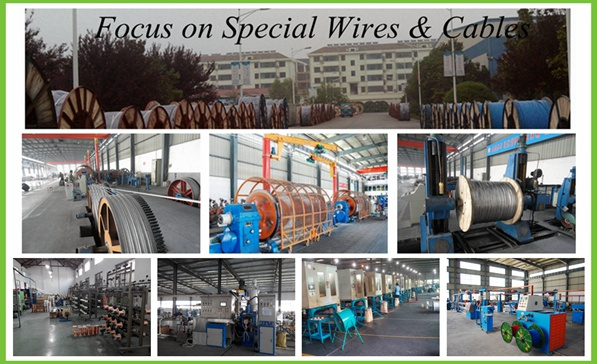

Our workshop View:
If you want to know more about us and our products,pls contact us.Linda LeeVice General ManagerVERDE XLPE CABLE LIMITEDTel:0086-371-55611184Mob:0086-13938400126
Focus on Special Wires and CablesBe Your Most Reliable Cable Supplier
Our factory was founded in 2000 year, we specialized at manufacture and export of wires and cables. The producuts we supplied as follows:
Overhead Conductor for Power Project including Power transimission and distribution, Power plant and Substation, Conductors include AAC, ACSR, ACAR, AAAC, ABC cable and Stay Wire.
Power Cable and Electrical Wires: Building Wires, PVC Cables, XLPE Cables, Nylon Coated Cable, STA and SWA Armored Cable, Flexible Cable, Earthing Cable. We have professional working team that focus on working on power plant and substation project, and electric power transmission line project.
We can also supply Rubber cable, including Welding cable, Silicone cable, EPR Rubber cable.
New Products Development: From last year our workshop build new productin line that specialize at produceing Special Cable including High Temperature cable, Heating Cable, Teflon wire, PTFE wire, ASTVR Wire, Flexible cable, Nylon Cable THHN, THWN, Data Cable such as CAT5e, Speaker Cable, Telephone Cable, Shielding cable.
We can produce as per the standard of IEC, BS, UL, ASTM, DIN, GB, GJB, and we can also customize the special cable accordin to the different requirements of clients. We have exported to Eastsouth Asia, Middle East, Austrlia, Russia, USA, UK, South America, and most countries of Africa. Building long term cooperatoin and supplying the most professional service is our dealing principle.
Profession and Quality is our Constant Pursuit. We aim to build long term cooperation with the customers.
Sincere and Credit to every Customer No Matter The Order is Small or Big. Waiting for more friends to send inquiry and visit us!
