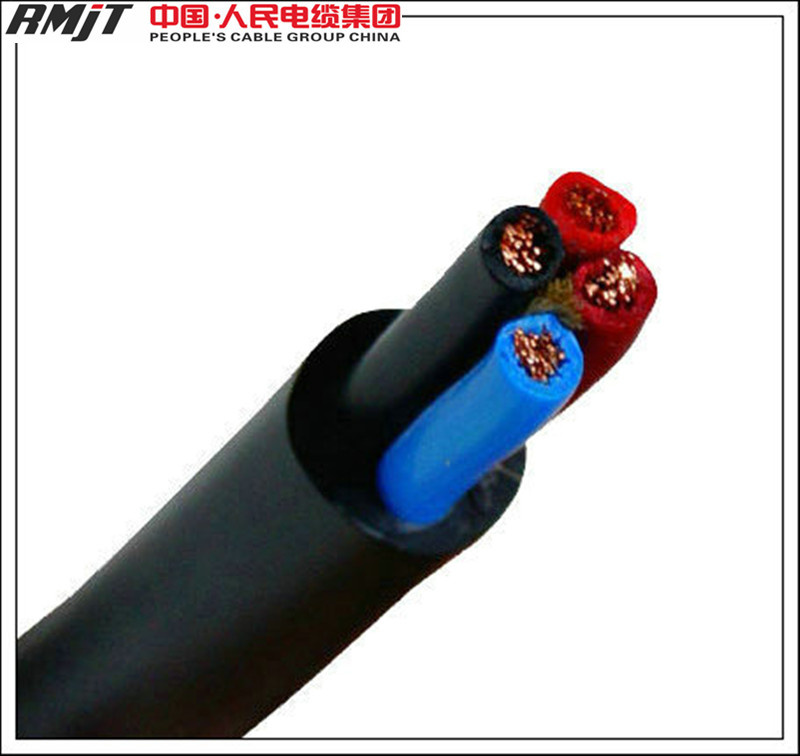

High Temperature Resistant Silicone Rubber Cable
| Price: |
US $ 0.2-0.9/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
Rubber |
| Color: |
Black/Orange/Red /Other |
| Code Name: |
Welding Cable |
| Temperature Range: |
-60~+200c |
| Type Name: |
H07rn-F ;H05rn-F |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Insulation Material: |
Silicone Rubber |
| Certification: |
CCC |
| Conductor Material: |
Copper or Aluminum |
| Sheath Material: |
Epr, PVC, PE,EPDM,CPE |
| Brand: |
Rmjt |
Product Description
High Temperature Resistant Silicone Rubber CableFeature1.Rubber welding cable
2.Rubber Insulated electric wire
3.CCC IEC Certification
Parameter1.Voltage Uo/U 450/750V
2.Max. Permissible Continuous Operation Temperature of The Conductor: 70°C
3.The Ambient Temperature Under Installation Should Not Below 0°C
4.Impedance (ohms): 100±2ohm
SpecificationType: YH YC YZ
Voltage: 300/500v 450/750v
Specification: Electric Wire 10mm2-185mm2 etc
Length: 100M 200M 300M 500M
ApplicationRubber welding cable are suitable for household electrical appliances, small electric power tools,
AC rated voltage up to and including 450/750V, and below the small household electrical appliances, electric tools,
instruments and apparatuses and lighting devices, which is used for connecting power line.
Detailed Product Description
1th. Service Conditions
This product is suitable for the welding machine whose voltage to the ground is not more than 200V and pulsating current value is 400V.
2th. Model, Names Main applications and Work In the Temperature
| Model | Name | Main applications | Working temperature
of core ≤0C |
| YH | Natural Rubber Sheath for Welding Cable | Always used indoor | 65 |
| YHF | Neoprene Rubber Sheath Welding Cable | Always used outdoor | 65 |
| Synthetic elastomer Sheath Welding Cable |
3th. Standards: IEC60245
4th. Specifications, Size, Weight and Technical Data
Conductor Nominal Section
(mm2) | Conductive Core | Thickness of Section
Sheath (mm) | Average Outer Diameter (mm2) | 20oC Conductor Resistance≤(Ω/km) | Reference
Weight(kg/km) |
| Number/Diameter of Core(mm) | Min | Max | YH | YHF |
| 10 | 322/0.20 | 1.8 | 7.5 | 9.7 | 1.91 | 146 | 153.51 |
| 16 | 513/0.20 | 2.0 | 9.2 | 11.5 | 1.16 | 218.9 | 230.44 |
| 25 | 798/0.20 | 2.0 | 10.5 | 13.0 | 0.758 | 316.6 | 331.15 |
| 35 | 1121/0.20 | 2.0 | 11.5 | 14.5 | 0.536 | 426 | 439.87 |
| 50 | 1596/0.20 | 2.2 | 13.5 | 17.0 | 0.379 | 592.47 | 610.55 |
| 70 | 2214/0.20 | 2.4 | 15.0 | 19.5 | 0.268 | 790 | 817.52 |
| 95 | 2997/0.20 | 2.6 | 17.0 | 22.0 | 0.198 | 1066.17 | 1102.97 |
| 120 | 1702/0.30 | 2.8 | 19.0 | 24.0 | 0.161 | 1348.25 | 1392.55 |
| 150 | 2135/0.30 | 3.0 | 21.0 | 27.0 | 0.129 | 1678.5 | 1698.72 |
| 185 | 1443/0.40 | 3.2 | 22.0 | 29.0 | 0.106 | 1983.8 | 2020.74 |

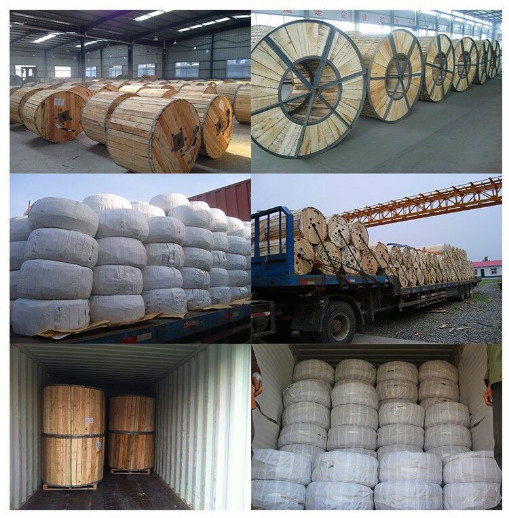

Packaging
About Us

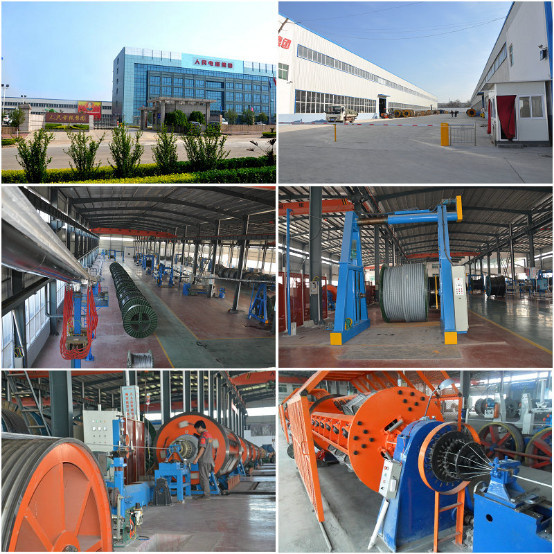

People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone.
Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
Certification
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
Customer Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years,
so that we can provide the comprehensive and professional technology for you.
With the perfect quality and after sales service, till now we have exported to more than 80 countries,
welcome to visit us and establish win-win establish relationship!
Our Service/Advantage
Excellent quality with reasonable price
Short lead time(10-15 work days)
Customized size and specification available
OEM/ODM service is available
Convenient transportation
Strong technical support (technical data, drawing, etc.)
Strict quality control system
Stock available, Free sample is available
Professional teamwork service for youRFQs:Q:What kind of products does People's Cable Croup manufacture?
A:(1)Aerial Bundled Cable: Duplex, Triplex, Quadruplex Service Drop Aluminum Conductor, etc.
(2)Bare Conductor: AAC, AAAC, ACSR,AACSR, ACAR, ACSR/AW, etc.
(3)Building Wire: Copper/Aluminum Conductor PVC/XLPE Insulated Electrical Wire, etc.
(4)Power Cable: Copper/Aluminum Conductor PVC/XLPE Insulated Steel Armoured Cable in Low,Medium,High Voltage, etc.
(5)Rubber Cable,Galvanized Steel Wire/Stranded, Welding Cable, Control Cable and so on.
Q:I didn't find the cable which I need in this page?
A:If you didn't find the species of cables you need, please contact us directly, we will reply you quickly.
Q:What's your minimum order quantity?
A:It is not so sure, you can confirm it with us. Normally, it will be 1000 meters.
Q:What's your delivery time?
A:It depends on whether we just has the stock for your type.Normally,it takes about 7-15days to achieve production.
Q:How can I get a sample from your company? Is the sample free?
A:If you need the sample to check the quality, please contact us, we will send you the free sample, but the freight charge should be paid.
Q:What if the cable which we need have some differences on specifications from yours?
A: Any difference, we can design and produce according to your requests, which include cable, color, material, processing requirement etc.
People's Cable Group Co., Ltd. Was founded in 2007, located in Zhengzhou Gongyi Economic development zone. In the east of ancient capital city LuoYang, north of the ShaoLin Temple, in south of the Yellow River. With good transport facilities which adjacent to the 310 National Highway and Lian Huo Expressway. In 2012, our group company set up a new factory in ZhuLin Town of Gongyi city which is specialized in transmission lines (AAC, AAAC, ACSR, ACSR/AW, AACSR, ACAR) for meeting the domestic and international market demand. Our company occupies total area of more than 160, 000 square meters, with building area 100, 000 square meters. The real capital assets more than USD 10 million, with total 500 staff members, 65 of which are professional and technical experts.
As one of top rank cable manufacturers in China. We are specialized in PVC building wire, PVC and XLPE insulation power cable with low, medium and high voltage up to 35KV, rubber, mining and welding cables, aerial bundled cable up to 10KV(ABC)cable, bare conductors such as: All aluminum conductor(AAC), All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor), Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW), All Aluminum Alloy Steel Reinforced(AACSR), and Aluminum Conductor Aluminum Alloy Reinforced(ACAR). We can produce cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, GOST, SABS and so on. Our company insisting"Based in Good Faith, In pursuit of perfection, Casting Excellent Products. "
With the perfect quality and after-sales service. Our products are very popular in domestic market, whatever in civil using and the government projects. For overseas market, till now we have expanded our market to south America like Chile, Colombia. Peru, Bolivia and so on. Euro-American market like U. S. A. Germany, Spain, U. K. Middle East, Africa, Southeast Asia, Mongolia and some other areas, As one of the first rank cable supplier in China, we have obtained ISO9001, ISO14001, ISO18001 and CCC certificates.
Through many years of unremitting effort and endeavors, we have achieved sound cooperation and a wide range of compliments from clients all over the world by superior quality, reasonable price and sincere services. Hereby we sincerely welcome you to contact us and visit our company.
