High Temperature Resistant Silk Coated Astvr Electrical Wire

Name: High Temperature Resistant Silk Coated Astvr Electrical Wire
Brand: all-electronics-online.com
SKU: 698711452
Availability: InStock
Rating: 4.3 (101 reviews)

Price:	US $ 0.02-1.5/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Southeast Asia,Mid East,Western Europe
Size:	From 0.02mm2, 0.035mm2...0.05.to 6.0mm2
Color:	Red, Blue, Green, Balck, Yellow, Orange, ......
Produceing Experience:	15 Years
OEM:	Yes
Type:	Insulated
Conductor Type:	Stranded
Application:	Iinterconnector of Equipment and Instrument.
Certification:	UL
Conductor Material:	Cu, Tinned Copper, Sliver Plated Copper
Insulation Material:	Silk
Range Of Application:	Interconnec,High Temperaturue Wire Flame Resistant

Product Description

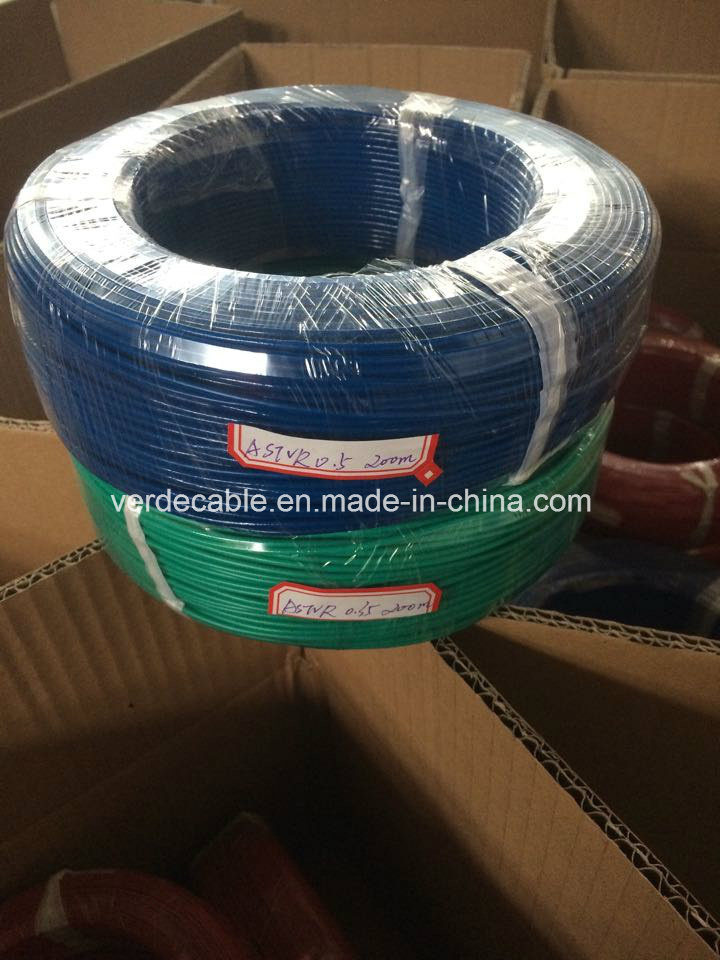

Silk coated Electrical Wiring ASTVR Electrical Wire

Focus on Wires &Cables field
More than 15 years produceing Experience.
Different Specifications can be Customized as per your requirement.

Application:
ASTVR and ASTVRP is mainly used for electric appliance equipment, interconnector of equipment and instrument. It has the good character of Anti-interference, oil resistance,
anti-corrosion, anti-aging and so on.

Structure:
Copper, tinned copper Conductor with Silk and PVC insulation, or with braided Screen

Color:
Black, white, red, green, blue, yellow, orange, purple, brown, and so on.

Voltage:
300/500V and below

Working temperature:
-20ºC-75ºC Max.105ºC

Area	Structure	Max.OD (mm)		Conductor resistance at 20ºC	Insulation resistance at 70ºC	Calculated weight Kg/km
mm2	Stranding Nos/dia. per wire	ASTVR	ASTVRP	≤Ω/km	≥MΩ·m	ASTVR	ASTVRP
0.06	7/0.1	1.5	1.9	384	17	2.1	6.0
0.1	12/0.1	1.6	2.0	214	17	2.8	7.2
0.12	7/0.15	1.8	2.2	163	16	3.1	7.5
0.14	7/0.16	1.9	2.3	143	16	3.4	7.9
0.2	7/0.2	2.0	2.4	95.0	14	4.4	9.3
0.3	16/0.15	2.1	2.5	71.2	14	5.4	10.7
0.35	20/0.15	2.1	2.5	57.0	12	6.2	11.6
0.4	23/0.15	2.3	2.7	49.6	12	7.2	13.0
0.5	16/0.2	2.5	2.9	40.1	12	9.3	15.8
0.75	24/0.2	2.7	3.1	26.7	10	12.7	20.0
1.0	32/0.2	2.9	3.4	20.0	10	17.0	25.4
1.5	30/0.25	3.2	3.9	13.7	9	23.1	37.3
2.0	49/0.23	3.5	4.1	10	9	27	41
2.5	49/0.25	3.8	4.4	8.21	8	34	50

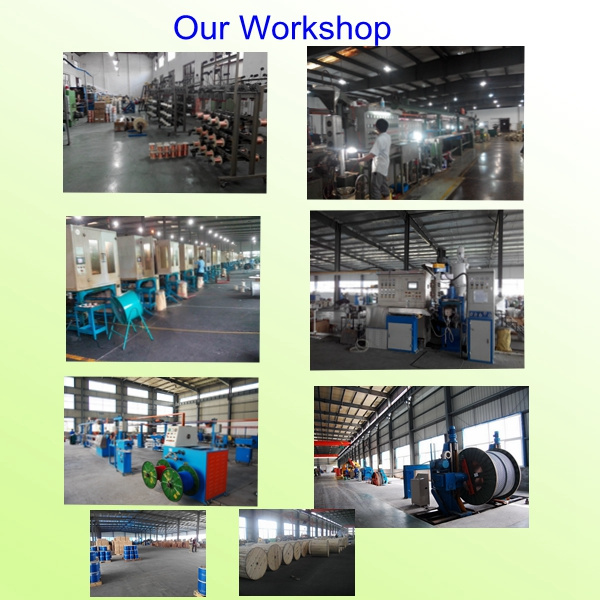

Our factory was founded in 2000 year, we specialized at manufacture and export of wires and cables. The producuts we supplied as follows:

Overhead Conductor for Power Project including Power transimission and distribution, Power plant and Substation, Conductors include AAC, ACSR, ACAR, AAAC, ABC cable and Stay Wire.

Power Cable and Electrical Wires: Building Wires, PVC Cables, XLPE Cables, Nylon Coated Cable, STA and SWA Armored Cable, Flexible Cable, Earthing Cable. We have professional working team that focus on working on power plant and substation project, and electric power transmission line project.

We can also supply Rubber cable, including Welding cable, Silicone cable, EPR Rubber cable.

New Products Development: From last year our workshop build new productin line that specialize at produceing Special Cable including High Temperature cable, Heating Cable, Teflon wire, PTFE wire, ASTVR Wire, Flexible cable, Nylon Cable THHN, THWN, Data Cable such as CAT5e, Speaker Cable, Telephone Cable, Shielding cable.

We can produce as per the standard of IEC, BS, UL, ASTM, DIN, GB, GJB, and we can also customize the special cable accordin to the different requirements of clients. We have exported to Eastsouth Asia, Middle East, Austrlia, Russia, USA, UK, South America, and most countries of Africa. Building long term cooperatoin and supplying the most professional service is our dealing principle.

Profession and Quality is our Constant Pursuit. We aim to build long term cooperation with the customers.

Sincere and Credit to every Customer No Matter The Order is Small or Big. Waiting for more friends to send inquiry and visit us!
