High Temperature Sensor M12

Name: High Temperature Sensor M12
Brand: all-electronics-online.com
SKU: 684418811
Availability: InStock
Rating: 5 (142 reviews)

Price:	Negotiable/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Material:	Nickel-Copper Alloy
Protection Degree:	IP 67
Standard:	Standard
Certification:	CE
Type:	Inductive Proximity Switch
Principle:	Inductive
Wires:	NPN/PNP 3 Wire
Application:	Position Sensor

Product Description

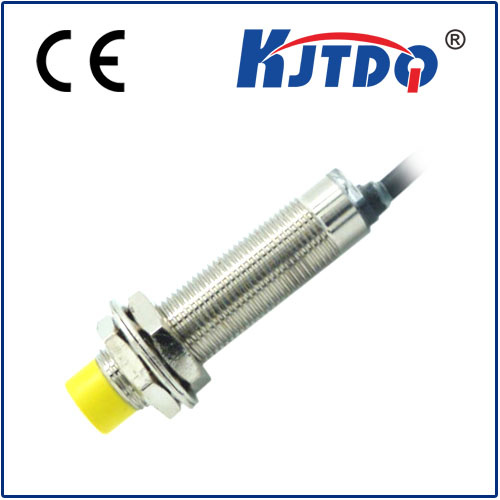

KJT-M12 High temperature Sensor/ inductive proximity switch

Detailed Product Description

Mounting	F NF
SN	2mm 4mm
Power supply	10-30V DC/90-250VAC
Housing size	M1251 M1259
Thread size	M12143

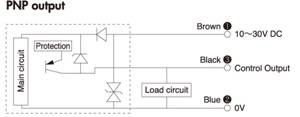

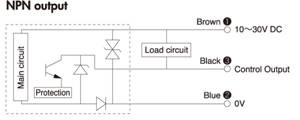

Output	NPN/PNP NO/NC
Temperature drift	≤±10%
Hysteresis	1…20%
Repeat accuracy	≤3%
Load current	≤200mA
Residual voltage	≤2.5V
Consumption current	≤10mA
Protection circuit	surge, overload, short-circuit, reverse polarity
Indicator	Yellow LED
Ambient temp.	-25…120ºC
Ambient RH	35-95%
Frequency	1500Hz 1000Hz /AC 30Hz
Protection degree	IP67
Housing material	Nickel plated brass
Connection	PUR Cable 2m

Features:

1) Shape code: Cylindrical

2) Housing material: Stainless steel

3) Connection: 2m PVC cable, M12 connector

4) Ambient temp.: -25~+70C.

5) Power display: None.

6) Ingress Protection Rating: IP67.

Dust completely unable to enter object.

No damage happens when housing immerses in water under designated hydraulic pressure.

7) Non-contact detection. Effectively avoids abradion, safe and reliable. Rarely abrasive wear.

8) Built-in ASLC ensures quick response, high frequency, stable performance.

9) Complete range of specification: Cylinder series: 1.5mm

10) Surge and reverse polarity protection
