High Temperature Sensor-M30

Name: High Temperature Sensor-M30
Brand: all-electronics-online.com
SKU: 684418591
Availability: InStock
Rating: 5 (119 reviews)

Price:	Negotiable/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Material:	Stainless Steel
Voltage Type:	DC Voltage
Protection Degree:	IP 67
Output Signal Type:	Digital Type
Standard:	Standard
Certification:	CE
Type:	Inductive Proximity Switch
Principle:	Inductive
Wires:	NPN/PNP 3 Wire
Application:	Position Sensor

Product Description

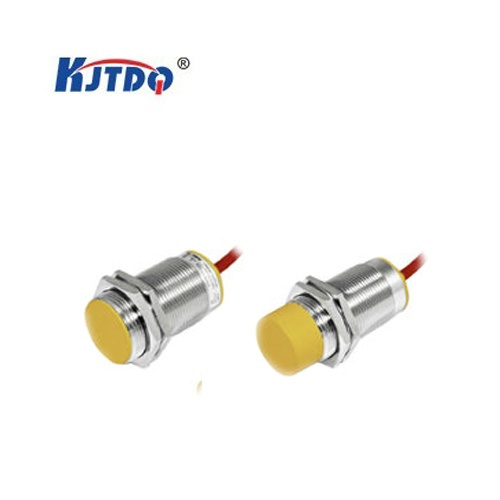

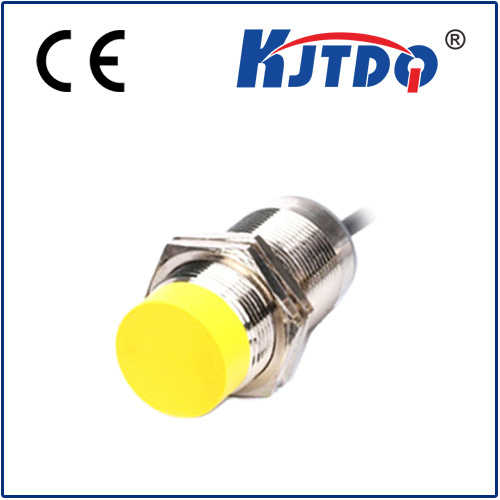

KJT-M30 High temperature sensor/ inductive proximity switch

Detailed Product Description :

Mounting	F NF
SN	10mm 15mm
Power supply	10-30VDC/90-250VAC
Housing size	M3043 M3055
Thread size	M301.543

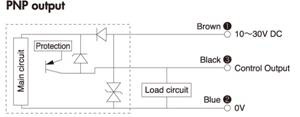

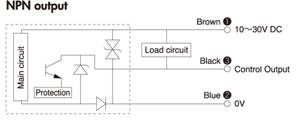

Output	NPN/PNP NO/NC
Temperature drift	≤±10%
Hysteresis	1…20%
Repeat accuracy	≤3%
Load current	≤200mA
Residual voltage	≤2.5V
Consumption current	≤10mA
Protection circuit	surge, overload, short-circuit, reverse polarity
Indicator	Yellow LED
Ambient temp.	-25…120ºC
Ambient RH	35-95%
Frequency	500 Hz 300 Hz
Protection degree	IP67
Housing material	Nickel plated brass
Connection	PUR Cable 2m

Features:

1) Shape code: Cylindrical

2) Housing material: Stainless steel

3) Connection: 2m PVC cable, M12 connector

4) Ambient temp.: -25~+70C.

5) Power display: None.

6) Ingress Protection Rating: IP67.

Dust completely unable to enter object.

No damage happens when housing immerses in water under designated hydraulic pressure.

7) Non-contact detection. Effectively avoids abradion, safe and reliable. Rarely abrasive wear.

8) Built-in ASLC ensures quick response, high frequency, stable performance.

9) Complete range of specification: Cylinder series: 1.5mm

10) Surge and reverse polarity protection

Nanjing KJT Electric Co., Ltd. is a professional manufacturer in the field of sensors and industrial switches, Our high-tech products are widely used in the industrial mechanical equipment and automatic assembly lines for transportation, plastic, metallurgy, chemistry, textile, tobacco, food, printing and so on, with properties of location check, signal transmission, automatic counting and velocimetry.

Including automation and instrumentation division. Owning an outstanding R&D team who focus on core technique and devote themselves to development and innovation, we provide our esteemed customers with All-In-One solutions. We believe that the only way to offer the best industrial control system for customers is to be a total solution provider. Through our enterprise concept, we can make our customers reduce the cost of operation, enhance the efficiency of work, and increase the quality and plus the extra value of products. There are over 8, 000 customers in all industries worldwide. Our qualified products can successfully be used in worse environment with long life-time.
