High Thermal Conductive with Silicone Pad Thermal Insulation Sheet

Name: High Thermal Conductive with Silicone Pad Thermal Insulation Sheet
Brand: all-electronics-online.com
SKU: 799358385
Availability: InStock
Rating: 4.5 (64 reviews)

Price:	Negotiable/Piece
Min Order:	500/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	silicone sheet
Use Temperature:	-50ºC~200ºC
Thickness:	0.25~15mm
Hardness:	50+-5
Application:	High Thermal Conductive
Type:	Insulation Tape
Chemistry:	Organic Insulation
Material:	Silicone
Maximum Voltage:	<10KV
Thermal Rating:	200~300ºC
Color:	Grey,Yellow,Red,Black
Brand:	Jrft

Product Description

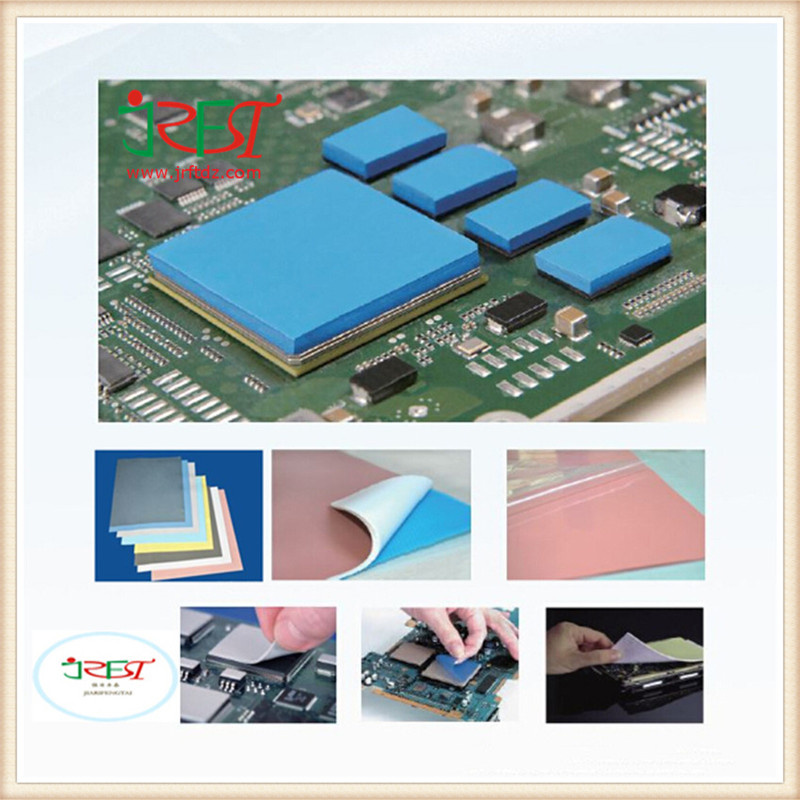

LED Lamp Silicone Rubber Thermal Insulation Pad

Product Description

JRF-PM150 has excellent thermal conductivity and electrical insulation performance. Not only can satisfy the majority of electronic product thermal insulation requirements, but also widely used in the thermal requirements that are not too high in electronic products. With the heat conduction performance, stable and the product also has the viscosity, easy to use.

JRF-PM150 by using the heat conduction, soft silicone heat-conducting material stable insulation performance characteristics and soft and elastic, good contact is arranged between the heating device and the heat radiating member, which achieve heat transfer and insulation effect.

Applications:
1.LED lighting, lighting equipment
2.Household appliances, LCD display
3.Semiconductor and the radiating fin between
4.Communication product, intelligent mobile phone, tablet computer
5.Desktop computer, notebook and other portable computer
6.Large power supply etc.

Performance and characteristics:
1.High thermal conductivity, heat transfer coefficient 1.5W/m-k
2.Stable performance, low thermal resistance, effectively improve the heat transfer rate
3.Low hardness, its viscosity, easy to use and high degree of bonding
4.By UL and V-O certification standards

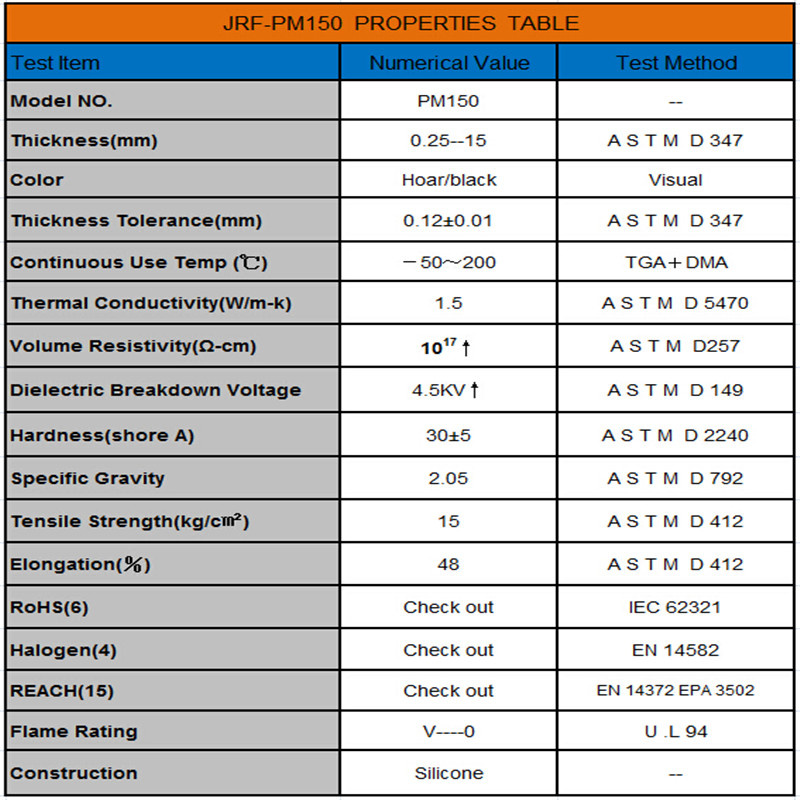

Specification:
Standard size 200mm*400mm , 310mm*310mm according to customer needs cutting type.

Basic thickness 0.25mm*15mm thickness, special thickness size can be customized

Itself slightly viscous, if need to strengthen the adhesive can be according to customer's requirement

Product color is mass produce color , special color you need, we can adjust according to the actual situation .

Contact ways:

Mobile:+86 13430438515

website: www.jrftdz.com

Address: 3th Floor,Block 2,Yinghe industrial Zone,Dalang Village,LongHua new District,ShenZhen City,China

Shenzhen City Jia Rifeng Tai Electronic Technology Co., Ltd. Was founded in 2010, a total investment of more than 1000000 RMB. Jia RiFeng Tai is a professional committed to the domestic and foreign electronic thermal insulation materials of high-tech enterprises.

Our Main Products: Thermal conductive filler material, like thermal gap pad, insulator silicone sheet, insulator silicone sleeve, ACF conductive film, thermal silicone heating, thermal double-sided tape, thermal graphite, thermal silicone encapsulants, thermal grease / paste, alumina ceramic, Aln ceramic, zirconia ceramic, Sic ceramic, NFC Ferrite sheet, EMI absorber sheet, thermal phase change material, silicone rubber (Fujipoly), Bergquist thermal conductive material K4, K6, K10 insulation gap pad.

Products are widely used in power supply, LED lighting, electric welding machine, notebook computer, LED decorative lighting, set-top box, high power supply and other industries. At present, the company has passed ISO 9001, RoHS and UL certifications.

High quality, good price, delivery on time and sincere service are our value and promises to our customer. As an enterprise, we are confident enough to present competitive products to severe competition. If you are interested in our products, please do not hesitate to contact us.
