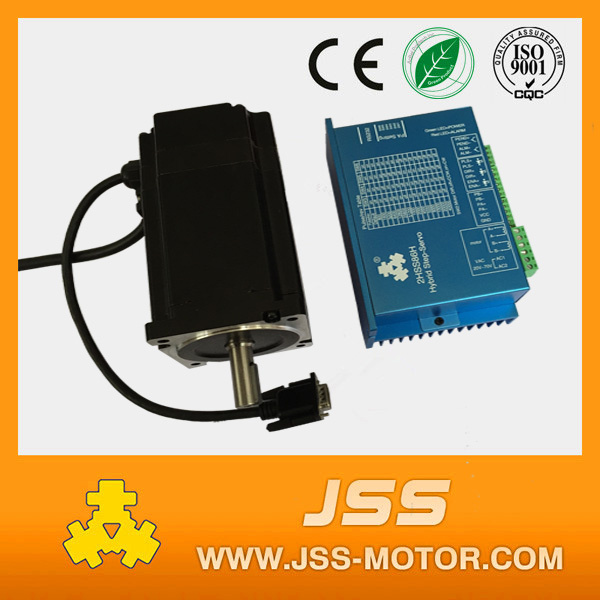

High Torque NEMA 34 Motor Closed Loop Stepper

High Torque NEMA 34 Motor Closed Loop Stepper
Price: US $ 73.50-88.50/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: 86HSE12N-BC38
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Step Angle: 1.8
Frame Size: 86mm*86mm
Current: 6.0A
Resistance: 0.45ohm
Inductance: 5.2mh
Holding Torque: 12n.M
Motor Body Length: 173mm
Encoder Line: 1000PPR
Lead Wires: 4
Number Of Stator: Two-Phase
Excitation Mode: HB-Hybrid
Type: Magnetic-Electric
Application: Automatic Machine
Operate Mode: Driver
Certification: CE
Brand: Jss

Product Description


Our stepper motors are widely used in stage lighting control, security surveillance, home appliance, video equipment, laserworkstation, carving machine, automotive, office automation, smart toy, digital controlled machinery and medical instrument.

High torque nema 34 motor closed loop stepper

Product Description:

nema 34 easy-servo hybrid model :


Series
Model Step AngleCurrentResistanceInductanceHolding TorqueLength
A±10% Ω±20% mHN.Mmm
nema23DW57HSE2N-D251.8°40.51.8276
nema24DW60HSE3N-D2550.451.8388
nema34DW86HSE4N-BC3860.453.7482
DW86HSE8N-BC380.443.78118
DW86HSE12N-BC380.455.212156




We produce stepper motor from nema 8 to nema 42, and suitable drivers for all these motors.
And We also produce linear stepper motor, gearbox stepper motor, stepper motor with brake,  drivers for all the motors, and closed loop stepper motors and drivers.  We also have accessories such as power supplys, spindles and inverters, breakout board, TB6560 driver board, timing pulleys and so on.


Our contact information:

Changzhou Jinsanshi Mechatonics Co.,Ltd

Contact Person : Christal
Tel:86-519-86922120

More Quantity . More Discount !!!
Jinsanshi Mechatronics co. Ltd. Is a comprehensive company which specilizes in producing and researching stepper and motor driver. Our company is located in Changzhou city, Jiangsu province, China. We own an excellent group with rich experience in manufacturing and researching. In this field, we have rich experience, so that we can solve the actual using problems for customers. Our products are highly commended by customers because of its easy operation, long using life, stable performance, low failure rate and high technical content.

Our products are widely applied in printing equipment, engraving machine textile machine, computer external application equipment, medical instruments, stage light equipment, robot, NC machine tool and other automatic controlling system. Our main products include stepper motor from NEMA 8 to NEMA 42, geared stepper motors, lead screw motors, stepper motor with brake, drivers for all the motors. We also produce closed loop steppers and drivers.

On the way of development, the principle of "efficiency is the life, quality is the fundamental" is always insisted by Jinsanshi people. We take the market as the guidance, provide high quality products and good service to customers. We are expecting the cooperation with more friends from home and aboard in the near future.
