High Torque Oil Drilling Machine DC Motor
| Price: |
US $ 30000-40000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |
| Prod Model: |
YZ08, YZ08A |
| Insulation Class: |
H |
| Mounting: |
Imb3 (Im1001), Horizontal, Foot Mounted |
| Anti-Condensation Space Heater: |
Included |
| Enclosure Protection: |
IP44 |
| Terminal Box: |
IP54, Explosion-Proof |
| Cooling: |
Forced Air Cooled by Indepenent Cooling Fan |
| Bearing Brand: |
World Most Famous "SKF" Brand |
| Bearing Type: |
Rolling Bearing |
| Rotation: |
Bi-Direction |
| Paint: |
Anti-Corrosion,Anti-Moisture,Anti-High Temperature |
| Application: |
Industrial |
| Operating Speed: |
Adjust Speed |
| Excitation Mode: |
Shunt |
| Structure And Working Principle: |
Brush |
| Type: |
Yz |
| Brand: |
China Electric |
Product Description
High torque oil drilling machine DC motor
Specification:YZ08 and YZ08A high torque oil drilling machine DC motors are high power series excited DC motor developed for electric drive oil drilling machine. The international adva -nced technology has been adopted in it such as Kapton insulation process, main pole coils formed by hot pressing, pressed and welded frame, spiral slot of commutator, reacting brush holder, wire banding etc. The main features of the motors are as follows: plus pressure explosion-proof, high current, large torque, wide range constant power speed regulating, free maintenance, high universality, efficiency and reliability. Their outline installation dimension is strictly in accordance with that of imported DC oil drilling motor. The oil drilling motor can be used instead of the imported one.
Facing from the driving end, the terminal out of YZ08 is on the right side, and from YZ08A is on the left side.
Application:High torque oil drilling machine DC motors can function as slurry pump motor, rotary table motor and winch motor of DC electric drive drilling machine.
Parameter
for High torque oil drilling machine DC motor:Rated power: 800Kw
Rated voltage: 750V
Rated current: 1150A
Rated rotating speed: 970r/min
Rated efficiency: 93%
Rated torque: 8033.7N.m
Max.current: 1600A
Max.torque: 12206.4N.m
Max.rotating speed: 1500r/min
Exciting: series
Insulation class: H/H
Cooling: Forced air
Protection class: plus pressure explosion-proof
Mass: 3200Kg

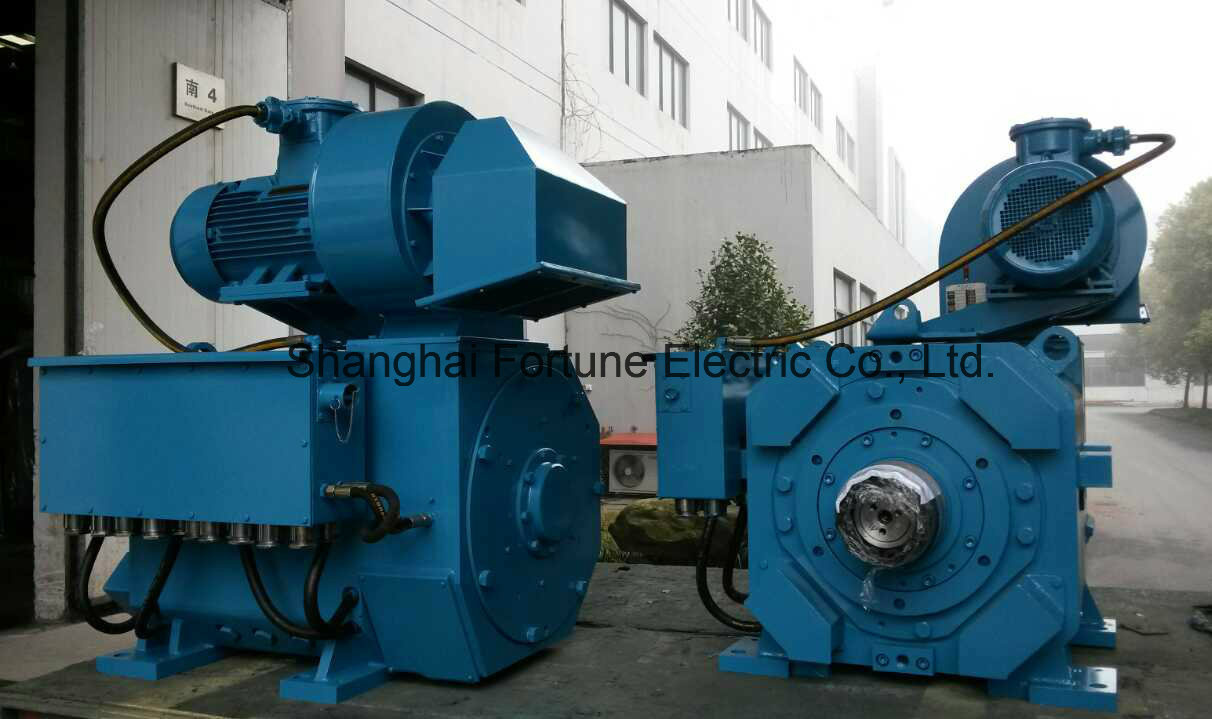

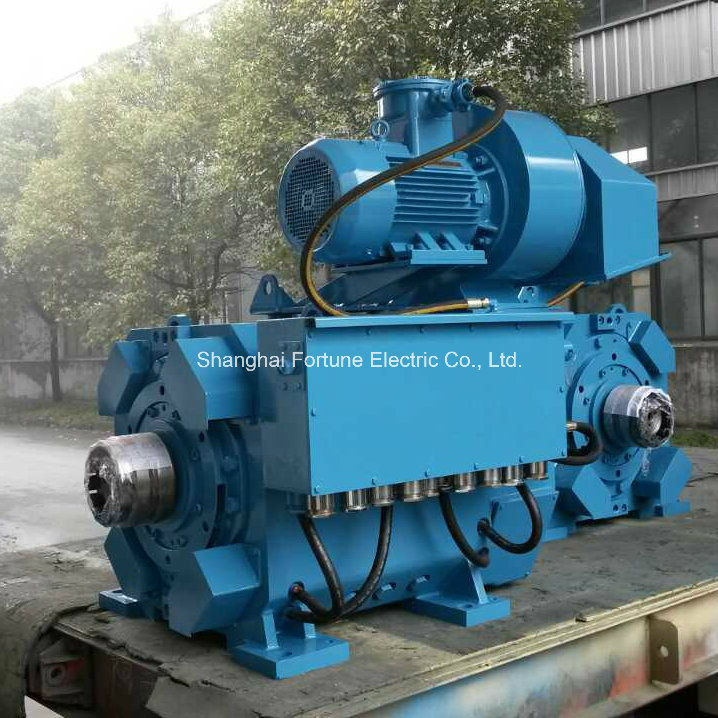

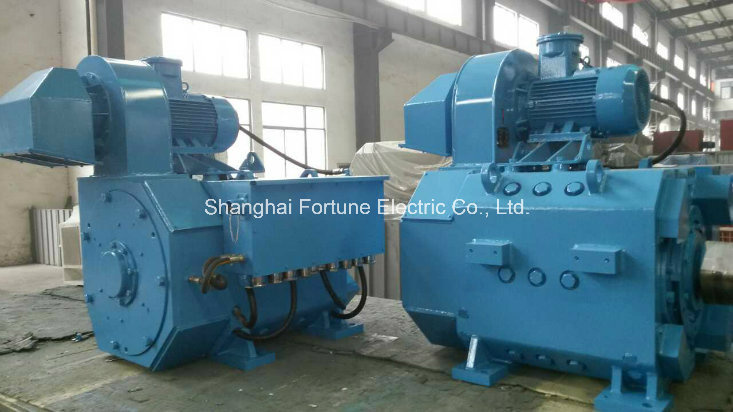

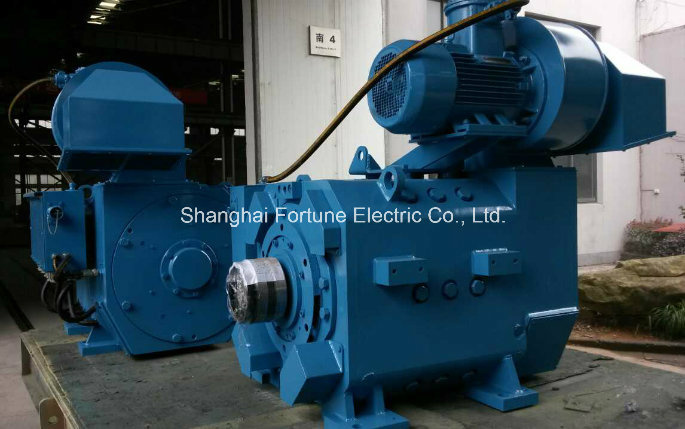

Some pictures for
High torque oil drilling machine DC motors:
