| Prod Model: |
CYECT-110kV |
| Rated Voltage: |
110kv/126/200/450kv |
| Rated Current: |
50-3150A |
| Frequency: |
50/60Hz |
| Altitude: |
1000m/ 2000m/ 3000m/ 4000m |
| Insulation Type: |
Silicone Rubber |
| Application: |
Switchgear |
| Type: |
Current Transformer |
| Phase: |
Single |
Product Description
Description:

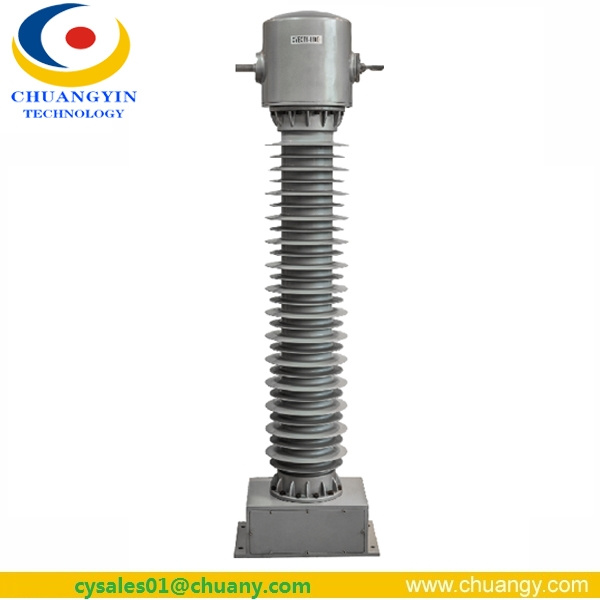

110kv electronic current transformers the products accord with standard IEC60044-8, I EC61850-9 IEC61689-1&2, digital output can expediently match with electric instrument, digital measure and protective equipment, and can meet customer's other special requirement.
Main Technical Parameter:
1.Rated primary voltage:110 kV
2.Rated primary current:50-3150A
3.Rated digital output:0x2D41(measure)
0x01 CF(protection)
4.Accuracy for measuring winding:0.2
5.Accuracy for protection winding:5TPE/5P20-50
6.Rated insulation level:126/200/450kV
7.Rated short time thermal current:50-200:1501pr,300-2000A :31.5kA/1 S
8.Rated dynamic current:50-200A:3751pr,300-2000A:8OkA
9.Ambient temperature:-25ºC-50ºC
10.Ambient humidity:≤RH95%(25t)
11.Altitude:≤2000m(Can devise according customer's requirement)
12.Installation site:outdoor
Note:
The above parameter is only for reference as typical data, customer-made is subject to customers' request.
Please contact us for more information
SHENZHEN CHUANGYIN TECHNOLOGY CO., LTD.
( CY Group )
Certification: KEMA, ISO9001, UL, SGS, CE.
( Your reliable partner for power transformer, instrument transformer, CT,PT (up to 72.5KV) ,Cable accessories, Split core CT, Rogowski Coil , Latching Relay, Flx-core CT, Switchgear,Distribution Rransformer )
Arvin Q.
Business Development Executive
Mob: +86 13925284622
Address: 1st Floor, Building B, Jiada R&D Building, No.5 Songpingshan Rd., Shenzhen High-Tech Zones, Nanshan, Shenzhen, China,
Post code: 518057
Tel: +86 0755-86000716/ 86007806
Fax: +86 0755-86000614
Web: www.chuangy.com
A 110 kV electronic-optical current transformer (EOCT) was described. Compared with the conventional current transformer, the EOCT has high accuracy, low cost, small size, wide bandwidth, excellent dynamic characteristics and immunity from electromagnetic interference. The EOCT was tested and has an accuracy of ±0.2%.
To solve the problems of exorbitance of partial electric field and the non-uniform electric field,this paper simulated electric field distribution of an electric current transformer by using the software package of Ansoft,which was based on the finite element model.The electric field distribution graph,the maximum electric field intensity and its position,the distribution curve of the typical position were obtained by calculating and analyzing the electric field of the electronic current transformer(ECT).By comparing the maximum electric field intensity of different schemes,the optimal insulation design scheme was determined.On the basis of this,six 35 kV electronic current transformers have been developed and tested.The results show that the two scheme's transformer insulation level could satisfy the requirement of the relevant standards.Also,the partial discharge of the chamfered electronic current transformers is much smaller than 20 pC limits requirements.
