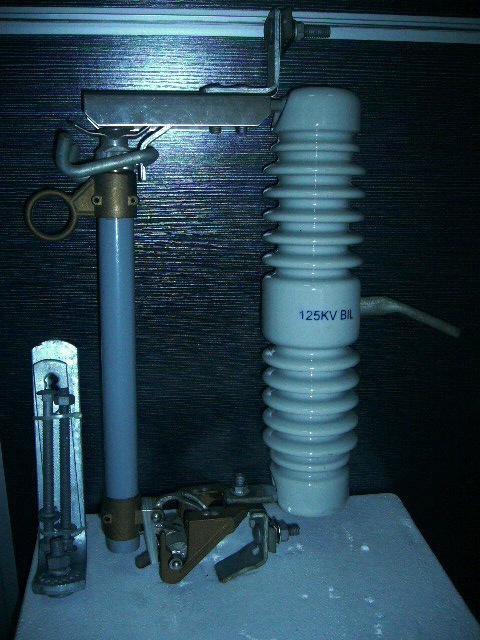

High Voltage 12kv 15 Kv Cutout Fuse / Dropout Fuse

Name: High Voltage 12kv 15 Kv Cutout Fuse / Dropout Fuse
Brand: all-electronics-online.com
SKU: 753295045
Availability: InStock
Rating: 4.9 (94 reviews)

Price:	US $ 20/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HQF-103
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Porcelain,Brass,Steel
Brand:	Cowinelec, OEM,ODM
Size Of Fuse:	Hv Fuse Link
Usage:	Electrical Power System
Installation:	with NEMA Bracket

Product Description

Professinal for Cutout Fuse, Safe quality, Best price, quick delivery time
12/15kV
15/27kV
24/27kV
33/36kV
100A and 200A

12-15KV Porcelain Cutout fuse
High Voltage Cut Out Fuse / Dropout Fuse

Dropout fuse cutouts and load switching fuse cutouts are for outdoor used high voltage protective device. To be connected with in coming feeder of distributing transformer or distribution lines. It mainly protect transfeormer or lines from short circuit and overload, and on/off loading current.Drop out fuse cutout is composed of insulator supports and fuse tube, static contacts are fixed on two sides of insulator support and moving contact is installed on two ends of fuse tube. Fuse tube is composed of inside arc-exting tube, outer phenolic compound paper tube or epoxy glass tube.Load switch fuse cutout provides enforced elastic auxiliary contacts and arc-extinguishing enclosure for switching on/off loading current.

In the normanl working, the fuse tube is formed up of close position via the fuse link tightened. In case the system occur faults, faut current results in fuse melt immediately and forms electric arc, which let arc-extinguishing tube be heated and explode a lot of gas. Those will produce high pressure and blow off the arc along with tube immediately. After fuse link melt, the moving contact drops out without tightened strength, mechanism is locked and fuse tube drop out, then form a distinct open position. When it needs to disconnect in loading, the operator shall pull the moving contact via insulating operating bar. At the moment, the main contact and auxiliary static contact are still contacted. Be continued to pull the contact, then the auxiliary contact is separated, it produced the electric arc between the auxiliary contacts. The arc is lengthened in arc-extinguishing enclosure gap, meanwhile, the arc shield explode gas to blow off the arc during the current passes zero.

Rated voltage: 10KV, 11KV, 15KV, 24KV, 27KV, 30KV, 33KV, 36KV, 38KV etc.

Material: Porcelain type, Polymeric type.

12kv-15kv High Voltage Dropout Fuse

type	rated volage (kv)	rated current (a)	breaking current (a)	impulse volage (bil)	power-frequency withstand voltage (kv)	leakage distance (mm)	weight (kg)	dimensions (cm)
HQF-103	15	100	10000	125	45	330	8.5	51×32.5×12
HQF-203	15	200	12000	125	45	330	9	51×32.5×12

We main produce HV Dropout Fuse, Lightning Arrestor, Isolate Switch, Poleline Hareware,solar photovoltaic fittings,etc. Welcome to contact us for business.
