| Prod Model: |
YJLV |
| Color: |
as Your Reuirement |
| Filler: |
Filler Strip |
| Armoring: |
Fine Steel Wire Armoring or Steel Tape Armoring |
| Packing: |
as Your Requirement |
| Type: |
Insulated |
| Conductor Type: |
Solid |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
XLPE |
| Certification: |
CCC |
| Range Of Application: |
Industry |
| Brand: |
Upward |
Product Description
Parameters of high-voltage cable
High-voltage cable is a kind of power cable and means the power cable for transmitting the voltage within 10KV-35KV (1KV=1000V), and is mostly applied in the main road of power transmission. The executive standards of high-voltage cable product are GB/T 12706.2-2008 and GB/T 12706.3-2008.
Detailed description
- Conductor: Copper or aluminum- Insulation: Cross
- linked polyethylene
- Filler: Filler strip
- Packaging: Wood shaft or packaging bag, depending on your requirement
- Outer sheath: Polyethylene
- Armoring: Fine steel wire armoring or steel tape armoring
Service characteristics of high-voltage cable: This product is applicable to the fixed laying lines for power supply, transmission and distribution with AC rated voltage of 35KV and below. The maximum long-time operating temperature of cable conductor is 90ºC, and in case of short circuit (not exceeding 5S at most), the maximum temperature of cable conductor is not greater than 250ºC.
Standard sectional areas: 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2.
| Type | Name | Application |
YJV
YJLV | Cross-linked polyethylene-insulated, PVC-sheathed power cable
Cross-linked polyethylene-insulated, PVC-sheathed aluminum power cable | Overhead, indoors, tunnel, cable trench |
YJV22
YJLV22 | Cross-linked polyethylene-insulated, steel tape-armored, PVC-sheathed power cable
Cross-linked polyethylene-insulated, steel tape-armored, PVC-sheathed aluminum power cable | Indoors, tunnel, cable trench and underground |
YJV32
YJLV32 | Cross-linked polyethylene-insulated, fine steel wire-armored, PVC-sheathed power cable
Cross-linked polyethylene-insulated, fine steel wire-armored, PVC-sheathed aluminum power cable | High drop, vertical shaft and underwater |
| Note: Add ZC to the original model of flame-retardant cable of the Company, NH to fire-resistant cable, and WDZN to low-smoke, halogen-free, flame-retardant and fire-resistant cable. |

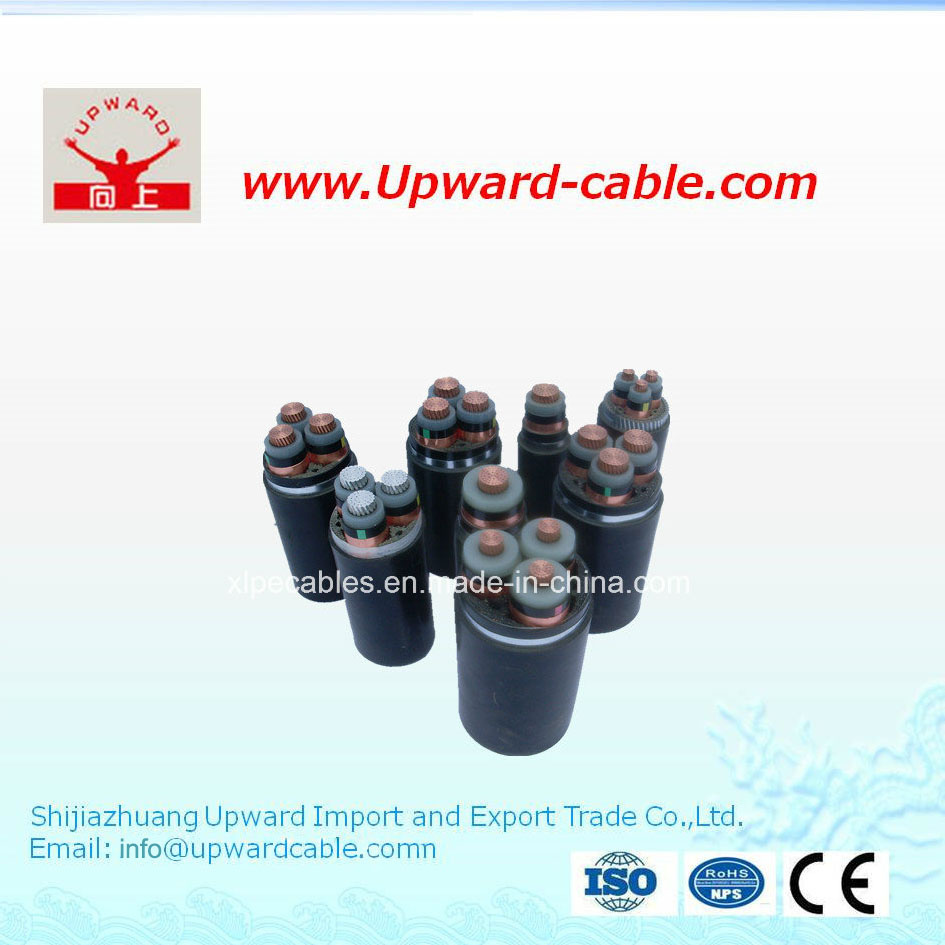

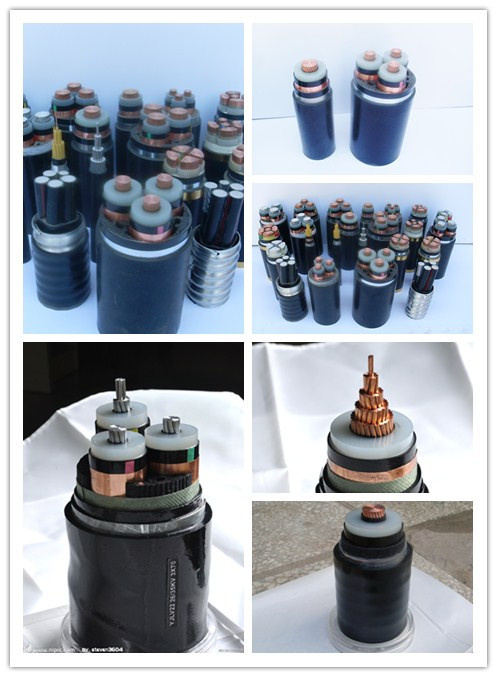

Product show:

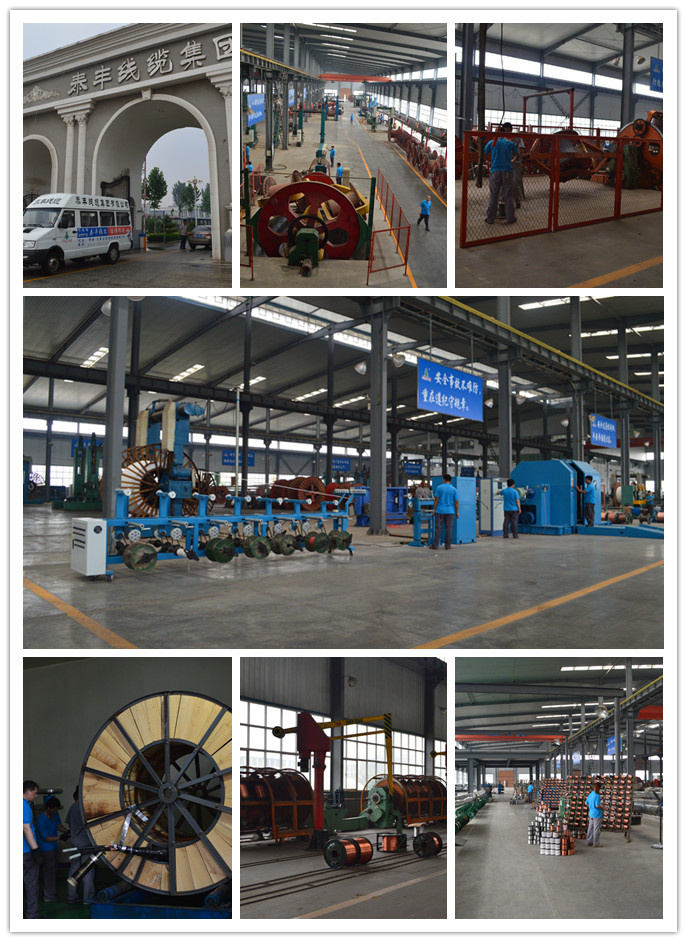

Factory photo:
Questions and Answers!
Dear Friend,
How are you!
If you are interested in our cable products, pls inform us.
We will send you our best quotation .
Hope to get in touch with you!--We're at your service
Upward Cable specializes in design and manufacture of various kinds of wires and cables. The main products are low voltage cable, high voltage cable, power cable, aluminum alloy cable, fire flame retardant cable, fire resistant cable and high temperature cable.
The workshop area is 260000 sq. M. There are 430 staff members in the factory, including 20 experienced engineers, 38 lab assistants and 372 workers. The capital asset reached USD30, 000, 000. We have various advance product lines and equipment, including 125 sets for producing use and 35 sets for testing and measurement use. Our product can perfectly meet requests of different standards, for example GB, IEC, BS and ASTM. We could offer OEM and ODM service for the special cutomer. The annual product capacity of cables and wires is more than 20, 000, 000 kilometers.
As one of the leading manufacturers of cable industry in Hebei Province, we obtained certificate of ISO9001 in 2003. All cables of colliery have gotten the certificate of safety for colliery. Our fire retardant cables are approved with the certification of proof products, and most of them met the standards of China Compulsory Certification (CCC). Moreover, we have been already licensed to enter the "Supplier of the China Government Procurement" by the government.
For years, we are keeping providing products with high quality and good service. Our cables and wires are widely used in the construction of buildings airports, power transportation, urban and rural power network reformation and other main projects. Both of products and the factory are greatly commended by customers. Also, we really highly value the overseas market. Our factory has the qualification to export independently which is awarded by Chinese government. The main products of our company have been exported to Africa, Australia, America, Italy, Singapore and other Asian countries.
