High Voltage Composite Insulator/Polymer Insulator (110KV~132KV)

Name: High Voltage Composite Insulator/Polymer Insulator (110KV~132KV)
Brand: all-electronics-online.com
SKU: 681207272
Availability: InStock
Rating: 4.3 (138 reviews)

Price:	US $ 78.2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	200/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	FXBW-110KV~132KV
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	110kv~132kv
Material:	Composite Polymer
Type:	A Type Insulator
Application:	High-voltage
Structure:	Composite Insulator

Product Description

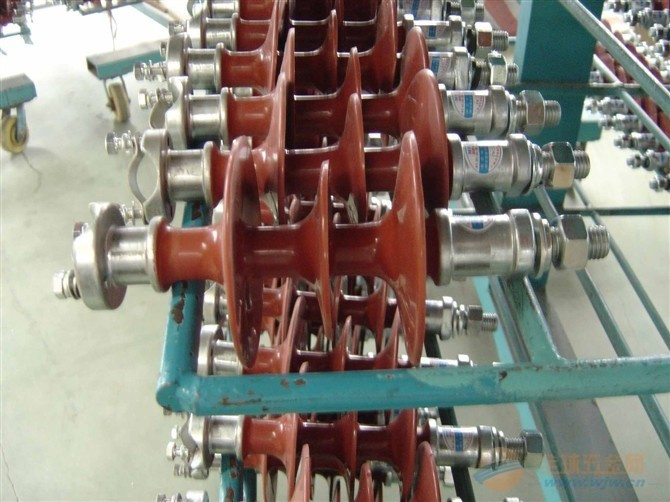

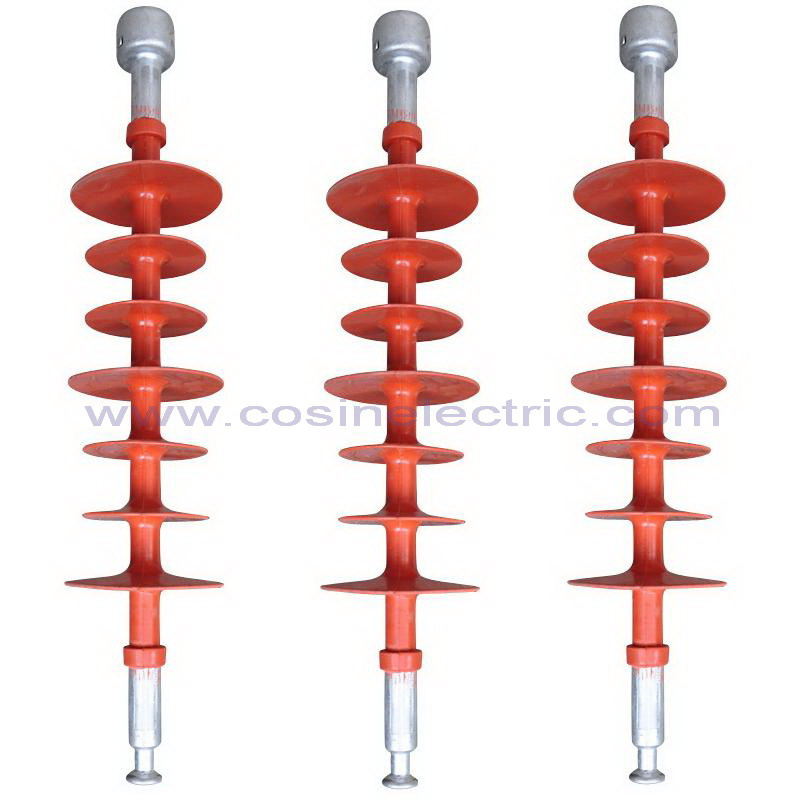

Name: High Voltage Composite insulator/Polymer insulator
Model No.: FXBW-110KV~132KV
Material:Silicon Rubber

Condition of Useof composite insulator/polymer insulator:
1. Ambient air temperatures within the range of -40 degree Celsius to +40 degree Celsius;
2. Altitude above sea level not exceeding 1, 000m; (If the altitude is higher than 1, 000, it needs adjust. )
3. Frequency of A. C. Power supply not exceeding 100Hz;
4. The mechanical load no more than the rated value.

Characteristics of composite insulator/polymer insulator:
-Small volume and light weight, easy to transport and install
-The superior in performance and high intensity mechanical enhance reliability of power line
-Extraordinary hydrophobic and resistance to contamination
-Long-duration resistance aging and leakage tracking.

Code No	Catalogue No	Rated Voltage (KV)	Specified Mechanical Load(KN)	Section Length (mm)	Min Arc Distance (mm)	Min creepage Distance (mm)	Lightning Impulse Withstand (KV)	Power Frequence Withstand(wet) (KV)
FXBW4-110/120	QCE-110/120BS	110	120	1320	1000	3150	550	230
FXBW4-132/120	QCE-132/120BS	132	120	1600	1369	5100	650	340

Experience: 16 years producing experience from 1999-2015 for insulator and line hardware

Product: Composite insulator, glass insulator and ceramic insulator

SML: From 40KN to 550KN From AC insulator to DC insulator.

Package: Exported free-fumigation

Quality control: Can do all the test according to IEC

Quality control System: Exactly according to ISO9001: 2000

Exporting Market: USA, Argentina, Mexico, Italy, South Africa, Turkey, Vietnam, France, Chile, etc.

Engineer term: Have 12 engineers to reply all your questions and offer professional service.

Sale term: All the sale man have been trained every month. And offer best service.
