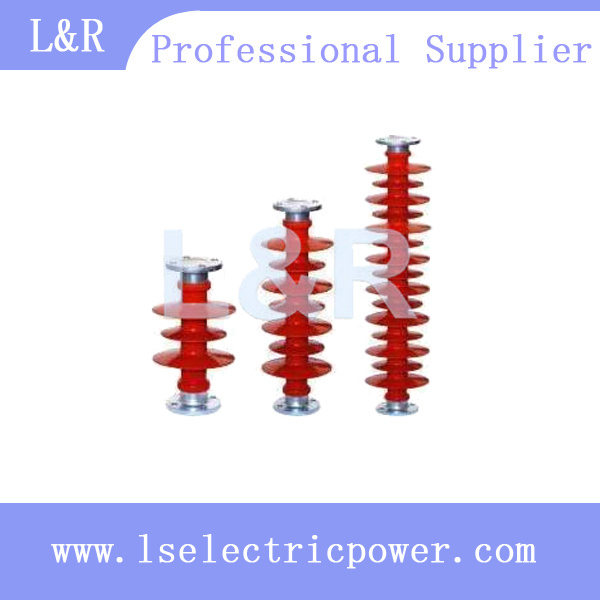

High Voltage Composite Suspension Post Insulator

Name: High Voltage Composite Suspension Post Insulator
Brand: all-electronics-online.com
SKU: 770142255
Availability: InStock
Rating: 4.6 (144 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	FZSW22-220
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Diameter Of Shed:	142/116mm
Application:	High-voltage
Material:	Composite Polymer
Structure:	Suspension Insulator
Type:	B Type Insulator

Product Description

Model NO.:Polymer Insulator Post
Application:High-voltage
Material:Composite Polymer
Polymer Insulator:Post Insulator
Export Markets:Global
Packaging: standard package or cilent's requirment

Characteristics:
-Small volume and light weight, easy to transport and install
-The superior in performance and high intensity mechanical enhance reliability of power line
-Extraordinary hydrophobic and resistance to contamination
-Long-duration resistance aging and leakage tracking

Product Description
This production is applied to high voltage power line service.and have features of good gydrophobicity,anti-ageing,anti-leakage trace and electric erode proof,tensile strength,strong mechanical strength,shock resistence good quakeproof and brittle failure proof,light weight easy to installation,and the installation outline of top and base are the same size with porcelain pin type,they can exchange to use each other

Product Model	Rated voltage (kV)	Rated mechanical bending load (kN)	Structure height (mm)	Min. arcing distance (mm)	Min. nominal creepage distance (mm)	Uimp wts(peak) (kV)	Uw. 1min wts(peak) (kV)
FXBW-24/70	24	70	450	235	635	150	65
FZSW-24/70	25	5	380	320	750	150	65

Our Services
1. Rich experience in ODM and OEM
2. Excellent One-stop service
3. High Quality Precision Customized forging & Casting services
4. The best price
5. Strict quality control
6. We wormly welcome you come to visit our factory and seek further cooperation

Zhejiang Lawrence Electric Co., Ltd (referred as L&R) is located in Zhejiang China. It is composed by some branch companies, we also invested some domestic and foreign EPC projects.

L&R has possessed one of the major suppliers in the power and electrical fields for electrical

Projects in the world. Almost all products manufactured by the L&R members have been certified

By KEMA, CE, SGS and CNAS approved Lab.

L&R have been supplying Zinc Oxide Varistors, Surge Arresters, insulators, Fuse Cutouts, Air

Break switch, Load break switch, Vacuum Circuit Breaker, Isolators, Transformers, Switchgear,

Earth rods, Stay Rods, Pole Make Off, Guy grip, stay wire, Crossarm, clamp, bolts, Line hardware

And so on. Our member companies are required to have a long term proven track record of meeting contract

Obligations, superior quality, current technology and state-of-the-art manufacturing facilities.

Over a period of 10 years, our business has extended to South America, Middle East, Southeast

Asia, Africa, and other regions, and we had our sale agent and 4S maintenance company in some countries. To achieve the strategic objective of development, we are seeking for partners

For our sale agent and maintenance company in all the worldwide.
