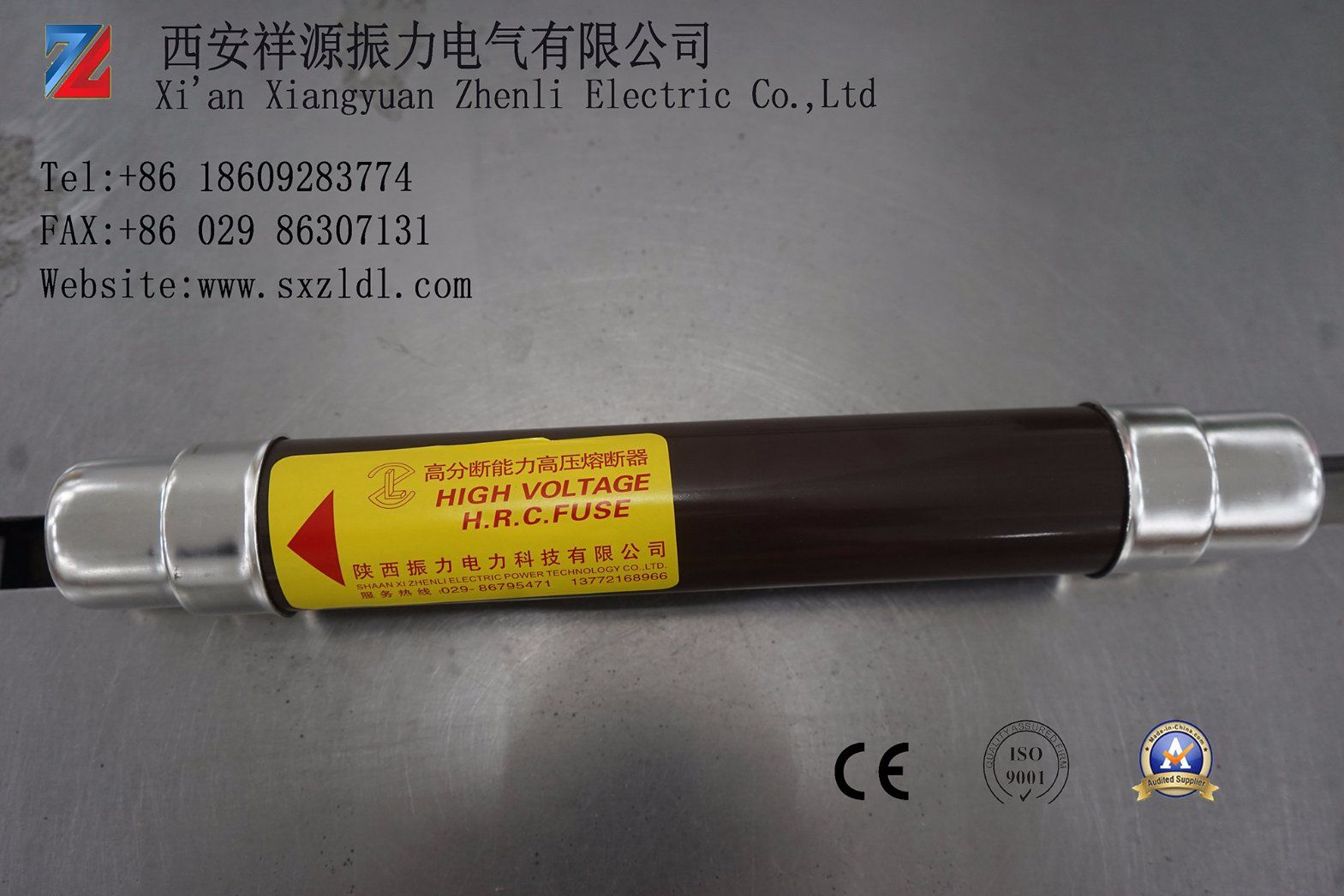

High-Voltage Current Limiting Fuse for Full Range Protection

High-Voltage Current Limiting Fuse for Full Range Protection
Price: Negotiable/Piece
Min Order: 12/Piece
Pay Type: T/T
Contact Supplier
Showroom Product Company Profile
Prod Model: XRNT3A-/-50kA
Breaking Capacity: High
Type: Current Fuse
Usaga: High Voltage
Fusing Device: Link Break

Product Description


This product applies to indoor AC 50~60Hz system with the rated voltage of
12kV ~ 24kV. It is able to reliably break any fault current from the fusion current to the rated breaking current. The product not only has the higher breaking capacity of the current limiting fuse, but also has the better small current protection characteristics of non-limiting current fuse, achieving the good protection characteristic of full range breakage.
Model

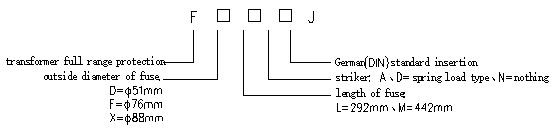

Domestic model: XRNT3A-/-50kA
       Equivalent model:

Basic parameters:

Product ModelEquivalent Model Rated  Voltage
(kV)		Rated Current of Fuse Link (A) Standard SizeRated  Breaking Current
(kA)
φAL
XRNT3A-12FFLDJ1210, 16, 20, 25, 31.5, 40, 50, 63φ7629250
FXLDJ80, 100φ88292
XRNT3A-24FDMDJ246.3, 10, 16, 20, 25φ5144231.5
FFMDJ31.5, 40, 45φ76442

         Outline dimensions

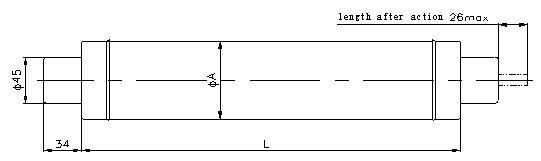

Fig. 1 Outline dimensions of XRNT3A full range fuse

Main technical data

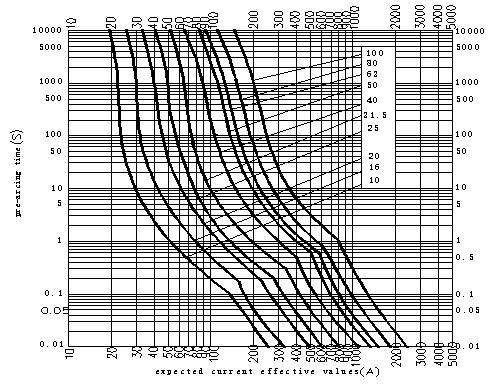

Fig. 2 FFL, FXL 12kV time - current characteristic curve

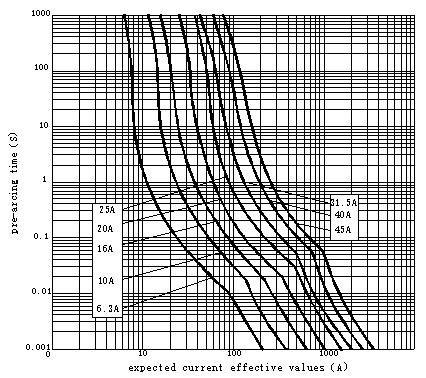

Fig. 3 FDM, FFM 24 time - current characteristic curve

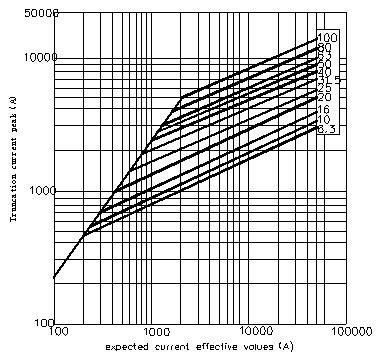

Fig. 4 F fuse current limiting characteristic curve



Selection of fuse

General selection principle for primary full range fuse of transformer

Rated Voltage (kV)Rated Capacity of Transformer (kVA)
125160200~2503154005006308001000
Rated Current of Full Range High-voltage Fuse (A)
121016202531.540506380
246.31016202531.540
Founded on March 7, 1998, Shaanxi Zhenli Electric Power Technology Co., Ltd. (formerly known as Xi'an Zhenli Fuse Co., Ltd. ) was located in F4-402 Lutong Industrial Park, East Section of Kuangshan Road, East Er'huan, Xi'an with the industrial plants covering 1771.08 square meters. As the company business gradually expanded, it was moved to No 2055, Shanglinyuan No. 5 Road, High-tech District, Xi'an in 2017, with three self-built standard plants covering 20847.26 square meters and a total of 80 staff including 8 research staff, 6 professionals and 6 product designers. As required by High-tech District of Xi'an, the company was restructured into Xi'an Xiangyuan Zhenli Electric Co., Ltd., a high-tech enterprise specialized in research and development, production and sales of indoor and outdoor fuses whose production scale and technical level lead the industry in China. So far, the number of fuses running in the power grid in the world is more than 3 million and the company has rich experience of line operation. Its products cover the voltage within 3.6~40.5kV and the current within 0.2A~315A. Its main products belong to new-energy wind-photovoltaic power hybrid power generation system strongly supported and developed by the nation. Currently, its main clients are Schneider, ABB, TBEA, Shandong Taikai, Jiangsu Huapeng and other Top 500 enterprises in the world and listed companies in China. The products are sold as far away as Portugal, Thailand, Mexico, Pakistan and other countries.
