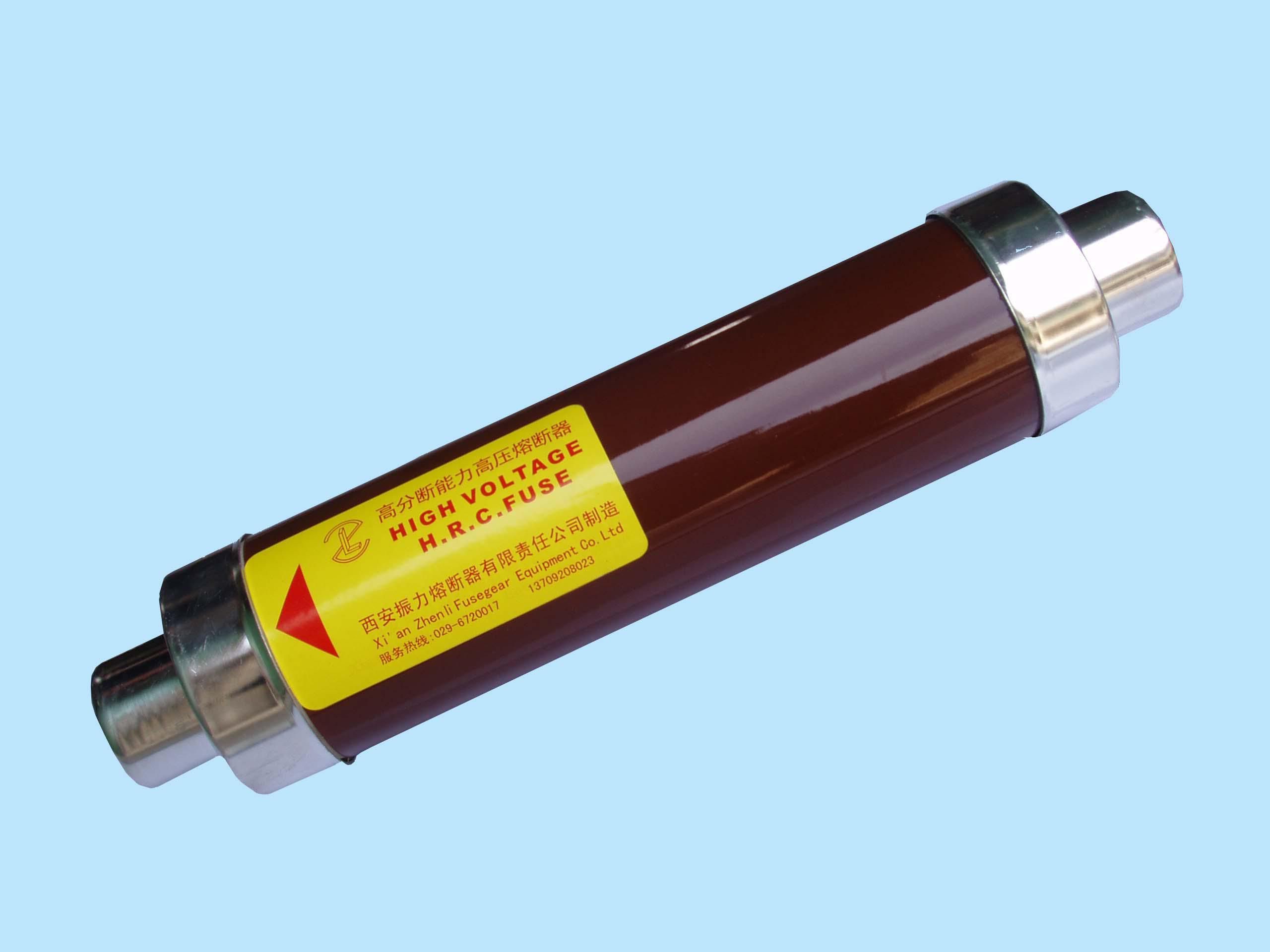

High-Voltage Current Limiting Fuse for Power Capacitor Protection

Name: High-Voltage Current Limiting Fuse for Power Capacitor Protection
Brand: all-electronics-online.com
SKU: 831470095
Availability: InStock
Rating: 4.6 (52 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	XRNC3A-/-50
Breaking Capacity:	High
Type:	Current Fuse
Usaga:	High Voltage
Fusing Device:	Link Break

Product Description

This product applies to indoor AC 50~60Hz system with the rated voltage of 3.6 ~ 12kV for the overload and short-circuit protection of power capacitor and its set. The fuse can act quickly under the overload current and also reliably break the circuit at the short circuit current.
Model:
XRNC3A-/-50
Technical parameters

The fuse under specified operating conditions is able to reliably break any fault current from the fusion current to the rated breaking current.
Rated current of fuse shall not be less than 1.43 times the loop full load current.

Basic parameters

Product Model	Rated Voltage (kV)	Rated Current (A)	Rated Current of Fuse Element (A)	Standard Size		Rated Maximum Breaking Current (kA)
Product Model	Rated Voltage (kV)	Rated Current (A)	Rated Current of Fuse Element (A)	L(mm)	φA(mm)	Rated Maximum Breaking Current (kA)
XRNC3A-3.6	3.6	100	50, 63, 71, 80, 100	292	φ76	50
XRNC3A-3.6	3.6	200	125, 140, 160, 200	292	φ88
XRNC3A-7.2	7.2	63	16, 20, 25, 31.5, 40, 50, 63	292	φ76
XRNC3A-7.2	7.2	125	71, 80, 90, 100, 125	292	φ88
XRNC3A-12	12	50	10, 16, 20, 25, 31.5, 40, 50	292	φ76
		63	16, 20, 25, 31.5, 40, 50, 63	442	φ76
		100	63, 71, 80, 90, 100	292	φ88
		125	80, 100, 125	442	φ88

Outline Drawing

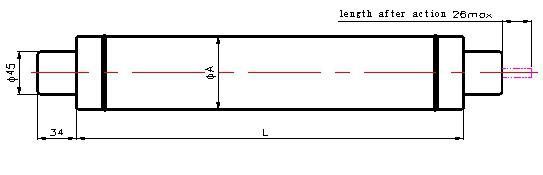

Fig. 1 XRNC3A plug-in fuse link

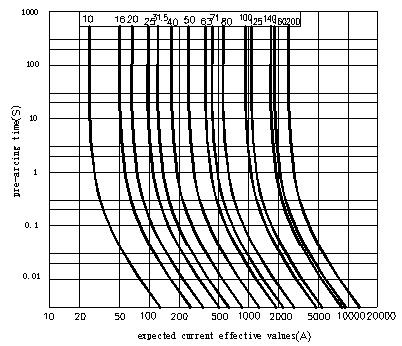

Fig.2 XRNC time - current characteristic curve

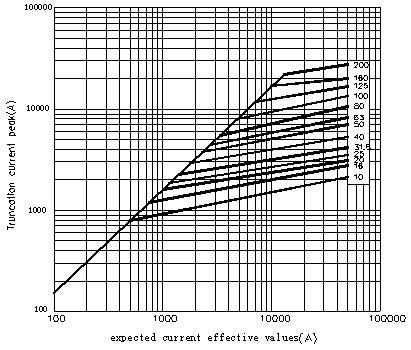

Fig. 3 XRNC current limiting characteristic curve
