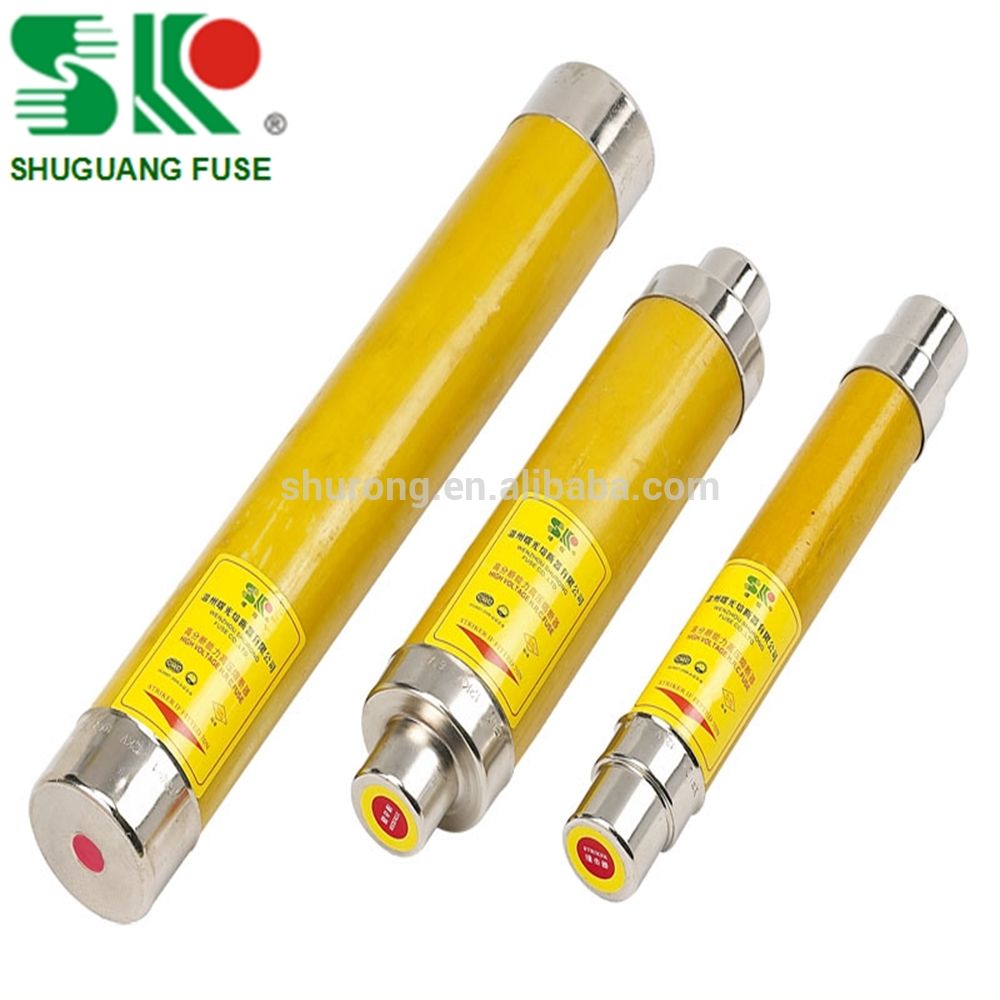

High Voltage Current-Limiting Fuses for Transformer Protection

Prod Model:	XRNT1( type S )
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Epoxide Resin
Color:	Yellow
Diameter:	51/76/88mm
Rated Voltage:	3.6kv, 7.2kv,12kv,24kv,40.5kv
Usaga:	High Voltage
Breaking Capacity:	High Voltage Circuit Breakers
Type:	Fuse
Shape:	Circular Cylinder
Standard:	IEC

Product Description

Applications

H.V current-limiting fuses type S is mainly used in AC50Hz,rated voltage 3.6~40.5KV,rated current up to 200A circuit for protection transformers and power equipments from overload and short-circuit.It can also be used with load switch,vacuum contact.
   It conforms to IEC282-1,GB15166.2 and DIN standard.

Features
DIN HRC "S" type high voltage fuse for transformer protection:
. According to bussmann DIN "S" type high performance back-up fuse
2. Comply with IEC282-1, DIN, BS
3. This fuse is intended to protect distribution networks and transformer, for indoor as well as outdoor use.
4. Any other specifications can be designed specially.

S type H.V.HRC current-limiting fuses has many merits as high current-limiting ablilty, high breaking capacity, quick and punctual in action, reliable in performance.
