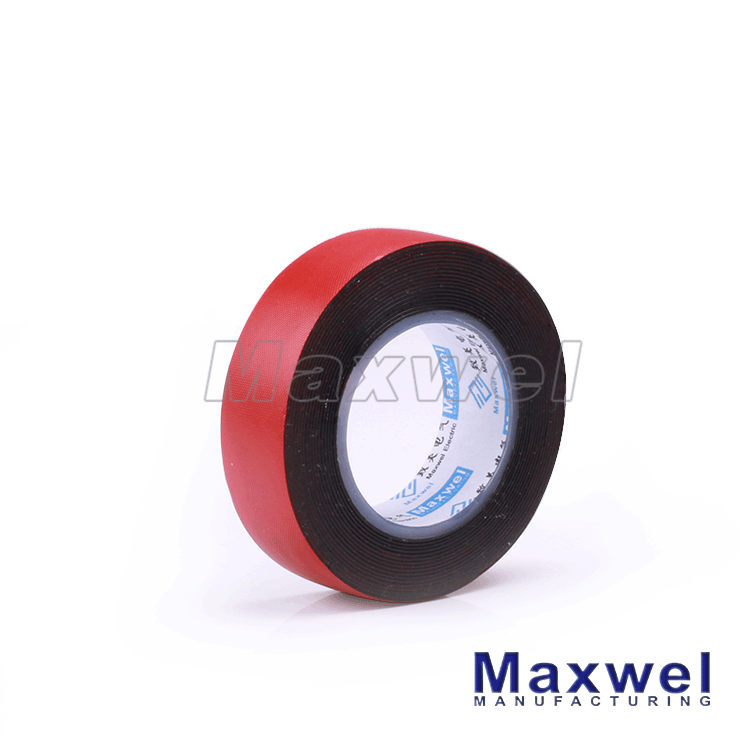

High Voltage Electrical Rubber Insulation Tape (KE30R)

Prod Model:	KE30R
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Normal Size:	19mm*0.76mm*9.14m
Raw Material:	Epr
Rated Insulating Voltage:	69kv
Length:	<12m
Application:	Electrical Winding Insulation
Type:	Insulation Tape
Chemistry:	Hybrid Insulation
Material:	Rubber
Thermal Rating:	Y 90
Maximum Voltage:	20KV~100KV
Color:	Any Color

Product Description

High Voltage electrical rubber Insulation Tape (KE30R)

KE30R tape made from premium grand self bonding rubber mainly made from EPR(Ethylene Propylene Rubber). They are non-vulcanizing and shelf-stable with excellent electrical proprties. KE30R tape can be used as insulation for low voltage applications as well as insulation for joints up to 69KV.

Features:
1. Non-vulacanizing and highly conformable
2. Physical and electrical properties are unaffected by the degree if stretch
3. Can be stretched up to 800% to make void-free
4. Moisture-resistant insulation, self-amalgamating tape
5. Excellent electrical properties

Application:
1. Primary insulation for make stress cones on cables up to 35kv
2. Primary electrical insulation for cable jointing and terminating up to 69KV with up to 90 degree continuous operating temperature and 130 degree emergency overload temperature

Size:
1.19mm*0.76mm*9.14m
2.25mm*0.76mm*9.14m
3.38mm*0.76mm*9.14m
4.50mm*0.76mm*9.14m
Special size tape can be requested.

Model	Tensile  Strength	Elongation	Disruptive  Voltage
	(Mpa)	(%)	(KV/mm)
KE10	1.5	500	5
KE20	1.5	600	11
KE30R	1.8	800	32
KE30P	1.8	800	35
