| Prod Model: |
1Kv-800Kv 1100kv |
| Application: |
High-voltage |
| Material: |
Porcelain |
| Structure: |
Post Insulator |
| Type: |
B Type Insulator |
| Color: |
Sliver |
| Brand: |
Ville |

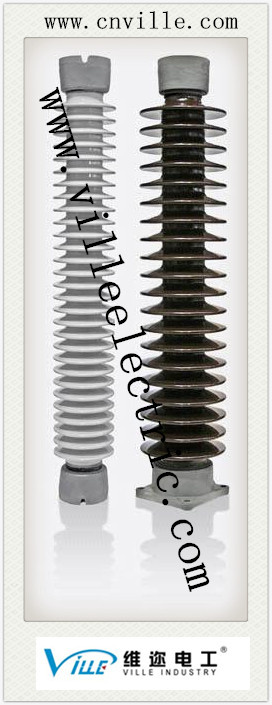

Product Description
According to IEC, ANSI and other standards produce by the power station post insulators are widely used in the substation and associated switching equipment. Each post insulators can reach 2300 mm in max, operating voltage up to 1100 kV . And every post insulator must be carried out prior to use compression, cantilever gravity and torsion test.
Size:
voltage level 1 - 1100 kV
maximum length :2300 mm
maximum diameter :288 mm
creepage distance : 55 mm / kV
cone (according to IEC standard)
cylindrical (according to ANSI standard)
production methods: wet process
C130 high-strength alumina ceramic and ultra high strength available C130 HS glaze color :brown RAL 8017 and gray the ANSI 70
Standard: IEC 60273, the IEC 60168, the IEC 60672, ANSI,, DIN, GE
Experience: has 17years of electrical porcelain production
Test applications: power station post insulators, disconnecting switch (post insulator and operating insulators)
compensation system platform support
Packaging & Delivery
Packaging Details:
cartons or according to your requirement for Epoxy Resin line Transmission composite post insulator
Delivery Detail:
Shipped in 15 days after payment
Product Description
our main products are as follows:

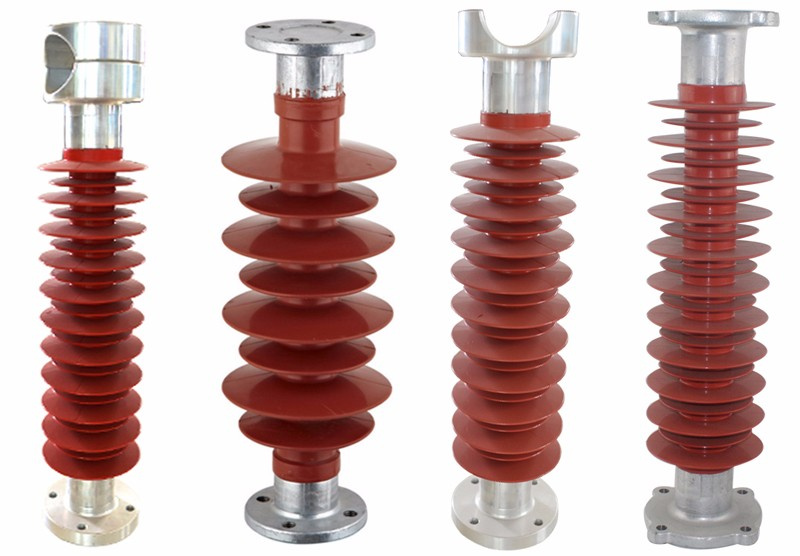

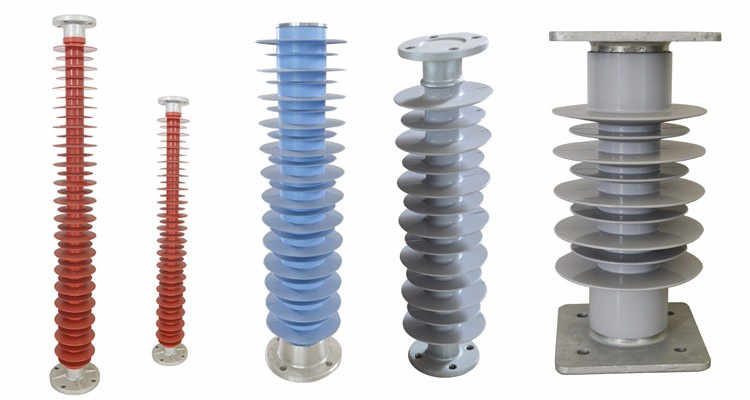

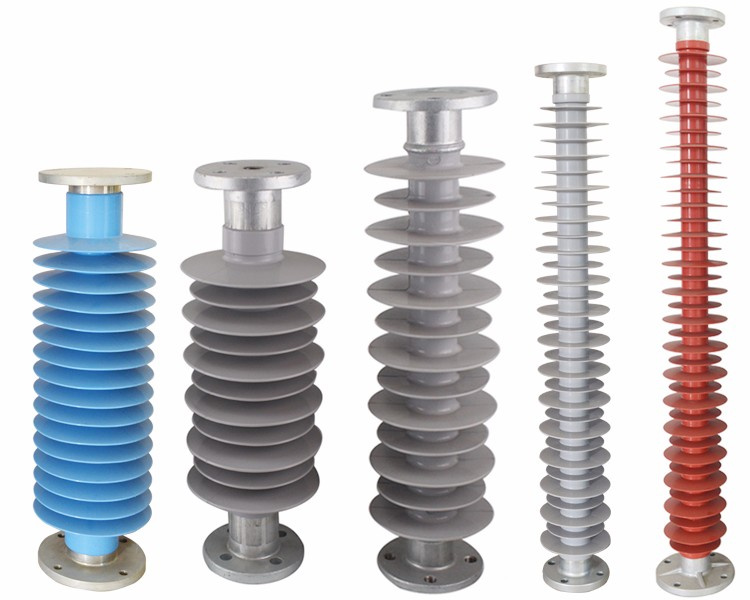

1.10kv -1100kv silicone rubber insulator
2.Diam.5-180mm Insulator core rod(epoxy resin rod)
3.Many kinds of insulator fittings such as ball,socket,Tongue,Clevis,Flange and so on.
4.Silicone rubber
| Type | No.
Of
Sheds | "X"
Length
inches
(mm) | Diameter
Inches
(mm) | Leakage
Distance
Inches
(mm) | Dry
Arc
Distance
inches
(mm) | Lighting withstan voltage | Wet power frequency voltage | SML
Specified Mechanical Load(kN) | Top end fitting dianeter | Bottom end fitting dianeter |
| FZSW-10/4.0 | 5 | 250 | 110 | 85 | 400 | 160 | 95 | 40 | 4.0 | 76 | 76 |
| FZSW-12/4.0 | 4 | 254 | 120 | 90 | 400 | 145 | 95 | 40 | 4.0 | 76 | 76 |
| FZSW-20/4.0 | 6 | 315 | 137 | 110 | 580 | 215 | 145 | 50 | 4.0 | 76 | 76 |
| FZSW-24/4.0 | 7 | 370 | 120 | 90 | 580 | 260 | 145 | 50 | 4.0 | 76 | 76 |
| FZSW-36/12.0 | 19 | 550 | 140 | 110 | 1260 | 404 | 230 | 95 | 12.0 | 140 | 140 |
| FZSW-40.5/4.0 | 15 | 560 | 123 | 80 | 1050 | 450 | 230 | 95 | 4.0 | 76 | 76 |
| FZSW-66/10.0 | 21 | 905 | 166 | 136 | 1900 | 766 | 410 | 185 | 10.0 | 127 | 127 |
| FZSW-72.5/6.0 | 15 | 890 | 170 | 140 | 1900 | 742 | 410 | 185 | 6.0 | 127 | 127 |
| FZSW-110/5.0 | 30 | 1220 | 166 | 136 | 3150 | 1081 | 550 | 230 | 5.0 | 127 | 178 |
| FZSW-220/2.5 | 57 | 2310 | 187 | 157 | 6300 | 2100 | 950 | 395 | 2.5 | 150 | 150 |
| FZSW-252/4.0 | 55 | 2300 | 196 | 166 | 6300 | 2100 | 950 | 395 | 4.0 | 127 | 200 |
SCHEMATIC DIAGRAM
1. Shed connected with core by integral foring
2. The thinkness of housing > 3mm,unifirm to IEC Standard
3. Acid resistant,hight temperature resistant of epoxy fiberglass core
4. Metal end fittings,core and sheds connected by new crimping process
5. Hot galvanization and technology of rareearth aluminum coating to avoid coating shedding prolonging
the service life
Material:
1. Silicon rubber, composite polymer
2. Glass-fiber reinforced epoxy resin rod
3. Hot-dip galvanized steel
| Type | Rated
voltage | Bending
KN | Torque | Mounting
height | Arcing
distance | Creepage
distancce
(mm) | Full wave lighting
impulse with
stand voltage not
less than | 1 min
Dry | 1 min
Wet | Center distance
of mounting
hole | Hole diameter
of mounting
hole |
| FZSW-10/4 | 10 | 4 | 1.2 | 350 | 210 | 540 | 75 | 42 | 30 | 127 | 18 |
| FZSW-35/4 | 35 | 4 | 1.2 | 420 | 280 | 625 | 185 | 100 | 80 | 127 | 18 |
| FZSW-110/10 | 110 | 10 | 4 | 1220 | 1080 | 3200 | 450 | 265 | 185 | 127 | 18 |
| FZSW-220/8 | 220 | 8 | 4 | 2300 | 2160 | 6300 | 950 | 495 | 395 | 127 | 18 |
Tips: size ,color,rated voltage,package,shed... can be customized
