High Voltage Fast Diode for UPS Power

Name: High Voltage Fast Diode for UPS Power
Brand: all-electronics-online.com
SKU: 781872955
Availability: InStock
Rating: 4.5 (141 reviews)

Price:	US $ 3-52/Piece
Trade Terms:	FOB
Min Order:	3/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZK800C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Vrrm:	200-3000V
Vfm:	2.5V
Irrm:	40mA
If(AV):	800A
Manufacturing Technology:	Discrete Device
Material:	Element Semiconductor
Type:	Intrinsic Semiconductor
Package:	Ceramic Disc Type Seal
Application:	Induction Warm up, UPS Power
Model:	Zk800c
Batch Number:	2016+
Brand:	Shangjing

Product Description

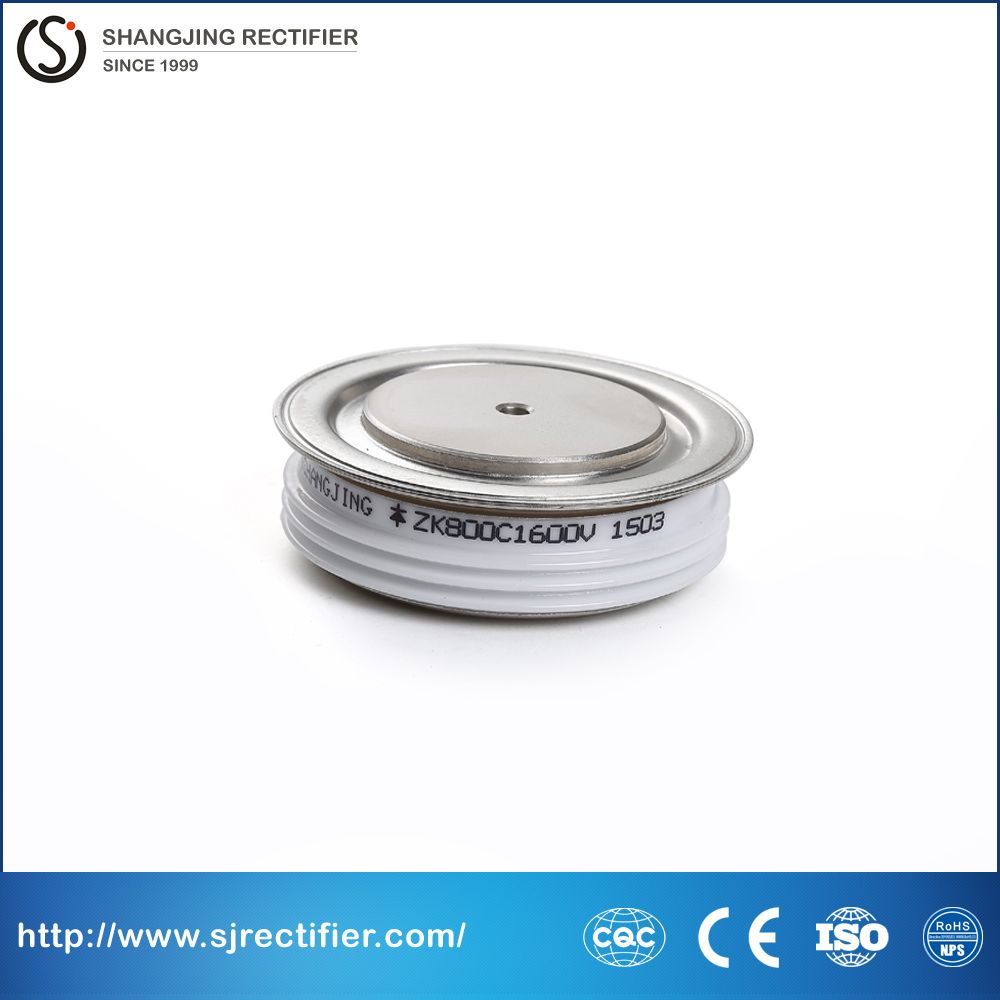

Fast Recovery Diode (Capsule Type)
Features
Total diffuse process
Short recovery time
Low reverse recovery charge
Fast soft recovery features
Ceramic disc type seal
Double-sided cooling

Typical application
Motor control
Induced heating
UPS power
Chopper
Welders

Explanation
I2t=I2FSM× TW/2: TW=Half sine wave current when at 50Hz
I2t=0.005I2FSM(A2S)FSM
When at 60Hz IFSM(8.3ms)=IFSM(10ms)× 1.066, Tj=Tjm
I2t(8.3ms)=I2t(10ms)× 0.943, Tj=Tjm

Type	VRRM	IF(AV)	trr	Qrr	IFSM	IRRM	VFM/IFM	Rth(j-hs)	Tjm	M2	Outline
		THS55° C	100° C		10ms		25° C
	V	A	μ s	μ c	kA	mA	V/A	° C/W	° C	kN
ZK200C	200-3000	200	2	70	2.7	16	2.1/600	0.090	150	3.3-5.5	E1/E2
ZK300C	200-3000	300	3	100	4.1	30	2.3/900	0.065	150	5.3-10	E2
ZK400C	200-3000	400	3	100	5.4	40	2.3/1200	0.040	150	10-20	E2/E3/E5
ZK500C	200-3000	500	3	120	8	40	2.3/1800	0.033	150	10-20	E2/E3/E5
ZK800C	200-3000	800	3	130	10	40	2.5/2400	0.033	150	10-20	E5/E6/E8
ZK1000C	200-3000	1000	4	150	13	50	2.5/3000	0.030	150	15-20	E8
