High Voltage Fuse Link 1A 2 a 3A

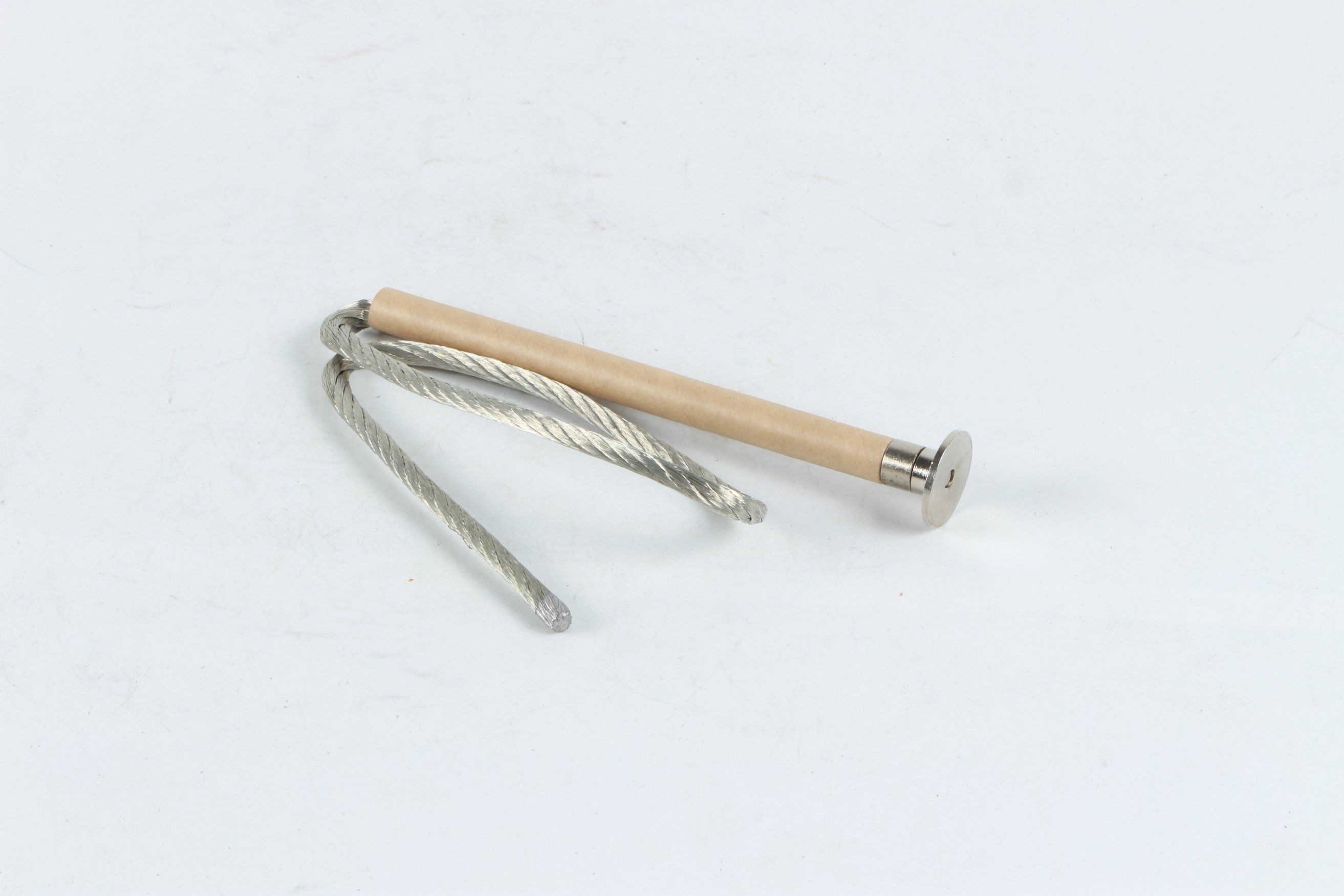

Name: High Voltage Fuse Link 1A 2 a 3A
Brand: all-electronics-online.com
SKU: 826474865
Availability: InStock
Rating: 4.7 (54 reviews)

Price:	US $ 0.2/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	1A, 2A, 3A
Breaking Capacity:	High
Type:	Current Fuse
Usaga:	High Voltage
Standard:	IEC

Product Description

Fuse link is divided into 'K' and 'T' type, it has general type, universal type and screw type available according to IEC-282 standard. 'K' type fuse link is with 6-8 melting speed, and 'T' type is with 10-13 melting speed. These two types of fuse link are widely applied to drop out fuse cutouts of 11-36kv grade.

Features

1. Good fault interrupting capability

2.High mechanical strength

3.Reliable arc-extinguishing performance

4.Accurate time current characteristics

5.Durability

6.Standard: IEC-282

7.Rated current :1A-200A

8.Rated Voltage :11KV-27KV (Length :530MM-600MM)

9.Rated Voltage :33KV-38KV (Length :787MM)

10. Other customized type of HV fuse links are available, welcome to contact us.
Fuse link is divided into 'K' and 'T' type, it has general type, universal type and screw type available according to IEC-282 standard. 'K' type fuse link is with 6-8 melting speed, and 'T' type is with 10-13 melting speed. These two types of fuse link are widely applied to drop out fuse cutouts of 11-36kv grade.

Features:

1. Good fault interrupting capability

2.High mechanical strength

3.Reliable arc-extinguishing performance

4.Accurate time current characteristics

5.Durability

6.Standard: IEC-282

7.Rated current :1A-200A

8.Rated Voltage :11KV-27KV (Length :530MM-600MM)

9.Rated Voltage :33KV-38KV (Length :787MM)

10. Other customized type of HV fuse links are available, welcome to contact us.
