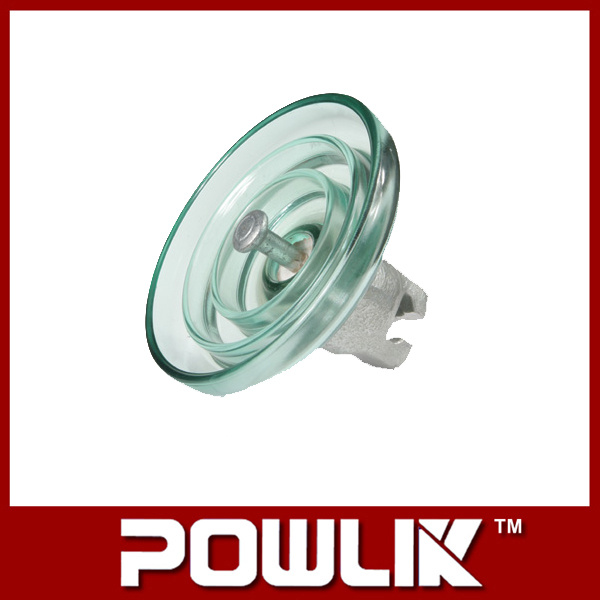

High Voltage Glass Suspension Insulator (LXP-300)

Name: High Voltage Glass Suspension Insulator (LXP-300)
Brand: all-electronics-online.com
SKU: 676106795
Availability: InStock
Rating: 4.3 (150 reviews)

Price:	US $ 1.8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LXP-300
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Chemistry:	Glass
Thermal Rating:	250 250
Diameter:	320mm
Height:	195mm
Application:	Insulators
Structure:	Suspension Insulator
Material:	Glass
Type:	Solid
Color:	Glass
Brand:	Powlik

Product Description

High Voltage Glass Suspension Insulator (LXP-300)

Currency designation	U300B/195
designation	LXP3-300
( mm ) Diameter D	320
( mm ) Spacing H	195
( mm ) Creepage L	485
( mm ) Socket soupling	24
( kN ) Mechanical failing load	300
( kN ) Mechanical routine test	150
( kV ) Wet power frequency withstand voltage	50
( kV ) Dry lightning impulse withstand voltage	130
( P.U ) Impulse puncture voltage	2.8
( kV ) Power frequency puncture voltage	* 130
( µV ) Rodio influence voltage	50
( kV ) Corona visual test	18/22
Power frequency electric arc voltage	0.12s/20kA
( kg ) Net weight per unit	10.6

Our Services
1. Rich experience in ODM and OEM
2. Excellent One-stop service
3. High Quality Precision Customized forging & Casting services
4. The lowest price
5. Strict quality control
6 We can manufacture it according to customers requirements.

Minyang Group Co., Ltd. Mainly specilized in manufacturing and supply busbar trunking system, power transformer, insulator, fuse cutout, voltage stabilizer, surge arrester, power supply, Load breaker switch, isolating switch, switchgear sets, substations, cables and wires etc.

MINYANG GROUP located in Liushi, the electric capital of China, is specialized in developing, manufacturing and distributing power supplies & switchgears, along with about 150 components.

MINYANG GROUP established with 5 specilized manufacturing factories, Owning skilled workers, advanced equipment and strict quality control process, MINYANG has passed ISO9001: 2000 and obtained CE, CB, CCC etc. Certificates. Our products are enjoying high popularity in Bangladesh, India, UAE, Iran, Saudi, South Africa and Brazil etc.

MINYANG takes "quality is life of enterprise"as its tenet, rewards customers with quality products and perfect services, and creates brilliant future in Chinese electric equipment industry.
