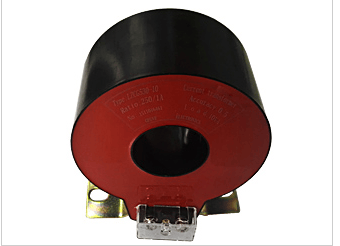

High Voltage High Frequency Current Transformer Manufacturer CT PT

Prod Model:	LZCG530-10
Accuracy Class:	0.2s% 0.2% 0.5%
Key Words:	High Voltage Current Transformers Manufacturer
Key Word:	High Voltage CT PT
Rated Primary Current:	30-600A
Rated Load:	≤25va
Rated Frequency:	50Hz or 60Hz
Rated Secondary Current:	5A or 1A
Model:	High Frequency Current Transformer Manufacturer
Weight (Kg):	5
Color:	Black or Customized
Application:	Position Sensor
Type:	Current Transformer
Phase:	Single

Product Description

Product Description
LZCG series high precision current transformer is suitable for current measurement and microcomputer protection of electrical equipment in 10KV and 35KV AC power system. It is widely used in not only compact fully insulated ring network switchgears such as ABB-SafeRing/SafePlus, Uniswitch, Schneider RM6, SM6, Siemens 8DJ10/8DH10, Simosec, FBX, Fluokit, Omar Garbo GA, GAE; SEL TPS(Q); VEI Unifluorc; Eaton SVS/12 ring network, but also cable distribution boxes because of its small size, light weight, openable and convenient installation. It is very convenient that the transformer can be directly installed at the inlet and outlet cables.
New magnetic material is taken to be the core of the current transformer, which has high magnetic
permeability, low saturation magnetization and good stability. Therefore, the measuring accuracy is higher
and the instrument security factor is lower. Since the high quality silicon processed by advanced technology is taken to be the core of the protection windings, which assured the accuracy limit factor is higher. The semicircular ring core and secondary windings are vacuum poured by high quality epoxide resin in the fire retardant plastic casing, which has the characteristic of moisture proof, stable performance and dispensing with maintenance. Small size, light weight, small footprint, fixed in the ring network switchgear cable. The cable can cross the current transformer through its internal poles quickly and uniformly. The current transformers can be divided several kinds according to the various current ratio, accuracy and rated loads. The specific parameters are showed in the corresponding to each model parameter tables.

Parameters

Technical parameters
Standards	IEC60044-1; IEC 61869-2; ANSI C57.13; NTC 2205; GB1208-2006
Rated primary current	30-1000A
Rated load	≤20VA
Rated frequency	50Hz or 60Hz
Rated secondary current	5A or 1A
Rated short-time thermal current	40kA, 1S
Rated continuous thermal current	120%I1n
Secondary winding power-frequency voltage	3kV, 1min
Instrument security factor	FS ≤10
Mechanical parameters
Dimensions (W×D×H) (mm)	φ45xφ120x65
Weight (kg)	2.1
Operating conditions
Operating temperature	-35°C to +55°C
Daily average temp	<+40°C
Altitude	<3500 meters
Operating conditions - continued
Condition	No existence of severely begrimed, erosive and radioactive gas in the air. Permission of long-term operation under rated current.

TECHNICAL DATA

Type	LZCG530-10	LZCG530-10	LZCG530-10
Purpose	Measuring current transformer	Protection current transformer	Double winding current transformer
Rated primary current (AMP)	Accuracy class and rated load(VA)	Accuracy class and rated load(VA)	Composite accuracy class and rated load(VA)
0.2S	0.2	0.5	10P20	10P15	10P10	0.2S	0.5	10P15	10P10
30			2
40			2.5
50			3.75			2
75		3.75	5		2	3.75
100	2.5	5	7.5		2.5	3.75
150	5	7.5	10	2.5	3.75	6.25	2.5	3.75		2.5
200	7.5	10	15	3.75	5	7.5	5	7.5		3.75
300	10	15	20	5	7.5	10	7.5	10	2.5	5
400	15	20	25	6.25	7.5	15	10	12.5	3.75	5
500	20	25	25	6.25	7.5	15	15	15	3.75	5
600	20	30	30	7.5	10	20	15	20	3.75	7.5
