High Voltage ISO and Ce Certificate Electrical Switchgear
| Price: |
US $ 7800-10000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
XGN2 |
| Name: |
High Voltage ISO and Ce Certificate Electrical Swi |
| Reted Frequency: |
50Hz/60Hz |
| Application: |
Industrial, High-Rise Buildings |
| Standard: |
ISO9001:2008/IEC Standard |
| Rated Voltage: |
12kv |
| Room Design: |
H.V.Transformer and L.V.Room |
| Switch: |
Cabinet Box |
| Switchgear: |
Hv/LV |
| Special Service: |
Customized |
| Signal: |
Continuous |

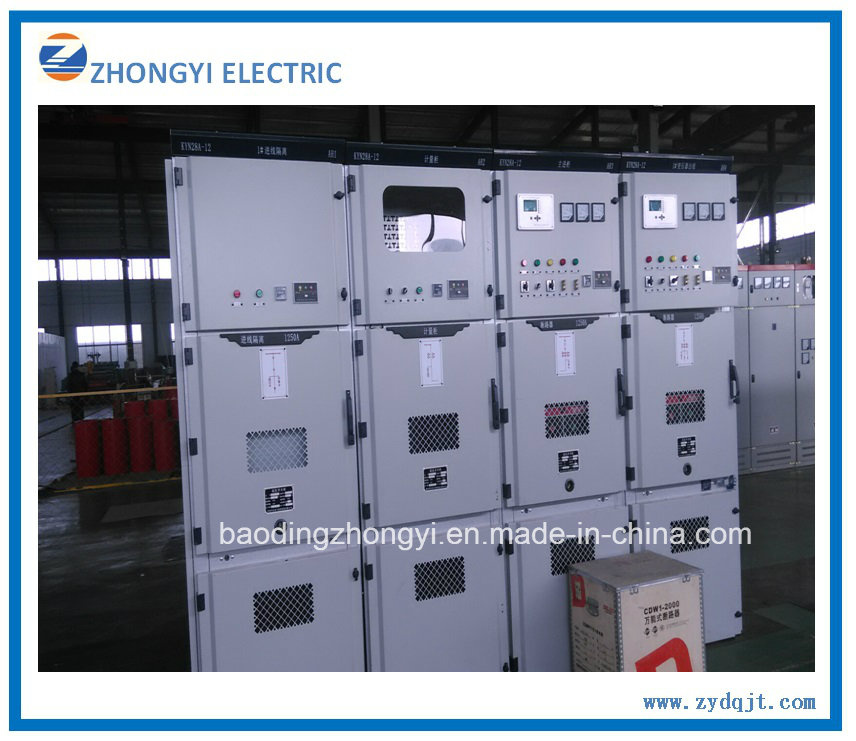

Product Description
High Voltage ISO and Ce Certificate Electrical Switchgear
Product Description
High Voltage ISO and Ce Certificate Electrical Switchgear

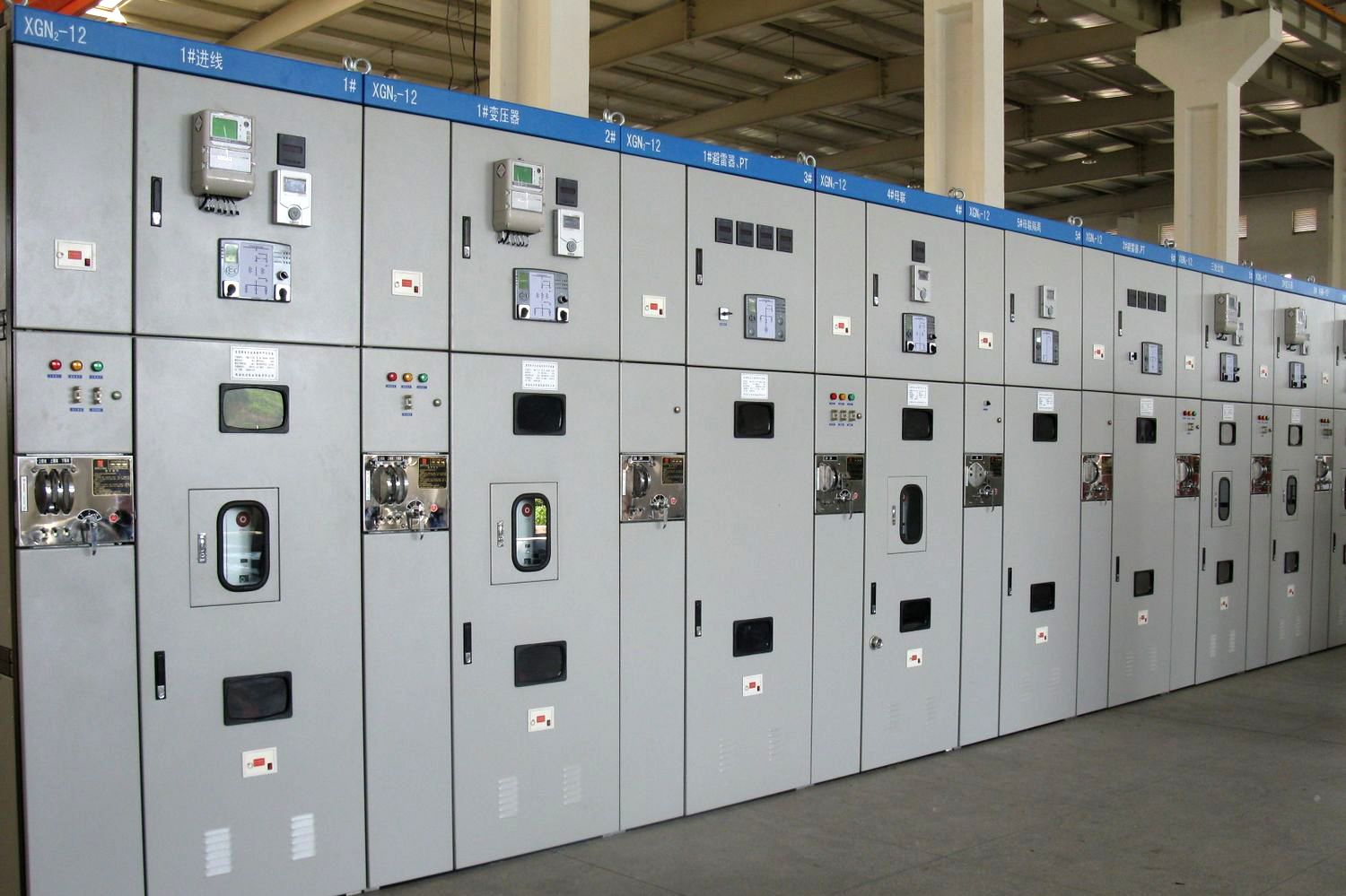

XGN2 type modular high-voltage switchgear cabinet is applied to receive and distribute the electrical energy in 3, 6, 10KV three-phase AC 50HZ system, especially for the frequently operated occasion. Its busbar system is a single busbar (which can derive the single busbar with bypass and double busbar structure). The switchgear cabinet is in line with the requirements of the National Standards GB3906 3-35KV AC Metal-enclosed Switchgear Cabinet and the National Standard IEC298, and there are two proposed "five anti" interlocking functions.
The main switch of the switchgear applies ZN28A-10 series vacuum circuit breakers, equipped with CD117 series of electromagnetic operating mechanism and CT19 series of spring operating mechanism. Using GN-30 rotary isolating switch.
Meet the standard: GB3906-97 3-35KV AC Metal-enclosed Switchgear, GB11022-89 High-voltage Switchgear General Technical Conditions, IEC298 (1990) AC Metal-enclosed Switchgear and Control Equipment With Rated Voltage Above 1kv and 50kv or Below , DL404-97 Order Technical Conditions for Indoor AC High Voltage Switchgear Cabinet.
Features:
1. Metal-enclosed and separately arranged, with high protection Category
2. Enclosure with Front -Cabinet protection and back-cabinet protection, the Board can be arranged and fixed along with the wall to save the spaces
3. Protection Category of enclosure reaches to IP4X,
4. Elec.Line Cabinet with full spaces for mount and arrange in-coming and out-going lines for the convenience of Fixing, protecting and maintaining
Technical Specification
Item | Unit | Specification |
Rated Working Voltage | kV | 7.2,12 |
1Min Power Frequency Withstand Voltage | kV | 32, 42 |
Lightning Pressing Voltage (Whole-Band) | kV | 60, 75 |
Rated Frequency | Hz | 50 |
Main Busbar Rated Currenct | A | 630, 1250, 1600, 2000, 2500, 3150* |
Sub-Busbar Rated Currenct | A | 630, 1250, 1600, 2000, 2500, 3150* |
3S Thermal Stability Currenct (Effective Data) | kA | 16, 20, 25, 31.5, 40, 50 |
Rated Dynamic Stability Currenct (Peak Value) | kA | 40, 50, 63, 80, 100, 125 |
Protection Categoty | | Enclosure:IP4X, CB Compartment open: IP2X |
Environmental Requirement
Normal Operation Conditions
1. Altitude 1000m
2. Ambient temperature: -10°C ~ +40°C (temperature can be as low as -25°C during transportation and storage)
3. Relative humidity: daily relative humidity 95% on average; monthly relative humidity 90% on average
4. Seismic scale of earthquake 8
5. The switchgear is applicable to category II contaminated environment.
Special Operation Conditions
If the switchgear will be used in conditions that exceed the normal environmental conditions, users shall
negotiate with the manufacturer.
Application
The switchgear is mainly used in power plants, small- and mediumsized power generators, industrial and mining enterprises, and secondary substations of power system for power receiving, power transmission, and startup of large-sized high-voltage motor in order to implement control, protection, and monitor.
Company Information
Baoding Zhongyi Electrical material Manufacturing Co., Ltd. is located in Baoding City,Hebei Province,China. with an advantageous geographical location and convenient transportation. Our company covers an area of 30,000 square meters, the building area of 16,000 square meters. The registered capital of the company is RMB 81,000,000.
Our main products:
oil-immersed power transformers,
dry-type transformers,
box-type substation,
medal enclosed ring network power distribution switchgear box
and a variety of special-type transformers.
The hoisting, tooling and testing equipments are complete. Our company has passed the ISO9001-2015 international standard quality management system certification. All performance indicators of the products have reached the relevant national standards and international standards.

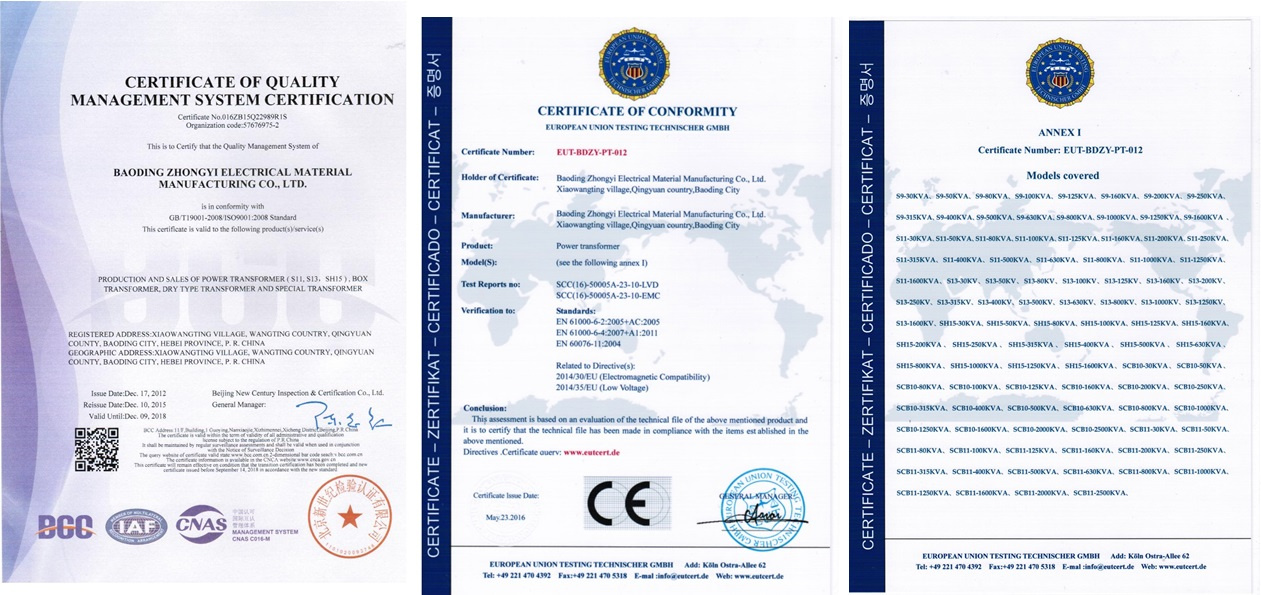

Certificates:
