High Voltage Multi Mode Aerial PBT Opgw Fiber Optic Cable

Name: High Voltage Multi Mode Aerial PBT Opgw Fiber Optic Cable
Brand: all-electronics-online.com
SKU: 822543395
Availability: InStock
Rating: 4.7 (89 reviews)

Price:	US $ 4-6/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	PBT OPGW Fiber Optic Cable
Application:	Communication
Type:	Multi-mode Fiber
Connection Structure:	ST
Certification:	ISO9001
Brand:	Jiapu
Sheath Material:	Acs

Product Description

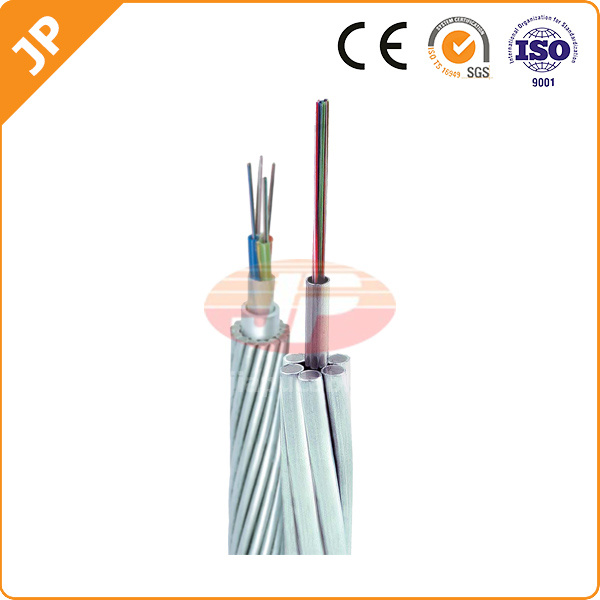

High voltage Multi Mode Aerial PBT OPGW Fiber Optic Cable
Product Description
The Aluminum tube is surrounded by single or double layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires. Good anti-corrosion performance. Material and structure are uniform, good resistance to vibration fatigue.

Specification

opgw-113(87.9;176.9)
Type	single/Double Layer	Structure	Aluminum tube
Fiber Count	24	Material	Aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires
Fiber Type	Singlemode	Installed	High pressure line over 110kv;
Diameter(mm)	12	Weight(kg/km)	500
RTS(KN)	81	Short Circuit(Ka2s)	41
Application	Aerial / ground (earth) wire.	OEM	yes

Standards

ITU-TG.652	Characteristics of a single mode optical fiber
ITU-TG.655	Characteristics of a non-zero dispersion -shifted single mode fibers optical
EIA/TIA598 B	Col code of fiber optic cables
IEC 60794-4-10	Aerial optical cables along electrical power lines-family specification for OPGW
IEC 60794-1-2	Optical fiber cables -part test procedures
IEEE1138-2009	IEEE Standard for testing and performance for optical ground wire for use on electric utility power lines
IEC 61232	Aluminum -Clad steel wire for electrical purposes
IEC60104	Aluminum magnesium silicon alloy wire for overhead line conductors
IEC 61089	Round wire concentric lay overhead electrical stranded conductors .

Henan Jiapu Cable Group is located in Zhengzhou, the capital of Henan province, also politics, culture, economic and transport center. The group has 3 subsidiary companies which specialize in manufacturing and supplying various kinds of wires & cables. With more than 15 years of efforts and development, it has become an influential manufacturer of wires & cables making machinery in China.

The main products are as follows:

Bare Conductor (AAC, AAAC, ACSR, ACAR, AACSR, ACSR/AW)

Aerial Bundled Cable 1kV-35kV (ABC Cable)

PVC Insulated (Flexible ) Wire and PVC Insulated and Sheathed (Armoured) Power Cable

Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable

Welding Cable, Control Cable, Rubber Sheathed Cable

Fiber Optic Cable (OPGW, ADSS, etc. )

Fittings and Accessories (Suspension set, tension set, insulators, vibration dampers, joint box, terminal set, lightning arrester, etc. )

We can design and manufacture wires & cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, etc. Our products have been widely supplied to power utilities, electrical materials distributors and dealers, construction and engineering firms, electrical contractors or industrial companies all over the world, as well as Africa, Middle East, South-east Asia, South America, Central America, North America, Europe, Australia and so on. Welcome your OEM and ODM orders.

We are working hard all the time to improve the production lines, develop new products, focus on customer's needs, and try our best to offer the best professional services, strive to meet the customers' needs. We pursue the aim of "quality, reputation and service first" and adhere to the trade principals of "equality and mutual benefits". We win the trust of domestic customers and customers of different countries. We will take the enterprise spirit of "Unity and Striving, Reality and Innovating, Pioneering and Progressing, Honesty and Being Law-abiding". And we will cordially cooperate with friends of various circles both at home and abroad with a new gesture.
