High Voltage Polymer/Polymeric/Composite Suspension Long Rod Insulator

Name: High Voltage Polymer/Polymeric/Composite Suspension Long Rod Insulator
Brand: all-electronics-online.com
SKU: 694890822
Availability: InStock
Rating: 4.8 (89 reviews)

Price:	US $ 6/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	330KV
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Insulator Material:	Glass, Porcelain, Silicone, Composite Polymer
Application:	High-voltage
Material:	Composite Polymer
Structure:	Suspension Insulator
Type:	A Type Insulator
Color:	Red,Brown
Brand:	OEM

Product Description

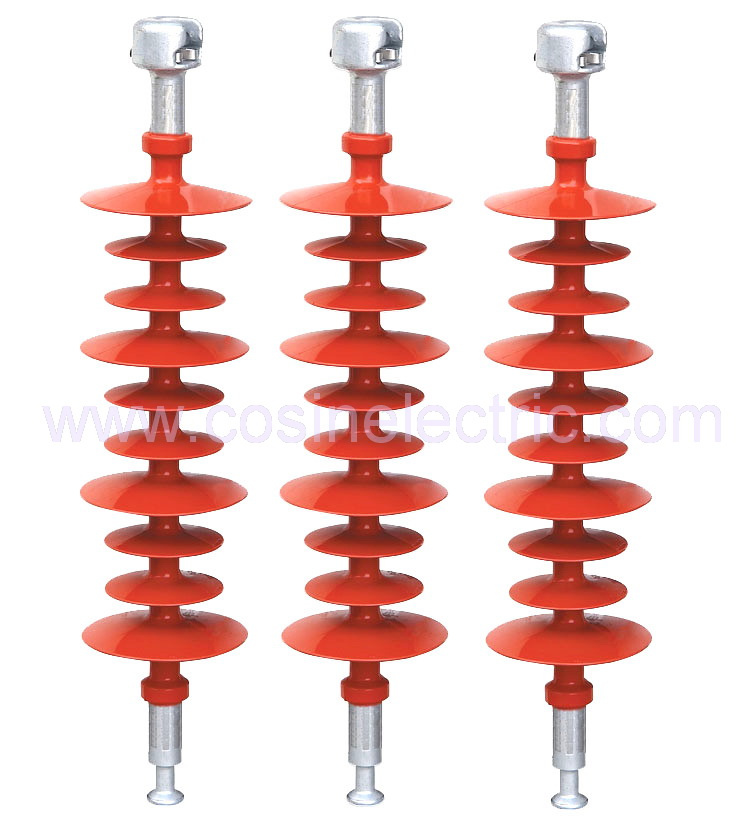

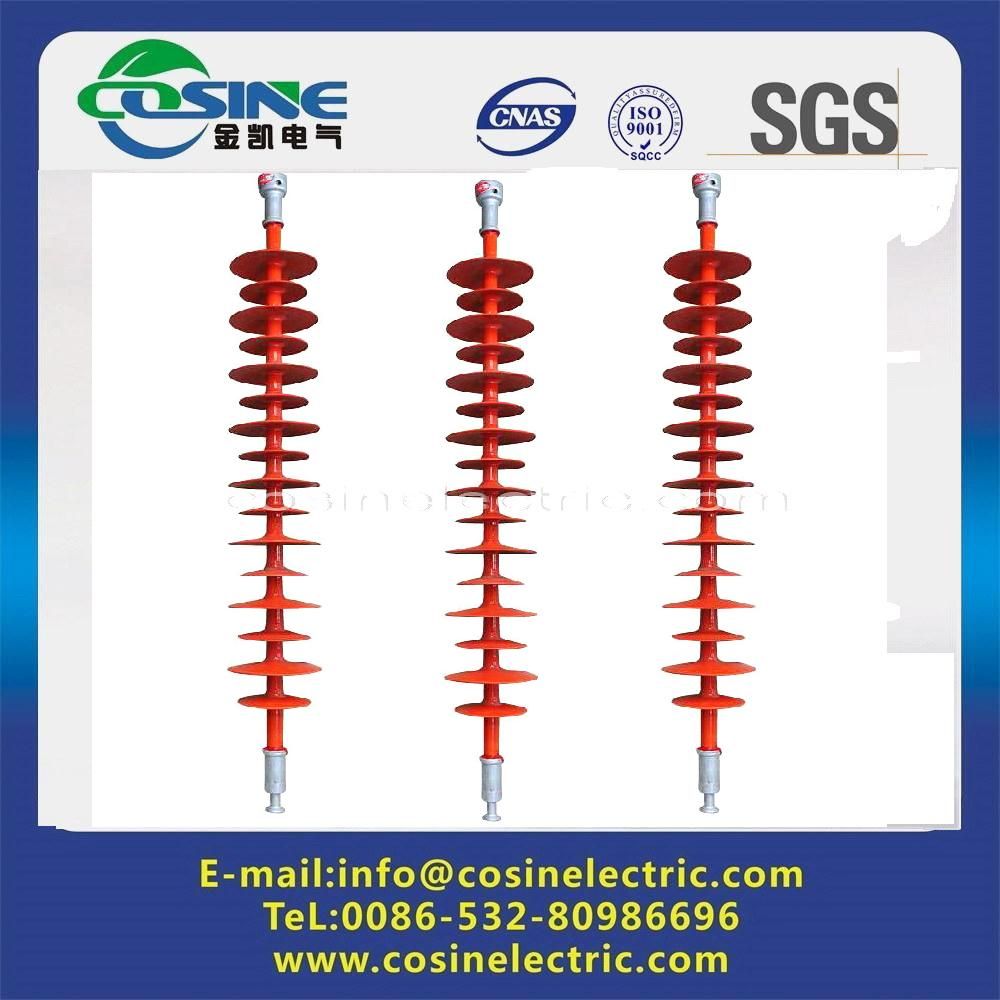

High Volgate Polymer/Polymeric/Composite Suspension Long Rod Insulator

Material	Glass,Procelain,Silicone,Composite/Polymer
Standard	ANSI,IEC,BA,AS...etc
Color	Brown or Grey Glazed
Produce	according to the drawing or specific requirement or sample
Sample	free sample,collected freight

Product as following:
35KV

Technology Data as following:

Code No.	FXWB4-330/100	FXBW4-330/100	FXBW4-330/100
Catalogue No.	QCE-330/100BS	QCE-330/100BS2	QCE-330/100BS3
Rated Voltage (KV)	330	330	330
Specified Mechanical Load(KN)	100	100	120
Section Length (mm)	2930	2930	2990
Min Arc Distance (mm)	2600	2600	2600
Min creepage Distance (mm)	7260	9075	9075
Lightning Impulse Withstand (KV)	1425	1425	1425
Wet Power Frequence Withstand (KV)	570	570	570

---------------------------------------------------------------

Why Choose us?

1. Professional manufacturer of insulators with our own factory;

2. We have excellent quality products with strict quality control process.

3. Products are produced by ourselves, which ensures high quality and lead time

4. Factory Manufacturing Enterprise Provide with you Competitive Price and superior quality

5. A wide range of low and high voltage insulators, from 10KV to 330KV

Any questions or your detailed drawings from you are welcome and will be replied in 24 hours.

Condition of Use:
1. Ambient air temperatures within the range of -40 degree Celsius to +40 degree Celsius;
2. Altitude above sea level not exceeding 1, 000m; (If the altitude is higher than 1, 000, it needs adjust. )
3. Frequency of A. C. Power supply not exceeding 100Hz;
4. The mechanical load no more than the rated value.

Characteristics:
-Small volume and light weight, easy to transport and install
-The superior in performance and high intensity mechanical enhance reliability of power line
-Extraordinary hydrophobic and resistance to contamination
-Long-duration resistance aging and leakage tracking.

Company Profile:
Qingdao Cosine Electrical Equipment specializes in supplying various kinds of insulator and pole line hardware. With high speed of power construction in China and oversea country, Qingdao Cosine has grown into a leader of exporting of insulator in China.
Our products range from10KV-500KV polymer insulator, 40KN-420KN porcelain insulator and various kinds of pole line hardware. All the insulators have been produced by modern equipment as following:

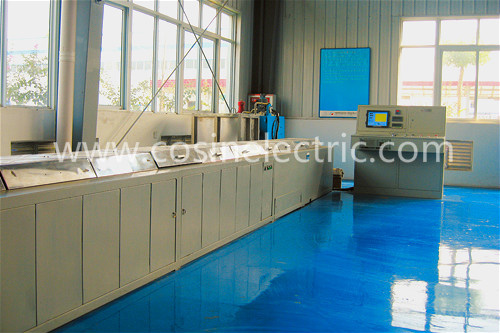

Tensile Strength Tester:

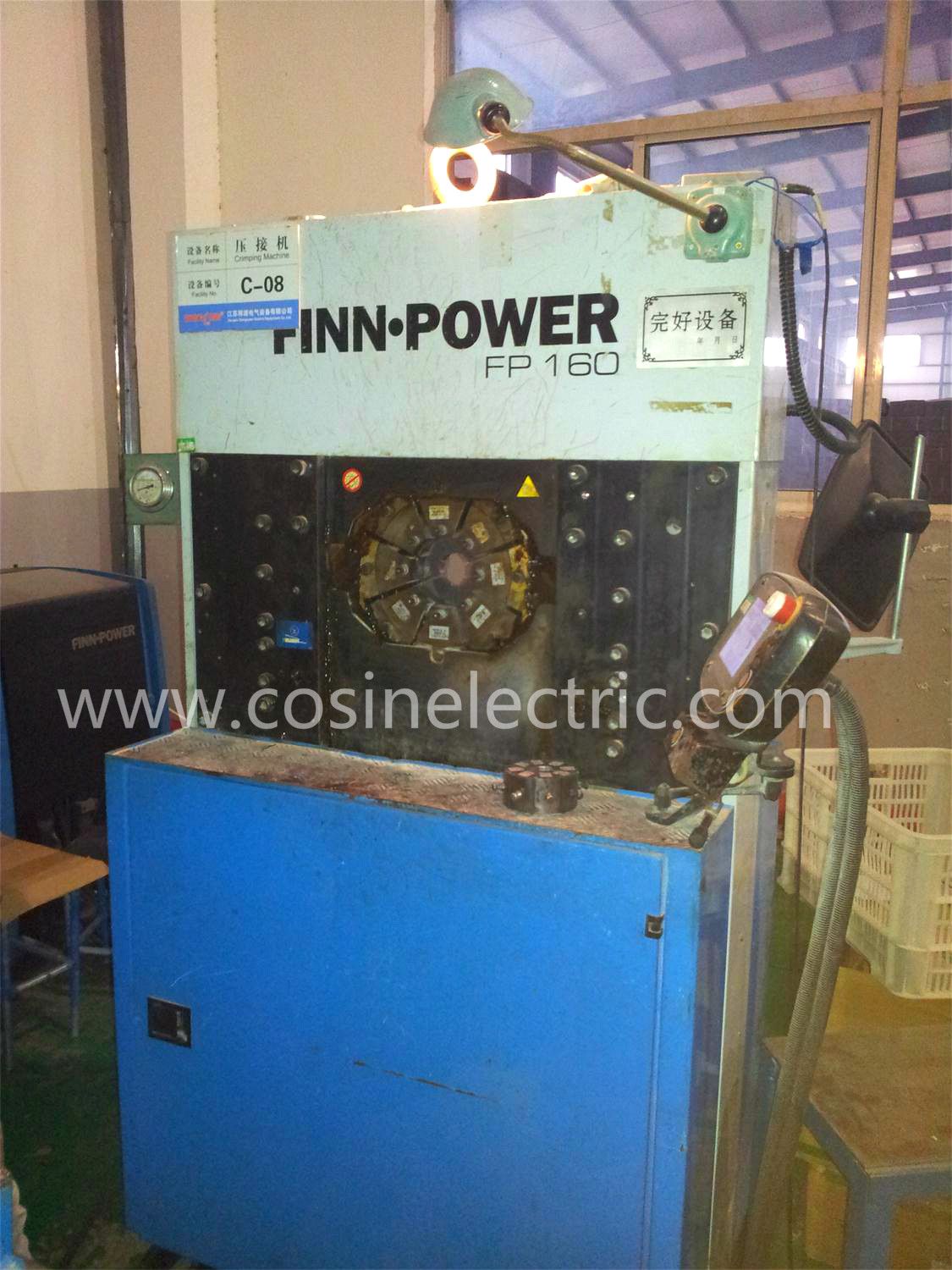

Crimping Machine:

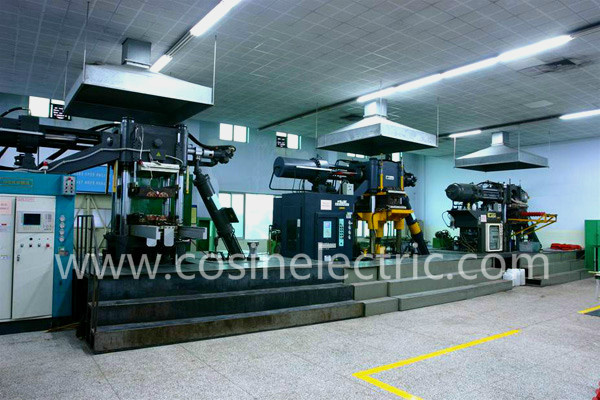

Injection Machine:

Our Services
1. Rich experience in ODM and OEM
2. Excellent One-stop service
3. High Quality Precision Customized forging & Casting services
4. The lowest price
5. Strict quality control
6. Good quality warranty
7. We can manufacture it according to customers requirements.

Hope you will interest in our products,looking forward to your inquiry and developing business with you!

Experience: 16 years producing experience from 1999-2015 for insulator and line hardware

Product: Composite insulator, glass insulator and ceramic insulator

SML: From 40KN to 550KN From AC insulator to DC insulator.

Package: Exported free-fumigation

Quality control: Can do all the test according to IEC

Quality control System: Exactly according to ISO9001: 2000

Exporting Market: USA, Argentina, Mexico, Italy, South Africa, Turkey, Vietnam, France, Chile, etc.

Engineer term: Have 12 engineers to reply all your questions and offer professional service.

Sale term: All the sale man have been trained every month. And offer best service.
