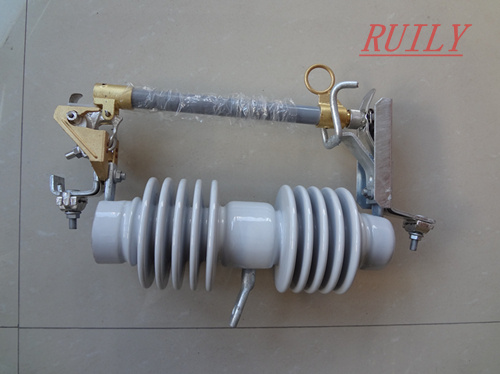

High Voltage Porcelain Drop-out Fuse

Name: High Voltage Porcelain Drop-out Fuse
Brand: all-electronics-online.com
SKU: 670370325
Availability: InStock
Rating: 4.6 (89 reviews)

Price:	US $ 35-50/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	RLF-24/100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	24-27kv
Rated Current:	100A/200A
Breaking Capacity:	High
Usaga:	High Voltage
Standard:	IEC

Product Description

Drop-out fuse cutout and Load switching fuse cutout are the most commonly used protection device between distribution transformer and power distribution line branch. It will prevent transformer and branch lines from short circuit or overload effectively. Also it has features of economic, easy to operate and suitable for outdoor using. Both Polymer and Porcelain type can be manufactured by us.

Model Type:	RLF-9
Rated Voltage:	24-27kV
Rated Current:	100A/200A
Breaking Current:	8000A/10, 000A
Impulse Voltage:	150kV
Power Frequency Withstand Voltage:	65kV
Creepage Distance:	540mm
Weight:	12kg
Dimension:	4834.514mm

ZheJiang Ruili Electric Co., Ltd is an all-around advanced technology enterprise who is turning produce, develop and study together in the industry of high voltage of (power line, power station, locomotive) Composite Insulator, Zinc Oxide Surge Arrester, Fuse Cutout. And Isolateswitch.

Our company bases itself upon high starting-point, high quality, high Level., carries out ISO9001 Quality Management System comprehensively, have established complete Quality Quarantee System. Our company have advanced Researching and Developing, Testing, Produce machines and also have a strong engineering technology team which establishe the steady foundation of guaranteeing the quality of our products. The products of composite insulator, fuse cutout, zinc oxide surge arrester and isolate switch are test eligible by Quality Inspection and Testing Centre of Electric Equipment Ministry of Electric Power, P. R. Of China, and China National Centre for Quality Supervision and Test of Insulators and Surge Arresters.

And the products comform to international IEC61109, IEC60099-4, IEC600282-2, 291, 644, 787and national GB/T16927.1, GB/T8952 GB/T15166\15166.3 standards. Our products are widely sold domestic and abroad which export to South America, Africa, Middle East, Southeast Asia, etc.

Our company has complete sale, logistic, after-sales service and

Consultation system. Link with honest and credit, quality is first, satisfying

The requirement of cutomers is its own responsibility so as to make enterprise, society, workers harmoniously and uniformly.

"Ruili Electric" set up nice future with you together.
