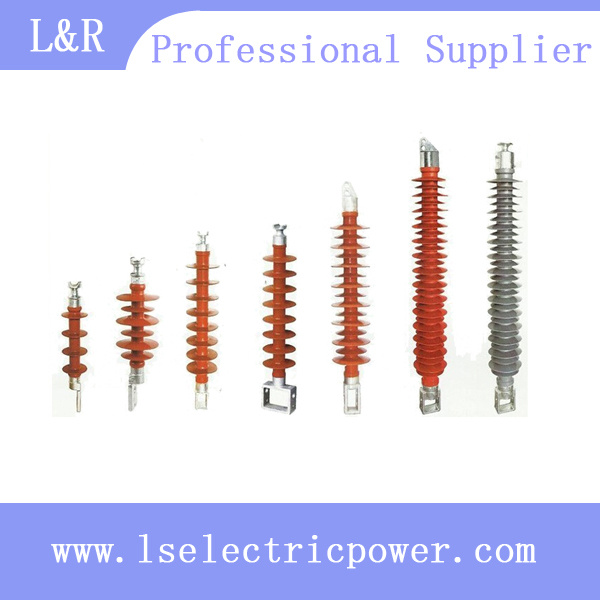

High - Voltage Power Lines Cross Arm Composite Insulator

Name: High - Voltage Power Lines Cross Arm Composite Insulator
Brand: all-electronics-online.com
SKU: 784488165
Availability: InStock
Rating: 4.3 (105 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	FS-10/2.5 and so on
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
ODM And OEM:	Accept
Lead Time:	20days
Material:	Composite Polymer
Application:	High-Voltage and Low-Voltage
Color:	Red and Grey
Brand:	L&R and as Customized

Product Description

Basic infomation
Origin:Yueqing, Wenzhou, Zhejiang, China
Brand name:As customers' requirements
Markets:Global
Packing:Standard package or as clients' requirements

model No.	rated voltage(kv)	rated bending load (kN)	height (mm)	insulation distance(mm)	minimum nomina creepage distance (mm)	Lightning full wave impulse withstand voltage	Power frequency wet withstand voltage
FS-10/2.5	2.5	390	240	370	150	60	60
FS-10/5	10	5	480	320	440	150	60
FS-35/5	35	5	620	480	1200	265	100
FS-35/10	35	10	600	460	1400	265	100
FS-66/5	66	5	1020	800	2000	450	180
FS-66/10	66	10	1020	800	2000	450	180
FS-66/12.5	66	12.5	1020	800	2000	450	180
FS-110/8	110	8	1270	1050	2900	550	230
FS-110/10	110	10	1270	1050	2900	550	230
FS-110/16	110	16	1270	1050	2900	550	230
FS-220/5	220	5	2160	1945	6300	1000	395
FS-220/8	220	8	2018	1800	6300	1000	395

Our Services
1. Rich experience in ODM and OEM
2. Excellent One-stop service
3. High Quality Precision Customized forging & Casting services
4. The best price
5. Strict quality control
6. We warmly welcome you come to visit our factory and seek further cooperation

Zhejiang Lawrence Electric Co., Ltd (referred as L&R) is located in Zhejiang China. It is composed by some branch companies, we also invested some domestic and foreign EPC projects.

L&R has possessed one of the major suppliers in the power and electrical fields for electrical

Projects in the world. Almost all products manufactured by the L&R members have been certified

By KEMA, CE, SGS and CNAS approved Lab.

L&R have been supplying Zinc Oxide Varistors, Surge Arresters, insulators, Fuse Cutouts, Air

Break switch, Load break switch, Vacuum Circuit Breaker, Isolators, Transformers, Switchgear,

Earth rods, Stay Rods, Pole Make Off, Guy grip, stay wire, Crossarm, clamp, bolts, Line hardware

And so on. Our member companies are required to have a long term proven track record of meeting contract

Obligations, superior quality, current technology and state-of-the-art manufacturing facilities.

Over a period of 10 years, our business has extended to South America, Middle East, Southeast

Asia, Africa, and other regions, and we had our sale agent and 4S maintenance company in some countries. To achieve the strategic objective of development, we are seeking for partners

For our sale agent and maintenance company in all the worldwide.
