High Voltage Splicing Semi-Conductive Rubber Electrical Tape

Name: High Voltage Splicing Semi-Conductive Rubber Electrical Tape
Brand: all-electronics-online.com
SKU: 829777185
Availability: InStock
Rating: 5 (102 reviews)

Price:	US $ 0.7/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	KE40
Normal Size:	25mmx0.76mmx5m
Application:	Insulators
Type:	Insulation Tape
Chemistry:	Hybrid Insulation
Material:	Rubber
Thermal Rating:	B 130
Maximum Voltage:	<10KV
Color:	Black
Brand:	Maxwel

Product Description

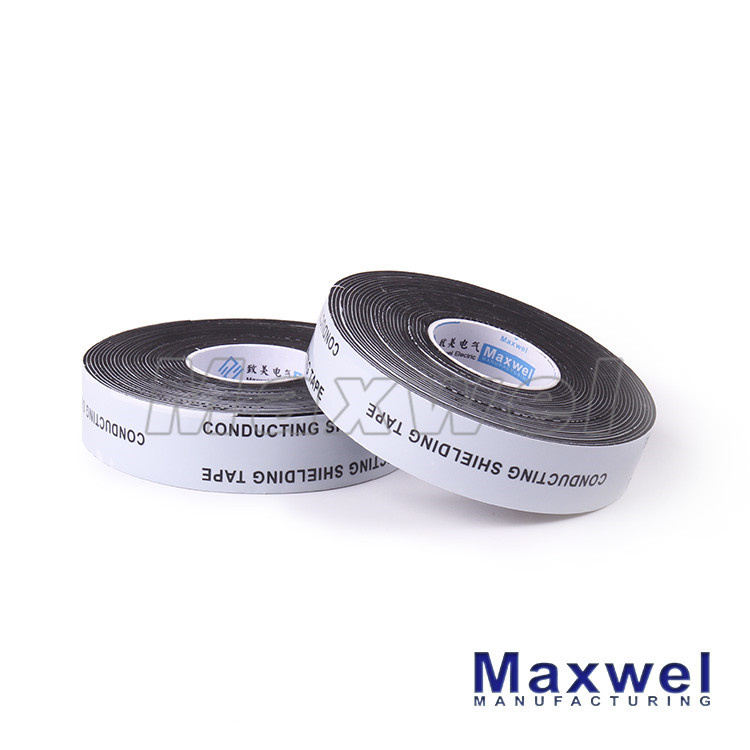

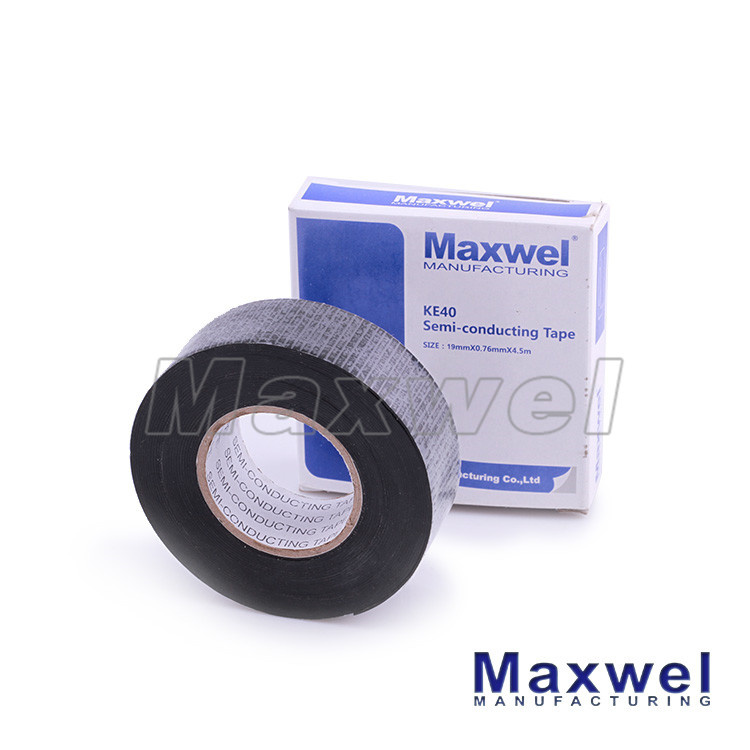

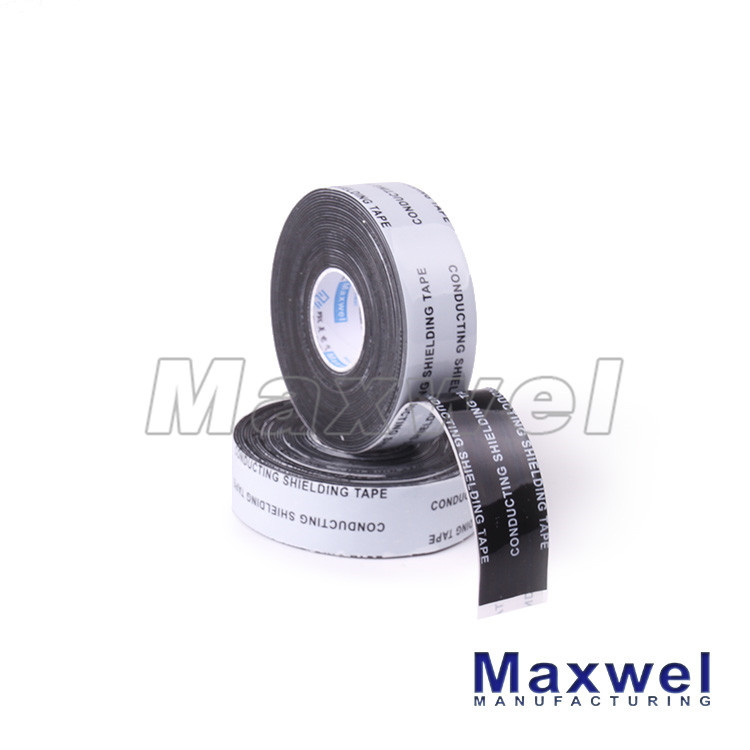

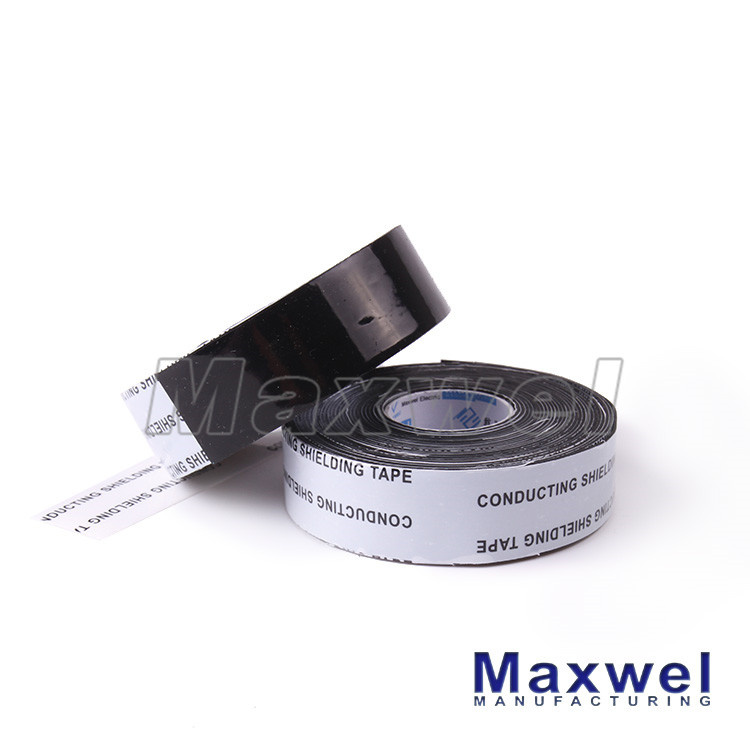

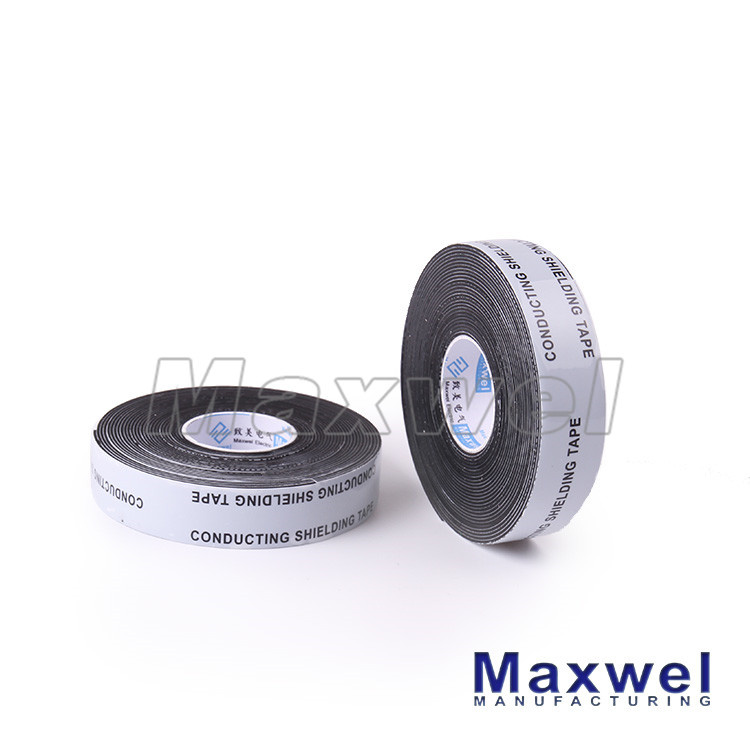

Semi-conductive rubber electrcial tape (KE40)

KE40 tape semi conducting high-voltage splicing tape
Mainly made from semi EPR(Ethylene Propylene Rubber), they are non-vulcanizing and shelf-stable conductivity over a wide temperature range.

Features
Remains stable at 130° C and is non-vulcanizing
Elongates easily to form irregular shapes
Resist cracking, solvents, U. V. And moisture

Application
Electrically rounds-off high voltage connectors and lugs
Provides screen continuation for high voltage joints and termination
Replaces semi-conducting layer beneath metallic shield of damaged cables
Forms conductive portion of stress cones

Size
25mm X 0.76mm X 5m
Special size available

Quality guarantee
Competitive prices

NO	Description	Unit	Spec
1	Tensile Strength	Mpa	≥1.0
2	Elongation	%	≥500
3	Self Adhesion	/	Not loose
4	Thermal Stress Resistance	/	Pass
5	UV Exposure Resistance	/	No cracks
6	Volume Resistivity	Ω, cm	≥10²~10³

Details :

About Maxwel Electric

At Maxwel Electric, we efficiently produce a wide variety of tapes and electrical products. Our factory is ISO 9001: 2000-certified, and our products meet various international standards for easier market entry.

A large range for your selection

You can come to us for self-amalgamating, semi-conducting, butyl, mastic, sealing, PVC and aluminum foil tapes. We also manufacture miniature circuit breakers, residual current circuit breakers, residual current circuit breakers with over-current protection, switch disconnectors, distribution boxes and more.

Contact us

Our factory is equipped with state-of-the-art testing equipment, and we perform inspections during every step of production to ensure quality. To learn more, contact us today.
