High Voltage Tougheded Glass Insulator U300b

Name: High Voltage Tougheded Glass Insulator U300b
Brand: all-electronics-online.com
SKU: 694906852
Availability: InStock
Rating: 4.9 (55 reviews)

Price:	US $ 10/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	U300B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Spl:	300kn
Application:	High-voltage
Structure:	Suspension Insulator
Material:	Glass

Product Description

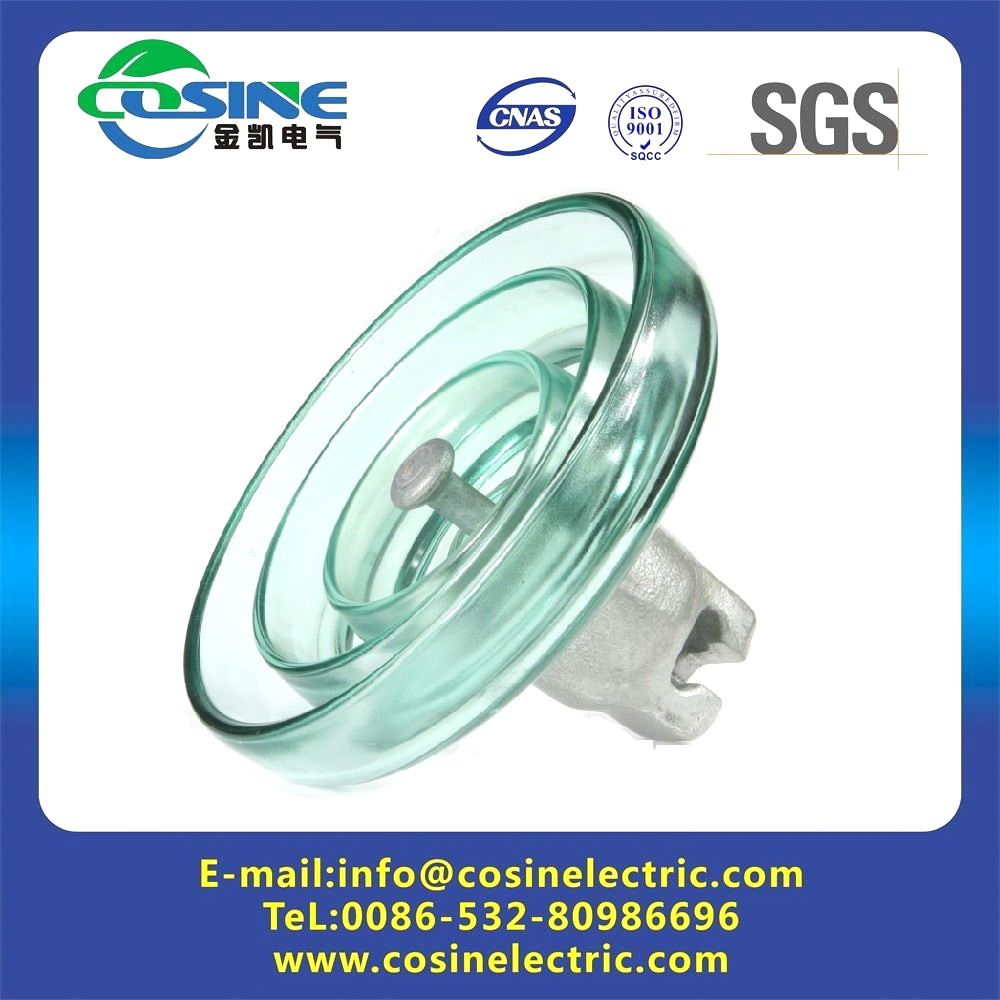

1. Item Name: U300B Toughened Glass Insulator

2. Specified Mechanical Load of U300B toughened glass insulator: 300KN

3. Not only we could produce U300B toughened glass insulator, but also could produce 40KN, 120KN, 160KN, 210KN toughened glass insulator.

Please contact me freely if you have interest on any toughened glass insulator, we will make best price for you.

	U300B/195
Diameter D	320mm
Spacing H	195mm
Creepage L	485mm
Socket soupling	24R
Specified mechanical load	300KN
Power Frequency withstand voltage for Unit	230KV/50KV
Lightning impulse withstand voltage for Unit	520KV/130KV
Power Frequency Puncture voltage	130KV
Radio influence voltage	50µV
Electrical Iron visual test	18KV/20KV
Impulse puncture voltage	2.8p.u
Power Frequency electric arc voltage	0.12s/20kA

Experience: 16 years producing experience from 1999-2015 for insulator and line hardware

Product: Composite insulator, glass insulator and ceramic insulator

SML: From 40KN to 550KN From AC insulator to DC insulator.

Package: Exported free-fumigation

Quality control: Can do all the test according to IEC

Quality control System: Exactly according to ISO9001: 2000

Exporting Market: USA, Argentina, Mexico, Italy, South Africa, Turkey, Vietnam, France, Chile, etc.

Engineer term: Have 12 engineers to reply all your questions and offer professional service.

Sale term: All the sale man have been trained every month. And offer best service.
