High Voltage Usage IEC Safety Fuse Link

Name: High Voltage Usage IEC Safety Fuse Link
Brand: all-electronics-online.com
SKU: 775020155
Availability: InStock
Rating: 4.3 (61 reviews)

Price:	US $ 0.348-0.39/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	IT/IK
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Copper
Rated Current:	1-200A
Rated Voltage-1:	11-27kv
Rated Voltage-2:	33-38kv
Application:	High Voltage
Breaking Capacity:	High
Type:	Current Fuse
Usaga:	High Voltage
Shape:	Type T/Type K
Standard:	IEC-282

Product Description

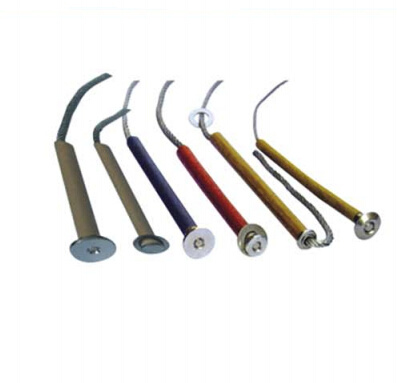

High Voltage K type 11-27KV Fuse Link for cutout fuse

Fuse Link is designed for 11kV to 38kV dropout fuse cutouts, characterized by perfect time current characteristics, high mechanical strength and reliable arc-extinguishing performance, etc. The fuse link is a perfect choice for upgrading the protection level of the fuse cutout.

Model: K and T type
Standard: IEC-282
Rated Voltage: 11~27KV, 33~38KV

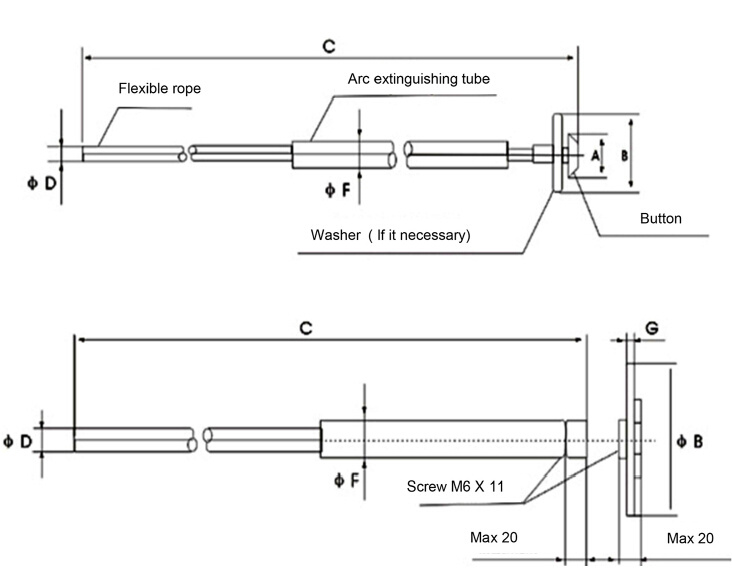

Rated Current	Size					QTY/CTN
Rated Current	A	B	C	D	F	QTY/CTN
1-25	12.5-0.2	19.0-0.2		2.0	8.0	500
30-40	12.5-0.2	19.0-0.2		3.0	8.0
50-75	19.0-0.2	Not Applicable		4.0	10.0
100-120				5.0	10.0	250
140-200				7.0	12.0	250
