| Prod Model: |
ZW32 |
| Breaking Capacity: |
High Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
High-Speed Circuit Breaker |
| Arc-extinguishing Medium: |
SF6 |
| Installation: |
Fixed |
| Structure: |
MCCB |
| Poles Number: |
3 |
| Certification: |
ISO9001-2000 |
Product Description

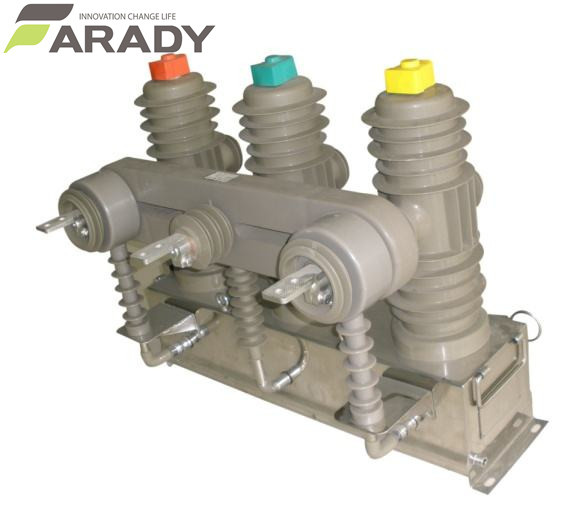

Production DescriptionZW32-12 is applied to three-phase AC 50Hz, rated voltage is 7.2 ~ 12kV of outdoor high voltage switch equipments.Circuit breaker in accord with the national standard GB1984 "high voltage AC circuit breaker" and "professional standards JB3855 3.6 ~ 40.5kV outdoor AC high-voltage vacuum circuit breaker" and the related IEC standards. Pole Mounted Circuit Breaker is widely used in10KV distribution network(power plant and substation for electric equipment control and protection),substations,industrial companies,mining companies etc.A circuit breaker having repeatedly interrupting and fast re-closing ability.
Main Technical Parameter| No. | Item | Unit | Value |
| 1 | Rated voltage | KV | 12 |
| 2 | Rated insulation level | Rated lightning impulse withstand voltage(peak) | KV | 75/80 |
| Short-time power frequency withstand voltage(1min) | KV | 42/48 |
| 3 | Rated short-circuit breaking current | KA | 16 | 20 |
| 4 | Rated Current | A | 630 | 630 |
| 5 | Rated Peak Withstand Current | KA | 40 | 50 |
| 6 | Rated Operations of Short-circuit Breaking Current Interruption | Times | 30 |
| 7 | movable and fixed contact permission abrasion thickness | mm | 3 |
| 8 | Rated operations sequence | | O-0.3S-CO-180S-CO |
| 9 | Rated power voltage of closing and opening operating loop | V | AC,DC220 AC,DC110 |
| 10 | Opening time | ms | 20-40 |
| 11 | Closing time | ms | 30-60 |
| 12 | weight | kg | 85 |
| 13 | Work current for overcurrent trip coil | A | 5 |
| 14 | Mechanical life | Times | 30000P |

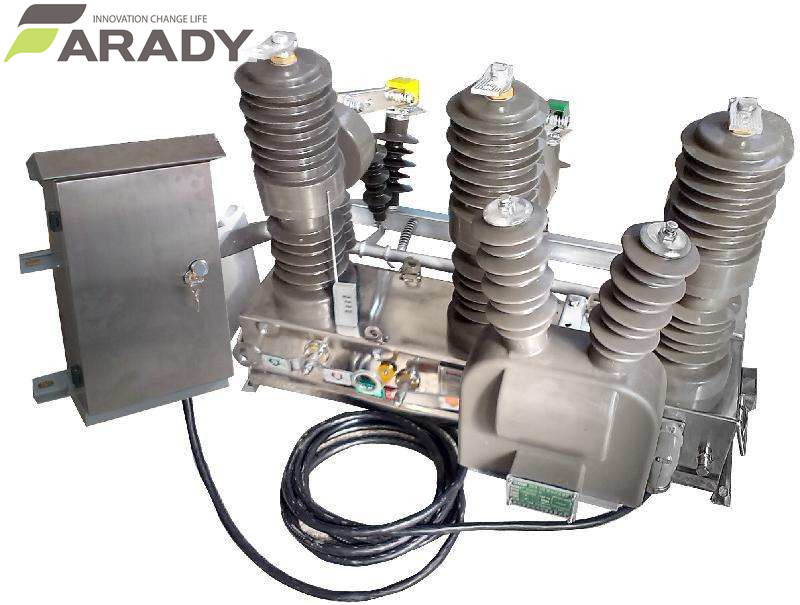

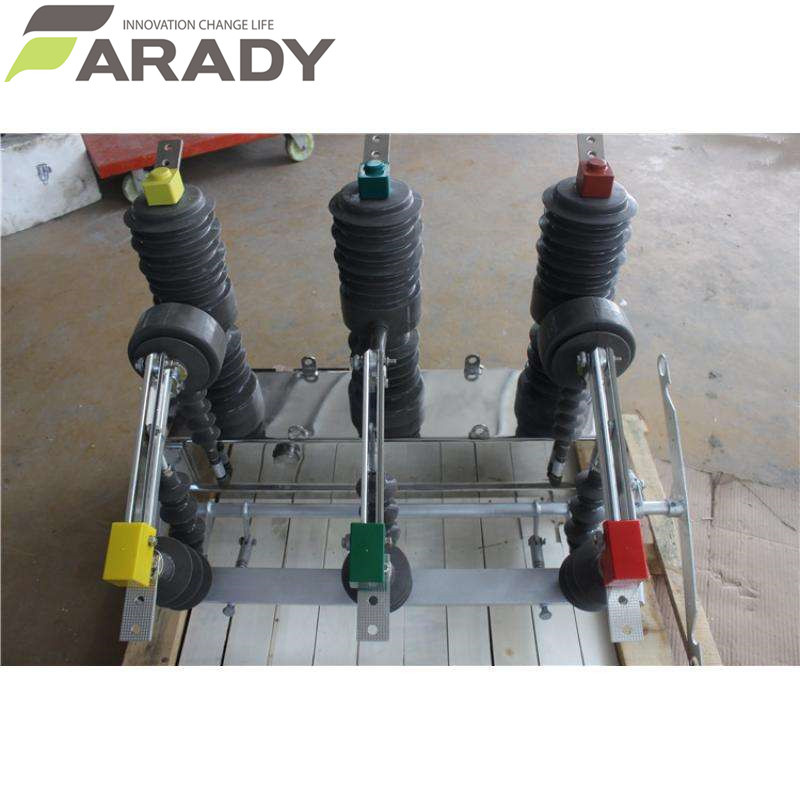

Production Show

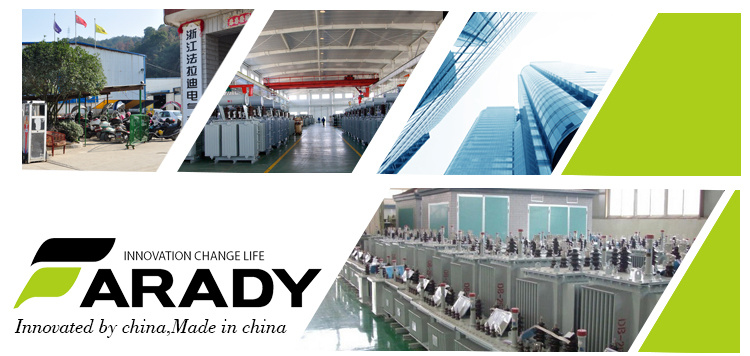

Company Profile
