High Voltage XLPE Insulated Power Cable

Name: High Voltage XLPE Insulated Power Cable
Brand: all-electronics-online.com
SKU: 696349252
Availability: InStock
Rating: 4.3 (120 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YJV/YJV22/YJV32
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Port Of Loading:	Tianjin, Qingdao, Ningbo, Shanghai, Xiamen,
Payment Term:	L/C, D/P, D/a ,T/T, M/T, D/D, O/a, C.W.O, C.O.D, C
Capacity:	5000km//Month
MOQ:	1km
Delivery Length:	Accord with The Request
Application:	Power Station
Voltage:	High Voltage Cable
Current:	AC Cable
Insulation Material:	XLPE
Certification:	SABS
Brand:	Henan Jiapu

Product Description

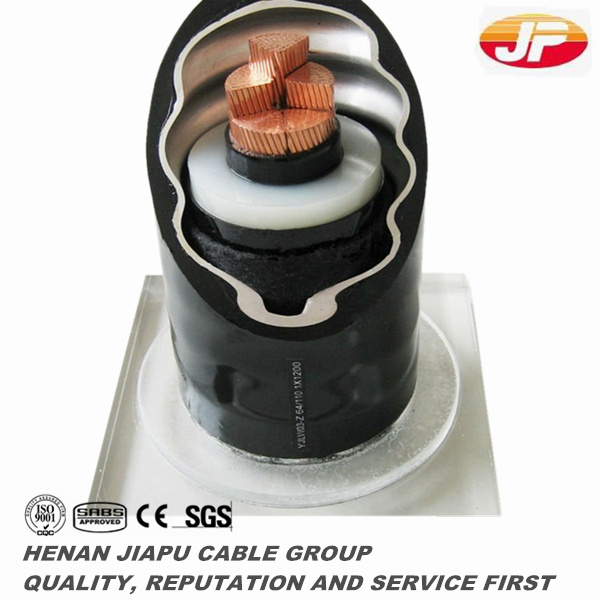

High Voltage XLPE Insulated Power Cable

Application:
The products are used to transmit and distribute power in transmission and distribution system of 110kV or lower.They are applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable and in partial replace of PVC insulated power cable.

Operating Property:
1. Installation temperature: ≥0°C
2. Long-term permissible operation temperature: ≤90°C
3.Under the condition of short circuit (the max. continuing time should not exceeding 5 seconds), the max. operation temperature:250°C
4.Minimum bending radius:
Single-core cable: 20 X overall diameter
Multi-core cable: 15 X overall diameter
5.Suitable environment:
Direct burial in the ground and the capacity of bearing certain mechanical force, not be proper in the pipeline

Specification:
1.Standard of Production: IEC 60840 AS/NZS1429.2 VDE 0276-632
2.Rated voltage: 38/66kV, 48/66kV,64/110kV
3.Shape of Conductor: round ,sectored
4.Number of cores: Single
5.Nominal Section Area:
240SQMM, 300SQMM, 400SQMM, 630SQMM, 800SQMM, 1000SQMM, 1200SQMM, 1400SQMM, 1600SQMM, 1800SQMM, 2000SQMM, 2500mm2

Constructuin:

Construction Cable Type (power cable)	Conductor		Insulation	Screen	Armor				Outer Sheath
Construction Cable Type (power cable)	Aluminum	Copper	XLPE	SCT	SW	ST	DST	AW	PVC	PE
Cu/XLPE/PVC		P	P	P	---	---	---	---	P
Cu/XLPE/PE		P	P	P	---	---	---	---		P
Al/XLPE/PVC	P		P	P	---	---	---	---	P
Al/XLPE/PE	P		P	P	---	---	---	---		P
Cu/XLPE/STA/PVC		P	P	P	---	P	---	---	P
Cu/XLPE/STA/PE		P	P	P	---	P	---	---		P
Al/XLPE/STA/PVC	P		P	P	---	P	---	---	P
Al/XLPE/STA/PE	P		P	P	---	P	---	---		P
Cu/XLPE/DSTA/PVC		P	P	P	---	---	P	---	P
Cu/XLPE/DSTA/PE		P	P	P	---	---	P	---		P
Al/XLPE/DSTA/PVC	P		P	P	---	---	P	---	P
Al/XLPE/DSTA/PE	P		P	P	---	---	P	---		P
Cu/XLPE/SWA/PVC		P	P	P	P	---	---	---	P
Cu/XLPE/SWA/PE		P	P	P	P	---	---	---		P
Al/XLPE/SWA/PVC	P		P	P	P	---	---	---	P
Al/XLPE/SWA/PE	P		P	P	P	---	---	---		P
Cu/XLPE/AWA/PVC		P	P	P	---	---	---	P	P
Cu/XLPE/AWA/PE		P	P	P	---	---	---	P		P
Al/XLPE/AWA/PVC	P		P	P	---	---	---	P	P
Al/XLPE/AWA/PE	P		P	P	---	---	---	P

Henan Jiapu Cable Group is located in Zhengzhou, the capital of Henan province, also politics, culture, economic and transport center. The group has 3 subsidiary companies which specialize in manufacturing and supplying various kinds of wires & cables. With more than 15 years of efforts and development, it has become an influential manufacturer of wires & cables making machinery in China.

The main products are as follows:

Bare Conductor (AAC, AAAC, ACSR, ACAR, AACSR, ACSR/AW)

Aerial Bundled Cable 1kV-35kV (ABC Cable)

PVC Insulated (Flexible ) Wire and PVC Insulated and Sheathed (Armoured) Power Cable

Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable

Welding Cable, Control Cable, Rubber Sheathed Cable

Fiber Optic Cable (OPGW, ADSS, etc. )

Fittings and Accessories (Suspension set, tension set, insulators, vibration dampers, joint box, terminal set, lightning arrester, etc. )

We can design and manufacture wires & cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, etc. Our products have been widely supplied to power utilities, electrical materials distributors and dealers, construction and engineering firms, electrical contractors or industrial companies all over the world, as well as Africa, Middle East, South-east Asia, South America, Central America, North America, Europe, Australia and so on. Welcome your OEM and ODM orders.

We are working hard all the time to improve the production lines, develop new products, focus on customer's needs, and try our best to offer the best professional services, strive to meet the customers' needs. We pursue the aim of "quality, reputation and service first" and adhere to the trade principals of "equality and mutual benefits". We win the trust of domestic customers and customers of different countries. We will take the enterprise spirit of "Unity and Striving, Reality and Innovating, Pioneering and Progressing, Honesty and Being Law-abiding". And we will cordially cooperate with friends of various circles both at home and abroad with a new gesture.
