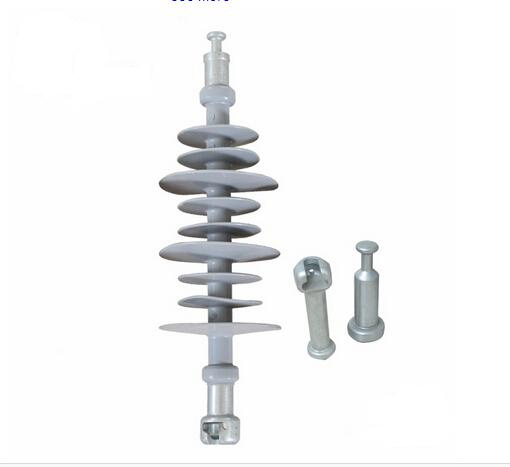

Higher Tensile Strength Polymer Composite Insulator

Name: Higher Tensile Strength Polymer Composite Insulator
Brand: all-electronics-online.com
SKU: 620962402
Availability: InStock
Rating: 4.3 (102 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JMA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pin Insulators:	Suspension Insulators
Application:	High-temperature
Material:	Porcelain
Structure:	Post Insulator
Type:	B Type Insulator

Product Description

This product is suitable for high voltage line facilities,technical reform of city network,polluted area,power facilities,line use,high voltage line hard jumper,high voltage transmission lines,high speed railway and city light rail traffic construction,etc.

Basic Data

Type	No. Of Sheds	"X" Length inches (mm)	Diameter Inches (mm)		Leakage Distance Inches (mm)	Dry Arc Distance inches (mm)	Lighting withstand voltage	Wet power frequency voltage	Coupling size	SML Pounds (kN)
Type	No. Of Sheds	"X" Length inches (mm)	D	d	Leakage Distance Inches (mm)	Dry Arc Distance inches (mm)	Lighting withstand voltage	Wet power frequency voltage	Coupling size	SML Pounds (kN)
FXBW-10/70	4	310	105	75	350	152	90	40	16	70
FXBW-36/40	9	440	130	90	950	320	230	150	16	40
FXBW-36/100	9	483	130	90	950	320	230	150	16	100
FXBW-35/70	12	660	135	110	1600	526	230	150	16	70
FXBW-35/100	12	680	135	110	1600	526	230	150	16	100
FXBW-66/70	20	980	135	110	2500	826	410	185	16	70
FXBW-66/100	20	1000	135	110	2500	826	410	185	16	100
FXBW-66/120	20	1040	135	110	2500	826	410	185	16	120
FXBW-110/70	26	1190	135	110	3500	1050	550	250	16	70
FXBW-110/100	26	1210	135	110	3500	1050	550	250	16	100
FXBW-110/120	26	1250	135	110	3500	1050	550	250	16	120
FXBW-220/120	54	2470	150	120	6300	2130	1000	395	16	120
FXBW-220/210	56	2470	170	120	6300	2155	1000	395	20	210

Service
Choose our products! You'll get
1) Good quality guarantee (2 years)
2) Factory direct prices
3) On time delivery
4) Free sample
5) Professional technology support

Strict quality controls have been taken to ensure that you'll get reliable products.
a. Material checks before production .
b. Random inspection during production .
c. Inspection before the shipment.

Our products fully comply with well recognized standards such as IEC, BS, ANSI.

FAQ:
1. Q: Do you have a catalog? Can you send me the catalog to have a check of all your products?
A: Yes, We have product catalog. Please contact us, we'll send our catalog by E-mail.

2 Q: I can't find the product on your catalog, can you make this product for me?
A: Our catalog shows most of our products but not all. If you couldn't find it, let us know the specification of your requirements, it usually takes 20-30 days for us to design and make new moulds which match your requirements.

3 Q: What's your payment term?
A: The price FOB Ningbo under payment term is 50% T/T in advance and the balance before shipment.

Chongqing Ziyong Technology Co., Ltd(Wenzhou(Yueqing) Ziyong Electrical Co., Ltd )is a professional supplier and exporter of electric cable connectors and fittings. Our products include a wide range of Aerial Electrical Fittings (Main products like: Insulation piercing connectors, suspension clamps, anchor clamp, etc. ); A variety of Electric Power Fittings (PG clamps, Aluminium alloy stain clamps, wedge clamps, earth rod); Various kinds of terminals, lugs and link fittings; And many other products for power line system.

Our products are widely used in LV & MV power line system. All of our products with highest quality. We are CE certified, have the ISO9001: 2000 certificate, all the produce is according to International Standard, such as NFC, GB and so on. We also offer OEM service of customized requests. We owns the most advanced technology. Have the ability to research and design electricala apparatus by ourselves.

We also hope that we can receive the feedback from you on evaluating our products, offering your good ideas. Let us build up international quality in China together!
