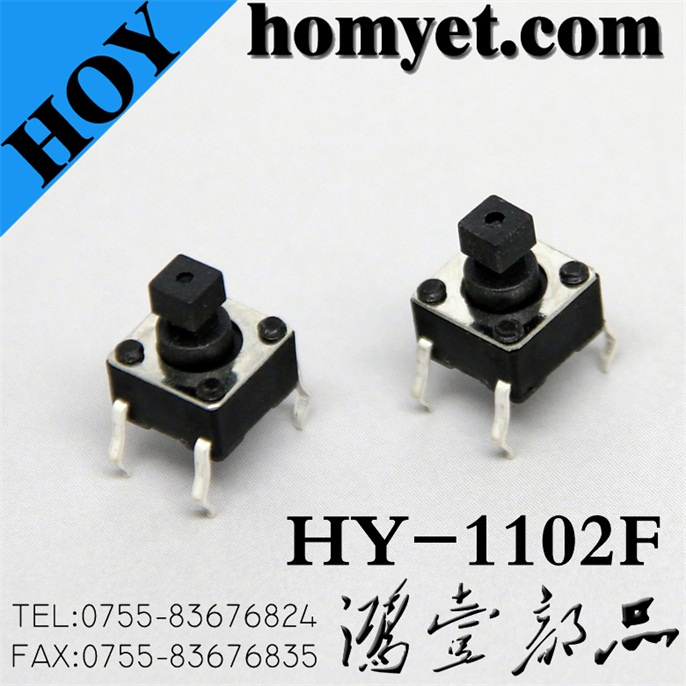

Hight Quality Manufacturer Tact Switch with 4 Pin DIP (HY-1102F)

Name: Hight Quality Manufacturer Tact Switch with 4 Pin DIP (HY-1102F)
Brand: all-electronics-online.com
SKU: 741673975
Availability: InStock
Rating: 4.9 (42 reviews)

Price:	US $ 0.05-0.15/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	2000/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

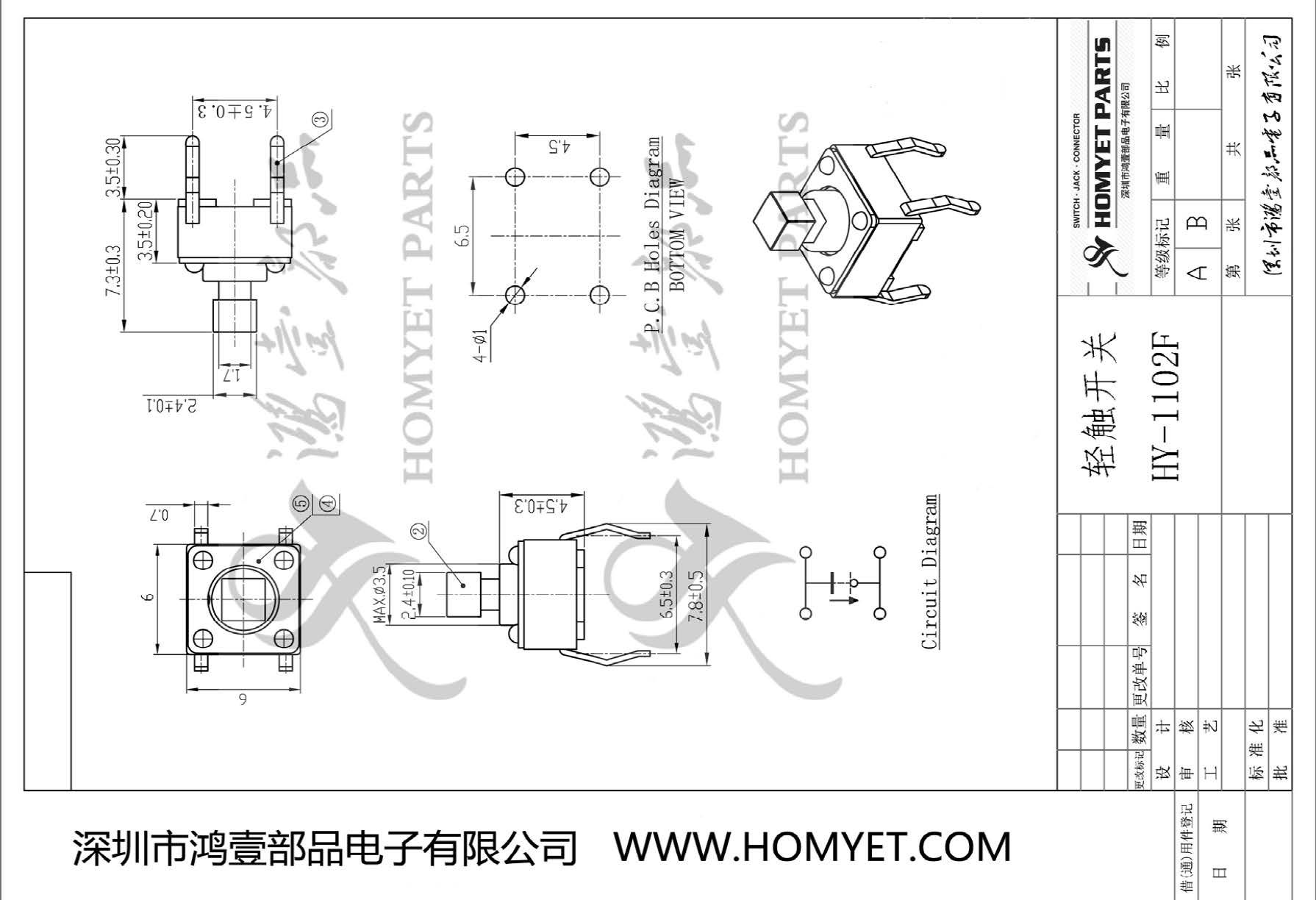

Prod Model:	HY-1102F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	667.3mm
Application:	Computer Products
Shape:	Flat
Installation Form:	Insert Welding
Shrapnel:	Silver
Structure:	1-Point Contact
Package:	DIP Plug Taping Package

Product Description

Features
1. Micro-Miniature, light operating
2. It has good feeling and long life
3. Snap-in type, can be mounted directly on P. C. Board and good for electrostatic discharge
4. It has a lot of choices for button shape and height and it is easily to install

Basic specfication parameter
Electrical Characteristics:
1. Contact Resistance: ≤ 100m Ω
2. Insulation Resistance: ≥ 100m Ω DC250V
3. Withstand Voltage: AC500V 1 Minute
4. Electrical Life: 50, 000Cycles above(Load)
Mechanical/reliability Characteristics:
1. Operating force: 160± 50gf
2. Mechanical life: 100, 000cycles(Min)
3. Operating temperature range: -25º C+80º C
4. Ambient humidity used: ≤ 85%RH
5. Solder Ability: 245º C± 5º C 3S
6. Withstand soldering temperature: 260º C± 5º C 3S

Welding conditions
1. Hand soldering
Use a soldering iron of 30 watts, controlled at 350º C approximately 3 seconds while solder applying
2. Wave soldering/Reflow Soldering
The peak temperature of the wave oven should be set to 260º C max. Condition for soldering temperature profile

Material
1. Deystoke: Nylon/PBT Black
2. Base: Nylon/PBT
3. Contact: Copper-Silver Composite
4. Shell: IRON Tin-plated
5. Terminal: Brass Plating silver

Applications
They can operate all types of electronic equipment such as the computer, telephone, PDA, DVD digital camera, audio equipment, instrument and meter equipment, autoimmunization equipments control etc.

Basic specfication Parameter
Electrical Characteristics	Rating	DC12V 50mA
	Contact Resistance	≤100m Ω
	Insulation Resistanc	≥ 100m Ω DC250V
	Withstand Voltage	AC500V 1 Minute
	Electrical Life	See detail spec
Mechanical/Reliability Characteristics	Operating Force Range	300±50gf
	Mechanical Life	50,000 Cycles (NO Load)
	Operating Temperature Range	-25ºC+ 80ºC
	Ambient Humidity Used	≤85%RH
	Solder Ability	245ºC ±5ºC 3S
	Withstand Soldering Temperature	260ºC ±5ºC 3S

together.

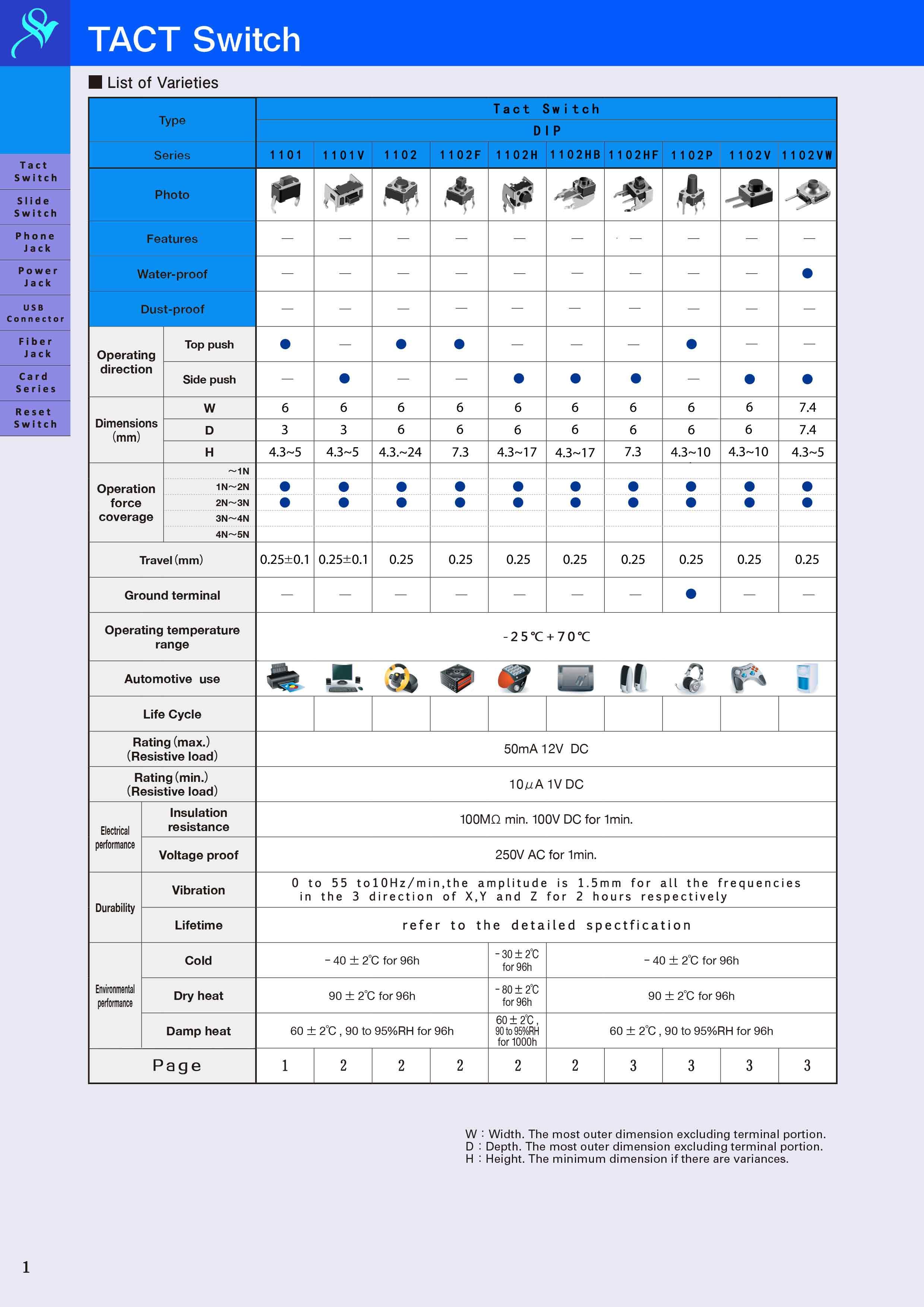

Product Specifications

.

Operation temperature range	-30ºC to +85ºC
Rating	50mA 12V DC
Insulation resistance	100MΩ min.100V DC
Dielectric strength	250V AC for 1min
Contact resistance	100mΩ max
Travel	0.25±0.05mm
Operating fore	90gf/180gf/250gf/400gf
Life time	50000-1000000cycles
