Hight Voltage Frequency Converter High Power Motor Speed Controller
| Price: |
US $ 65-195/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
S2800E |
| Product Name: |
AC Drive Frequency Converter |
| Control Method: |
V/F Control,Vector Control |
| Input Voltage Range: |
220V,380V,660V |
| Output Voltage Range: |
220V,380V,660V |
| Power Range: |
220V(0.4-3.7kw);380V(0.75-1000kw);660V(11-660kw) |
| Output Current: |
2.3A-1720A |
| Certificate: |
Ce;ISO9001 |
| Protection: |
IP20 |
| Phase: |
One or Three Phase |
| Pid Function: |
Built in |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
Machtric |
Product Description

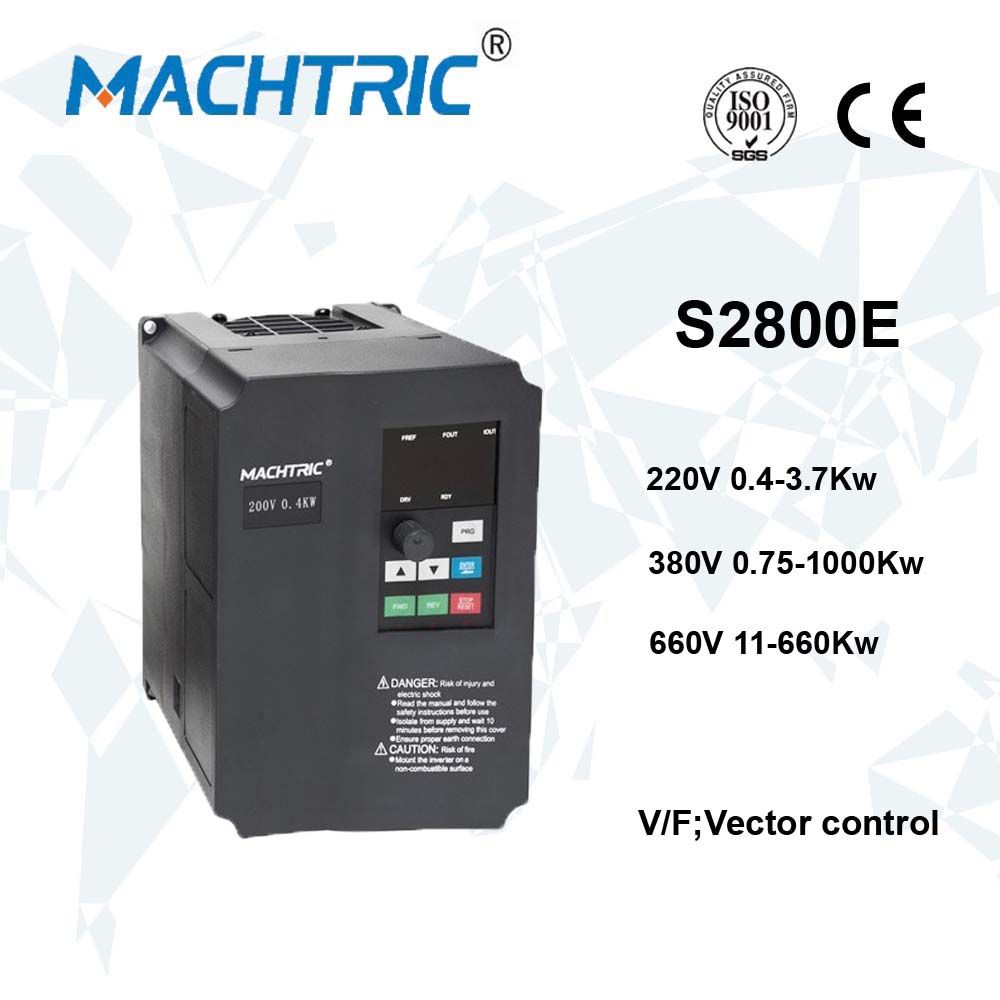

Hight Voltage Frequency Converter High Power Motor Speed Controller
Product description
| Model | S2800 E |
| Input | Rated Voltage& Frequency | Single phase AC 220V/47~63Hz
Three-phase AC 380V/47~63Hz |
| Voltage Allowable Range | 220/380 ±15% |
| Output | Output Voltage Range | 1~rated input voltage |
| Output Frequency Range | 0~600Hz |
| Technical | Control Mode | Sensorless Vector Control, V/F control |
| Overload Capacity | 150% rated current in 60s;180% rated current in 10s |
| Start Torque | 0.5Hz/150% with vector senserless control |
| Adjustment Ratio | 1:100 with vector senserless control |
| Speed Control Accuracy | Maximum speed ±0.5% with vector senserless control |
| Carrier Frequency | 0.5~15Hz |
| Programmable Digital Input | 4 terminals |
| Programmable Analog Input | FIV:0~10V, FIC:0~10V or 0~20mA |
| Coupling Output | 1 set |
| Relay Output | 1 set |
| Analog Output | 1 set-option of 4~20mA/ 0~10V |
| Function | Frequency Setting | Digital, Analog, Series communication, Multi-Speed, PID, etc |
| PID Function | Built in |
| Multi-speed Function | 8 speeds |
| Adjustable frequency | Stable frequency |
| Off Power | Keep running in power off instantly |
| Jog Key Function | Multi-function setting by Users |
| Voltage Adjustment | Auto maintain output voltage stable in changing of power |
| Failure Protection | 25 types of failure protection:Over current, over voltage, low voltage,
Over heat, short phase, over load, etc, |
