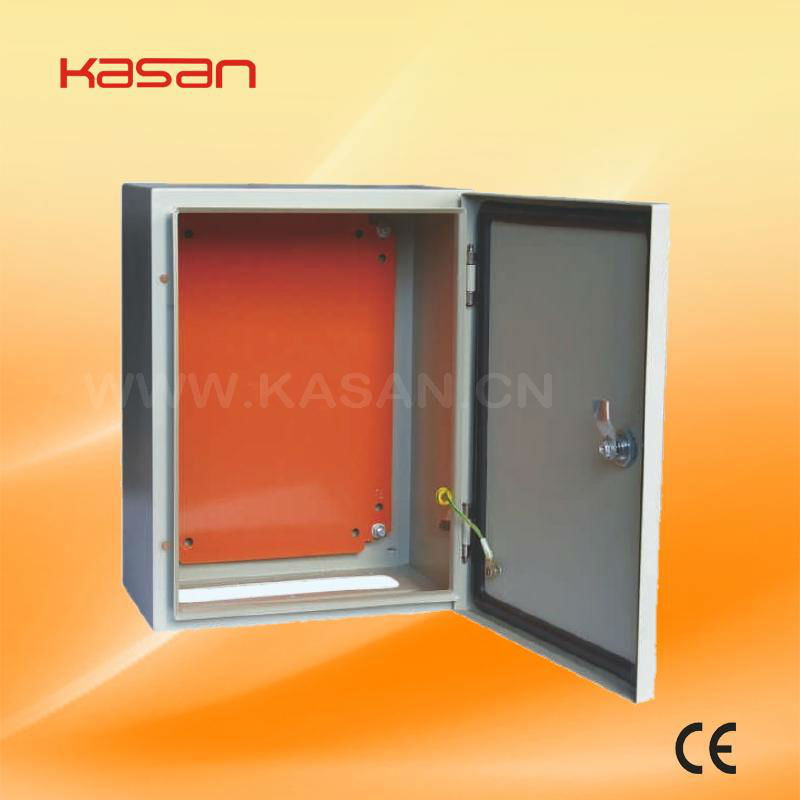

Himl Distribution Box

Name: Himl Distribution Box
Brand: all-electronics-online.com
SKU: 690280632
Availability: InStock
Rating: 4.3 (59 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	box
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Ral7032.Ral7035
Thickness:	1.5mm 2mm
Type:	Distribution Metering Box
Structure:	Protection

Product Description

Specifications
1.Material :sheet steel
2.Color:Ral7032 or Ral7035
3.Mounting plate:Orange or Galvanized
4.CE,IP66,RoHS
1. Matterial: Sheet steel
2. Paint finish: Both externally and internally
3. Protected with epoxy polyester coating
4. Textured finish RAL7032 or RAL7035
5. Mounting plate: Powder coated similar to RAL2000 or galvanized
6. IP rate: IP65
7. Certificate: CE, RoHS
8. Supply include: Enclosure door, mounting plate, gland plate sealing gasket

Height	Width	Depth	Reference
250	200	150	BJS1-2520/150
300	250	150	BJS1-3025/150
300	250	200	BJS1-3025/200
300	300	150	BJS1-33/150
300	300	200	BJS1-33/200
300	400	200	BJS1-34/200
400	300	150	BJS1-43/150
400	300	200	BJS1-43/200
400	400	200	BJS1-44/200
400	600	250	BJS1-46/250
400	600	300	BJS1-46/300
500	400	150	BJS1-54/150
500	400	200	BJS1-54/200
500	400	250	BJS1-54/250
500	500	250	BJS1-55/250
600	400	150	BJS1-64/150
600	400	200	BJS1-64/200
600	400	250	BJS1-64/250
600	500	150	BJS1-65/150
600	500	200	BJS1-65/200
600	500	250	BJS1-65/250
600	600	250	BJS1-66/250
600	600	300	BJS1-66/300
600	800	300	BJS1-68/300
700	500	200	BJS1-75/200
700	500	250	BJS1-75/250
800	600	200	BJS1-86/200
800	600	250	BJS1-86/250
800	600	300	BJS1-86/300
800	600	400	BJS1-86/400
800	800	200	BJS1-88/200
800	800	300	BJS1-88/300
800	1000	300	BJS1-810/300
1000	600	250	BJS1-106/250
1000	600	300	BJS1-106/300
1000	800	250	BJS1-108/250
1000	800	300	BJS1-108/300
1000	800	400	BJS1-108/400
1000	1000	300	BJS1-1010/300
1000	1200	300	BJS1-1012/300
1200	800	300	BJS1-128/300
1200	800	400	BJS1-128/400
1200	1000	300	BJS1-1210/300
