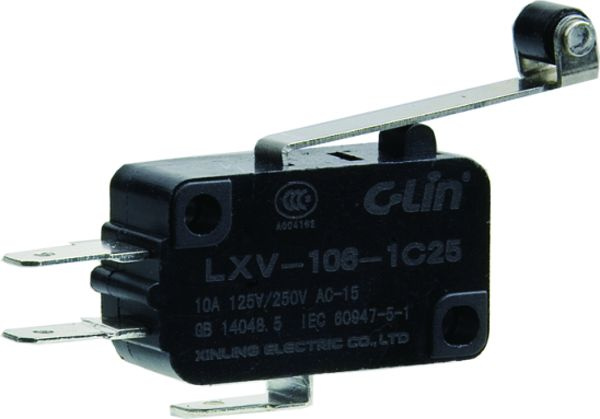

Hinge Roller Lever Micro Switch (LXV-106-1C25)

Name: Hinge Roller Lever Micro Switch (LXV-106-1C25)
Brand: all-electronics-online.com
SKU: 695407695
Availability: InStock
Rating: 4.6 (107 reviews)

Price:	US $ 0.32-0.63/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LXV-106-1C25
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Carton Size:	445X310X510mm
Kg/CTN:	18.65kg
Version:	with Spring Handle and Roll
Operating Speed:	0.01mm~1m/S
Operating Frequency:	Mechanical:120 Operations/Minute
Conventional Thermal Current:	10A
Electrical Specification:	AC220V/1A DC220V/0.1A
Shock Resistance:	Destruction:500m/S2
Ambient Temperature:	Minus 10 to 80 Centigrades
Ambient Humidity:	90% Max.
Pressing Type:	Lever Roller
Size:	Small-Sized
Environment:	﹤250℃
Breaking Capacity:	General Type
Application:	Household Appliance; Commercial Appliance etc.
Brand:	Clin

Product Description

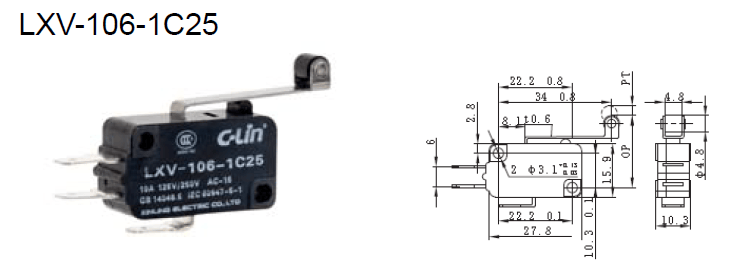

Micro Switch(LXV-106-1C25)

General Introduction

LXV series microswitch is widely used in household electric appliances(e.g. Microwave oven, electric cooker, washing machine, audio equipment, warmer, drinking fountain, humidifier, disinfection cabinet etc.), commercial electric appliances(e.g. Vending machine, game machine, electronic toys, electric power tool, copier, shredder etc.), machinery(e.g. Transport machinery, printing machinery, textile machinery etc.) and others(e.g. The drive mechanism of the electric door, the release mechanism of some equipment etc.).
Approved standards: GB 14048.5, IEC 60947-5-1.

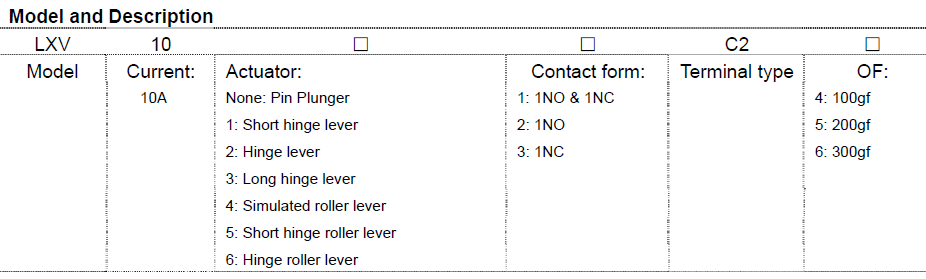

Model	OF max	RF min	PT max	MD max	OT min	OP
LXV-10-1C25	200g	50g	1.2mm	0.4mm	1.0mm	14.9±0.8mm
LXV-101-1C25	200g	50g	1.2mm	0.4mm	1.0mm	15.6±1.0mm
LXV-102-1C25	90g	20g	4.0mm	1.0mm	2.0mm	15.6±1.2mm
LXV-103-1C25	50g	15g	8.0mm	2.0mm	4.0mm	15.2±2.5mm
LXV-104-1C25	105g	20g	4.0mm	1.0mm	2.0mm	19.5±1.2mm
LXV-105-1C25	200g	40g	1.2mm	0.4mm	1.0mm	21±1.2mm
LXV-106-1C25	110g	20g	4.0mm	1.0mm	2.0mm	21±1.2mm

Xinling Electrical Co., Ltd. China was established in 1990. Now we have 10 sub-branch companies, each company is responsible for manufacturing different kinds of electrical products, We have more than 100 cooperation units, and 100 direct distributors, 1000, 000 square meter factory area and 1600 stuffs.

Our company mainly produces mini relay, time relay, solid state relay, electric power relay, temperature controller, kilowatt-hour meter, circuit breaker, AC contactor and some other electrical component which are the first choice of electric net reconstruction. With perfect management system and technical advancement, it strengthens the management of enterprise and promotes product quality. Our company takes prospering national industry as its own responsibilities, works hard developing economy of China to promote enterprise level.

The enterprise has gained ISO9001 and RVA Quality System Attestation(Netherlands), and its products have gained CE attestation (European Community), and UL Attestation and CCC Safety Attestation in China successively, and have been insured by PICC, besides, their quality has been ensured by quality "three guarantee". As a result, its products are sold well in more than 30 provinces and cities of China and are exported to Europe, America, Middle East, South-Eastern Asia, Africa and so on 20 countries and districts. Successively, the enterprise has been given the titles of Star Enterprise of China, Financial AAA Grade Enterprise, Gold Client of Agriculture Bank of China, and Credit Enterprise of Product Quality.

Xinling is ready for creating a magnificent tomorrow together with you!
