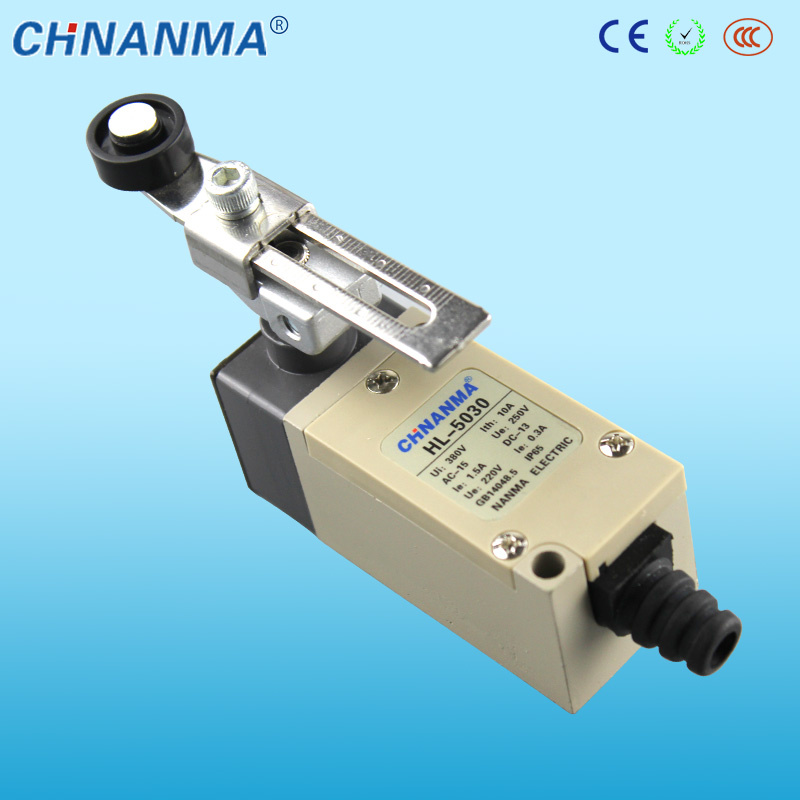

Hl-5030 Stainless Steel Roller Type Limit Switch with Ce

Name: Hl-5030 Stainless Steel Roller Type Limit Switch with Ce
Brand: all-electronics-online.com
SKU: 727875012
Availability: InStock
Rating: 4.8 (104 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Hl-5030

Product Description

Metallic bottom shell;
Stanless steel roller, punch and spring;
Strong electric proporty 10A250V for 500.000times.

Characterstics

Protection		IP67
Life	Mechanical	1,000,000times above
Life	Electrical	5mm-0.5m/sl
Operation speed		5mm-0.5m/sl
Operation frequency	Mechanical	120times/m
Operation frequency	electrical	30times/m
Insulation resistance		100MΩ Above(500VDC
Contact resistance		less than 25mΩ
Withstand voltage	between the terminals of same pole	AC1,000V
	between charged metal parts	AC1,500v
	between charged metal parts each terminal	AC1,000V
Vibration	misoperation	10-15hz amplitude 1.5mm
Load		AC 250V5A
		AC 380V5A
		AC 125V3A
		AC 250V3A

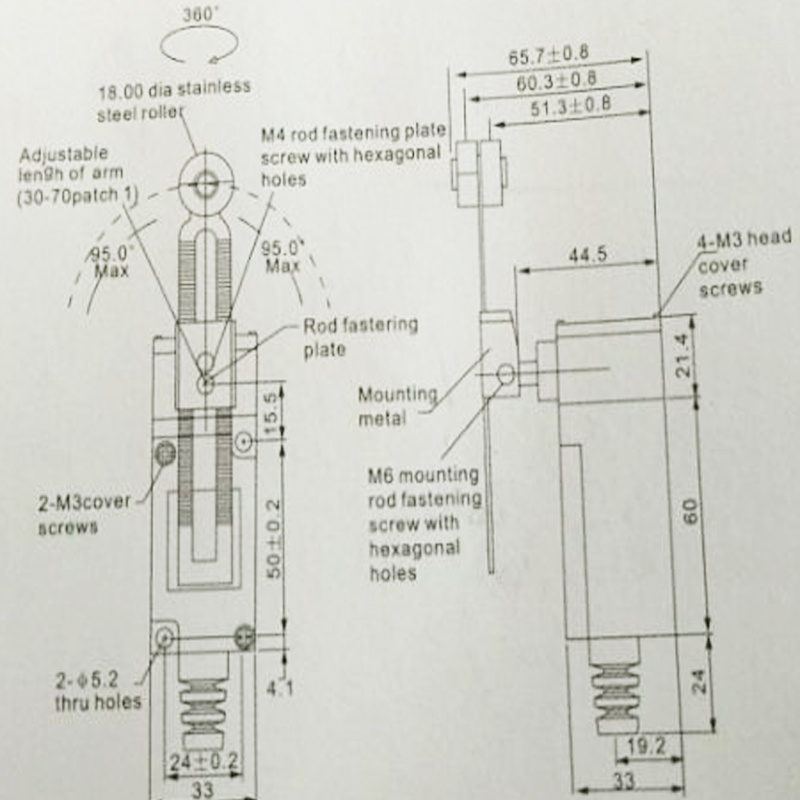

Dimension/Operation Characteristics

OF Max	500g(4.9N)
RF Min	80g(0.78N)
PT Max	30°
OT Min	70°
MD Max	15°
OP	90°
