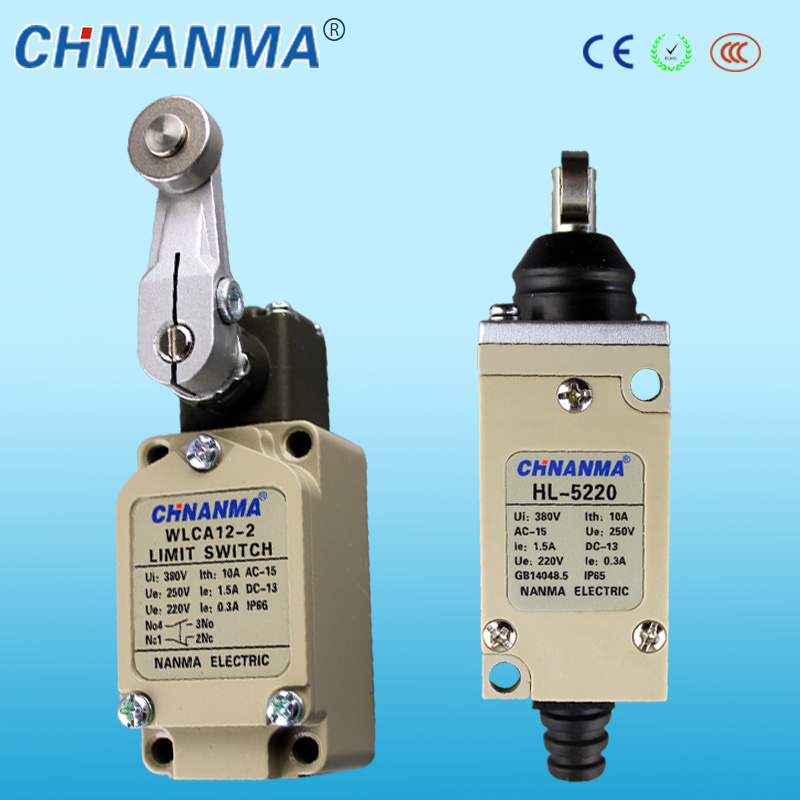

Hl-5220 Stainless Steel Roller Type Limit Switch with Ce

Hl-5220 Stainless Steel Roller Type Limit Switch with Ce
Price: Negotiable/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: Hl-5220

Product Description

Metallic bottom shell;
Stanless steel roller, punch and spring;
Strong electric proporty 10A250V for 500.000times.

Characterstics
Protection IP67
LifeMechanical1,000,000times above
Electrical5mm-0.5m/sl
Operation speed 5mm-0.5m/sl
Operation frequencyMechanical120times/m
electrical30times/m
Insulation resistance 100MΩ Above(500VDC
Contact resistanceless than 25mΩ
Withstand voltagebetween the terminals of same poleAC1,000V
between charged metal partsAC1,500v
between charged metal parts each terminalAC1,000V
Vibration  misoperation10-15hz amplitude 1.5mm
Load AC 250V5A
AC 380V5A
AC 125V3A
AC 250V3A

Dimension/Operation Characteristics



OF Max900g-cm
RF Min200g
PT Max1.8mm
OT Min2mm
MD Max1.2mm
OP5.8mm
Yueqing Nanma Electrical Co., Ltd.and Jiangxi Nanma Electrical Co, Ltd Which a professional R&D and manufacture Micro switch, limit switch, travel swith, sealed switch, waterproof switch, toggle switches and so on Our company was established in 2004. Our ISO 9001-certified factory occupy a total land area of 1000 square meters and house more than 200 employees and two production lines outfitted with advanced production equipment. We have a monthly outup of 10 thousand sets of switch, which are exported to the Southeast Asia, Middle East, European. The market feedback shows that the products may completely substitude for the similar, work force: Our 2 QC auditors ensure all our products passed CE and CCC certifications. Implementing strict quality control in the whole production process, We have 2 R&D personnel with more than five years of experience who can design as customer offered sample to open model. We have 4 trade representatives with more than three years of experoence who are proficient in English. We are sincerely invite you to witness our development and resplendence together! Contact us today.
