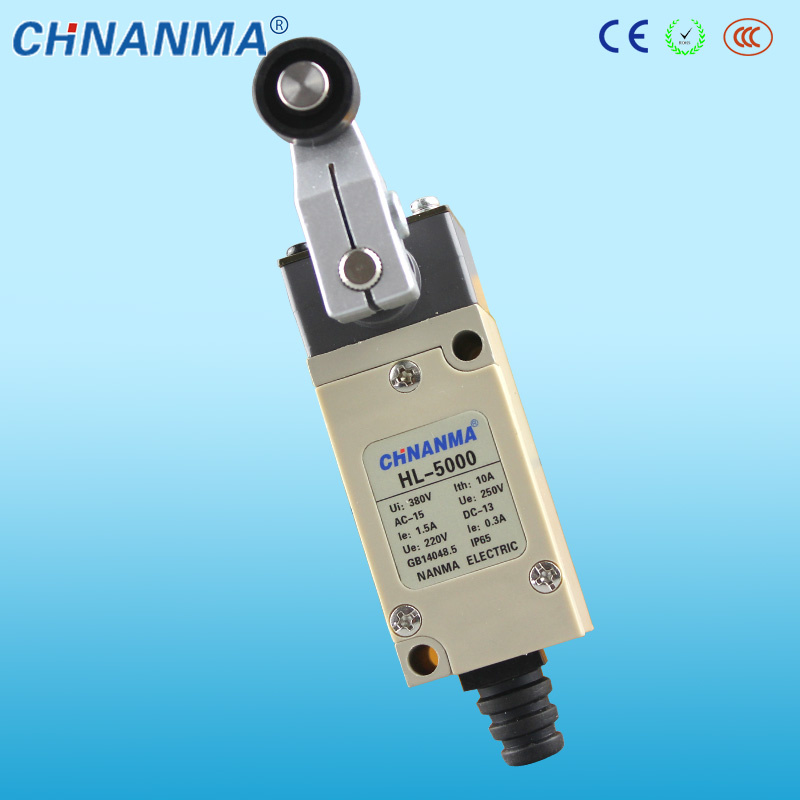

Hl Series Classical Style Industrial Electrical Limit Switch with Competitive Price

Name: Hl Series Classical Style Industrial Electrical Limit Switch with Competitive Price
Brand: all-electronics-online.com
SKU: 729105612
Availability: InStock
Rating: 4.7 (70 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HL-5000

Product Description

Housing	Aluminum
Tip material	Silver
Contact	1NO+1NC
Contact material	Brass
Stainless steel roller,punch and spring
Strong electric property 10A,250V for 500,00times

2.Specifications

Operating speed	5 mm/s to 0.5 m/s
Operating Frequency	Mechanical	120 operations/min
	Electrical	30 operations/min
Insulation resistance	100 MΩ min. (at 500 VDC)
Contact resistance	25 mΩ max. (initial value)
With stand voltage(50/60 Hz 1 min)	Between the terminals of same pole	AC 1,000V
	Between charged metel parts	AC 1,500V
	Between non-charged metal parts of each terminal	AC 1,500V 10~55Hz(amplitude 1.5mm)
Rated frequency	50/60 Hz
Vibration resistance	Malfunction	10 to 55 Hz, 1.5-mm double amplitude
Shock resistance	Destruction	1,000 m/s2 max.
	Malfunction	300 m/s2 max.
Ambient operating temperature	5°C to +65°C (with no icing)
Ambient operating humidity	35% to 95%RH
Load	AC 380V 5A
	DC 125V 5A
	DC 250V 5A

3.Operating Characteristics

Model	HL-5030
OF Max	750g-cm
RF Min	100g-cm
PT Max	20º
OT Max	22.5º
MD Max	10º
EP Max	75º
OP mm	95º

Our service
Chnanma Company enjoyed a good reputation internationally in the circle of electric & electronic equipments. Regarding "Quality First, Credit First" as the everlasting topic,it insists on developing business with science & technology and researching and developing new products continuously.Under top quality, excellent service, good reputation . Chnanma wishes to cooperate with clients from all over the world to create brilliant future.

Yueqing Nanma Electrical Co., Ltd.and Jiangxi Nanma Electrical Co, Ltd Which a professional R&D and manufacture Micro switch, limit switch, travel swith, sealed switch, waterproof switch, toggle switches and so on Our company was established in 2004. Our ISO 9001-certified factory occupy a total land area of 1000 square meters and house more than 200 employees and two production lines outfitted with advanced production equipment. We have a monthly outup of 10 thousand sets of switch, which are exported to the Southeast Asia, Middle East, European. The market feedback shows that the products may completely substitude for the similar, work force: Our 2 QC auditors ensure all our products passed CE and CCC certifications. Implementing strict quality control in the whole production process, We have 2 R&D personnel with more than five years of experience who can design as customer offered sample to open model. We have 4 trade representatives with more than three years of experoence who are proficient in English. We are sincerely invite you to witness our development and resplendence together! Contact us today.
