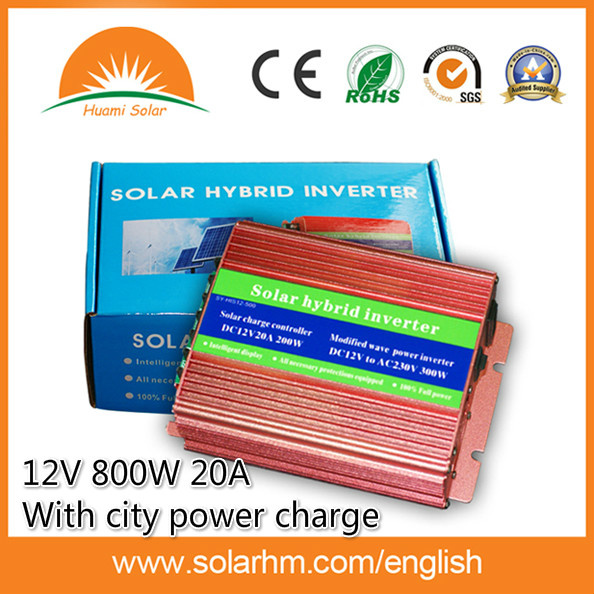

(HM-12-800) 12V 800W Hybrid Inverter Can with City Power
| Price: |
US $ 31.23-32.8/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
HM-12-800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Controller: |
12V20A |
| City Power Charge: |
Yes |
| UPS: |
Yes |
| Power: |
800W |
| Battery: |
12V |
| Size: |
41.0*25.0*32.0cm |
| Phase: |
Single |
| Power Source: |
Solar Power |
| Application: |
Air Conditioner |
| Brand: |
Huami |
Product Description
Product parameter| Type | Out put power | External pack size | N.W | N.W | Oty per
carton |
| Voltage | Power |
| HM-12-500 | 12v | 500w |
41.0*25.0*32.0cm | 8.5kg | 10.5kg |
10PCS/CTN |
| HM-24-500 | 24v | 500w | 8.5kg | 10.5kg |
| HM-12-800 | 12v | 800w | 9.0kg | 11.0kg |
| HM-24-800 | 24v | 800w | 9.0kg | 11.0kg |
| HM-24-1600 | 24v | 1600w | 9.5kg | 11.5kg |
Product model of solar hybrid inverter
1. SY-HIS12-500
2. SY-HIS24-500
3. SY-HIS12-800
4. SY-HIS24-800
H: Hybrid, I: Inverter, S: Solar, 12: Battery 12 V, 500: 500 W
Product features
Integration design of solar controller and inverter output, which makes it affordable.
Design of overall aluminum housing, which is good for heat dissipation.
There are three routes of DC output ports and one route of AC output consent. AC output is under switch control.
Product functions
1. Auto charging and output
2. Over-voltage and low-voltage protection of battery
3. Manual control over AC output
4. Over-current protection
Interface description
1. Sketch map of front interfaces
DC output interface 1
DC output interface 2
Connected to the solar panel anode
Connected to the solar panel cathode
Connected to the accumulator anode
Connected to the accumulator cathode
Connected to the direct-current load anode
Connected to the direct-current load cathode
USB charge interface
LED display
Data display
1) Battery voltage display "V"
2) Discharge current display "A"
3) Voltage protection display "U"
4) Current protection display "C"

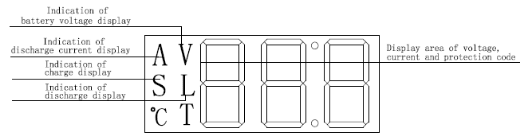

Indication of battery voltage display
Indication of discharge current display
Indication of charge display
Indication of discharge display
Display area of voltage, current and protection code
Instructions:

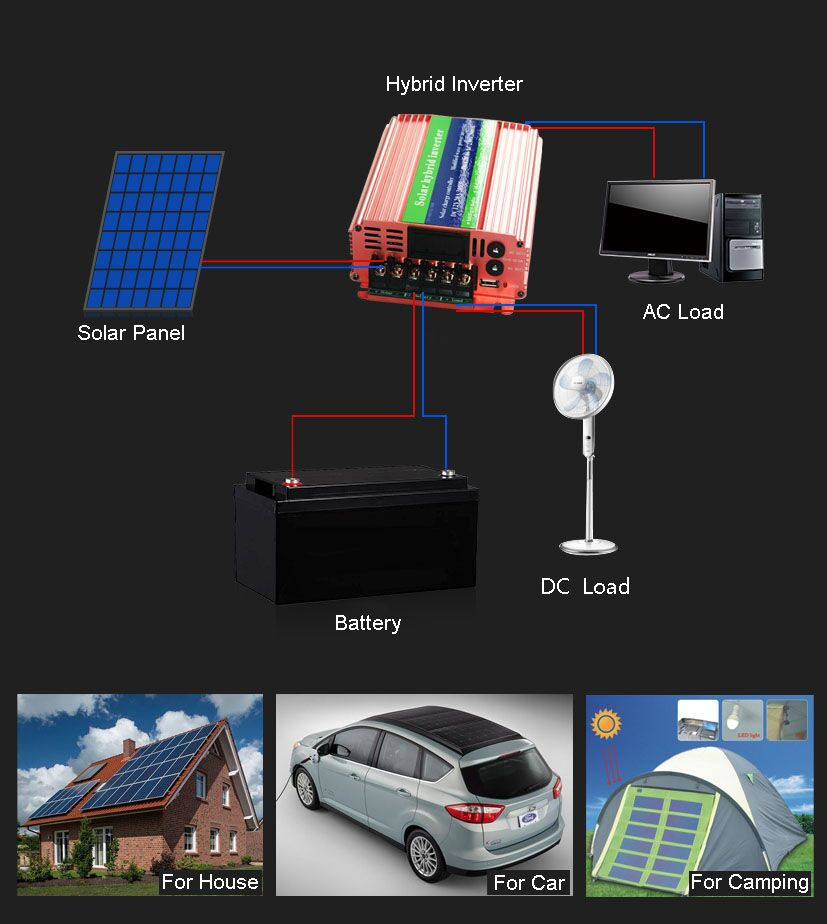

This product is the integrated product of solar controller and inverter and the inverter output is manually controlled by switch. It's required to recognize the product terminal position in installation. The battery is connected firstly, and the anode and cathode shall be connected properly. Then the solar charging panel and load are connected. In connection of DC load, it shall be ensured that the maximum current of connected load cannot exceed the rated current of product output; In connection of AC load, it shall also be ensured that the maximum power connected cannot exceed the rated power of product, avoiding damage.
FAQ| Problem | Solution |
| Flicker of display screen "U" | 1. It is the over-voltage protection. Check if the type of battery installed is in accord with
controller.
2. Check if the battery is damaged. |
| Flicker of display screen "u" | The battery is under-voltage. |
| Flicker of display screen "C" | 1. It is the over-current protection. Check if the load is over heavy.
2. Check if the load side is short out. |
Precautions
1. Do not throw the product into fire to avoid harm to the human body;
2. Do not throw the product into water to avoid the permanent damage;
3. Do not use the product in moist or high-temperature atmosphere;
4. Do not try disassembling the product to avoid electric shock;
5. Do not let direct short-circuit of output side to avoid dangers.
Guangzhou Huami Solar Power Co., Ltd is a high-technical photovoltaic enterprise, which is located in Guangzhou, Guangdong province. And as a bridge connecting the most advanced Chinese photovoltaic industry and the rest of the world.
Our company specializes in solar panel, ranging from 1W to 300W, and solar roof tiles, which is unique in the world, and mainly divided into 8W, 12W, 20W and 24W capacity. All these products get the CE, RoHS, TUV and ISO 9001, ISO14001 certificate. As customer needs, we can supply both off-grid and on-grid solar system. Besides, our solar lamp, solar inverter, solar controller are all very popular in many countries.
Our company is honored with the short lead time, high quality, competitive price and first-class service in the solar power business field, that's why we can export lots of profucts to Eastern Europe, Northern Europe, Southeast Asia, Africa, andSouth America.
Welcome to visit our company and we are looking forward to cooperating with clients from all over the world!
