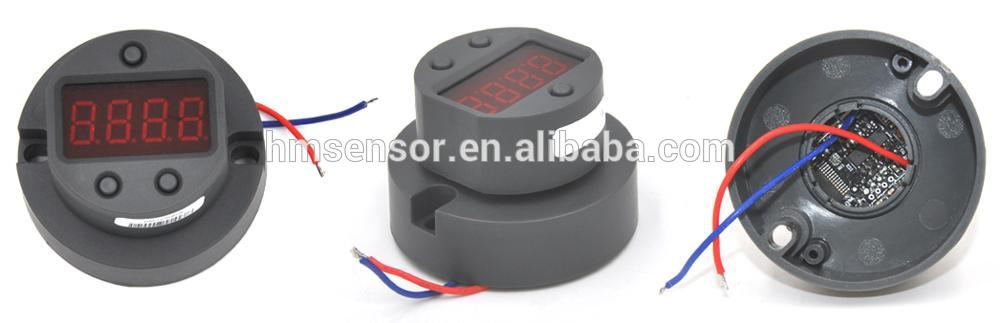

Hm-D604 LED Display 4~20A Temperature Transmitter PCB, Pressure Transmitter

Name: Hm-D604 LED Display 4~20A Temperature Transmitter PCB, Pressure Transmitter
Brand: all-electronics-online.com
SKU: 835838685
Availability: InStock
Rating: 4.5 (129 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	HM-D604

Product Description

Product Features

∗ Lightning and RFI immunity, Anti-pulse capability,Anti-leakage interference

∗ Double sensor input, Multi-function selection output

∗ Display with customized logo

∗ Allow linear overflow, Support fault alarm

∗ Adjust the measuring rage by dial switch

∗ Various ways of temperature compensation

∗ Full 360 degree rotation available for display

Model Name	HM-D604 LED Display transducer PCB, temperature/pressure transmitter
Input	Input signal	4~20mA
	Measuring rage	range -1.9.9.9…9.9.9.9
	Resolution	1/100000 FS
	Connection	2-wire/Lantern head, junk ring
Output	Analog signal output	4~20mA
	Range overflow	3.5mA…25mA(linear)
	Limited-current	≤25mA
	Load resistance	RL≤(Ue-2.9V)/0.025A(current output)
power supply	Power supply	Loop powered
	Reverse Current Protection	Yes
	Voltage drop	2.9V
EMC	RFEMS	>10V/m(80MHz…1000MHz)
Parameter	Installation method	Field installation,aluminium alloy housing(big)
	Configuration mode	Button
	Display	LED Display
	Display height	9.2mm
	Display precision	4-bit digital display
	Display accuracy	0.1% FS±1
	Temperature drift	0.008% FS/1ºC
	Response time	1s
	Starting time	1s
	Insulation resistance	≥100MΩ
	Operating temperature	-40…85ºC
	Absolute temperature	≤95%RH
	Enclosure protection class	IP00/IP67
	Safety and explosion protection	Ex ia II CT6
	Outline Dimension	Φ54x18mm
	Hole pitch of Instllament	Lantern head 25mm,27mm;junk ring 41mm
	Weight	40g
	Applications	Bare board of Temperature/Pressure sensor, temperature Transducer Module

Certifications

Established in 2006, Nanjing Helm Sci-tech Co., Ltd. (Nanjing Jiucheng technology Co., Ltd) is specialized in R&D and production of pressure measuring and controlling instruments. It has introduced the internationally advanced production technology, equipment and process as well as strict product quality standards and ODM cooperation concept to China, so as to manufacture and sell JC pressure / differential pressure / liquid level sensors and transducers in mainland China.

Our products have been fallen into six categories totaling hundreds of specifications in dozens of series. Main products include: High-accuracy Pressure Sensor, General-purpose Pressure transducer, Liquid Level transducer, Anti-lightning/Anti-corrosive Liquid Level transducer, Special Pressure transducer for Air Conditioner, Refrigeration and Compressor, Special Pressure transducer for Oilfield and Mining Well, Economical Pressure Sensor and transducer, Ceramic Capacitor Pressure transducer, Vacuum Pressure transducer, Sapphire Pressure transducer, Digital Pressure transducer, Micro Differential Pressure / Air Pressure transducer, Intelligent Digital Pressure Gauge, Intelligent Digital Pressure Switch, Anti-corrosive Pressure transducer, Anti-explosive Pressure transducer, Hygienically Flat-membrane Pressure transducer, High-temperature Pressure transducer, High-frequency Pressure transducer, Micro Pressure transducer, Integrated Temperature transducer, and Capacitance Pressure transducer.
