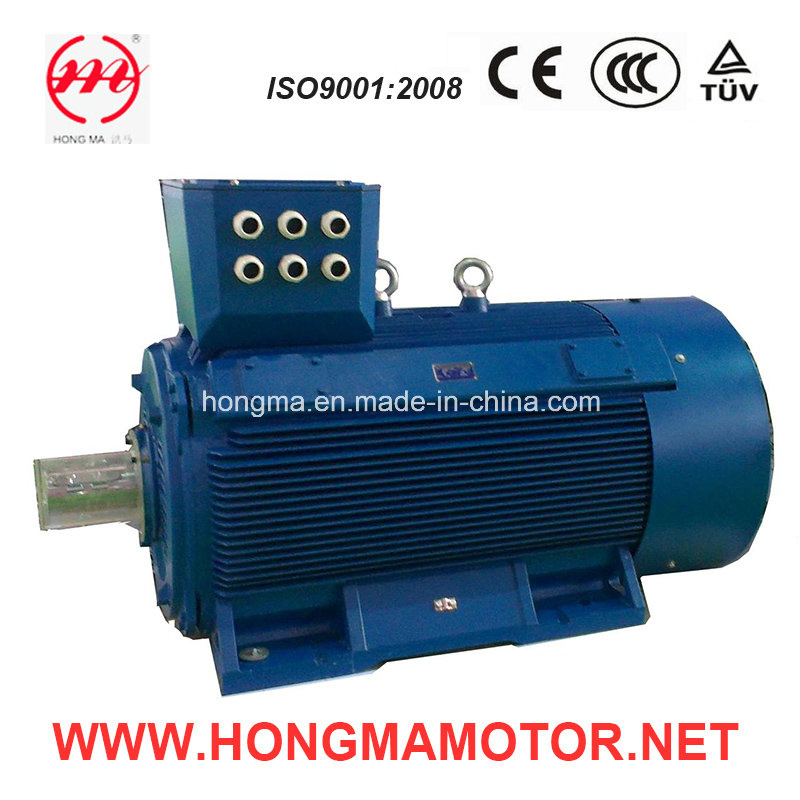

Hm Low-Voltage Large-Power Series Three Phase Asynchronous Induction Efficiency Electric Motor
| Price: |
US $ 1500-25000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |
| Prod Model: |
HM Low-Voltage Large-Power |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frame Size: |
300~450mm |
| Frequency: |
50Hz, 60Hz, 50/60Hz |
| Output Power: |
220-500kw |
| Voltage: |
220/380V, 380/660V, 230/400V, 400V/690V |
| Insulation Class: |
B\F\H |
| Protection: |
IP55 |
| Cooling Method: |
IC411 |
| Mounting Type: |
B3, B5, B14, B35multi and Pad Mounting |
| Wire: |
100% Copper Wire |
| Efficiency Class: |
Ie4 |
| Number Of Stator: |
Three-Phase |
| Function: |
Control |
| Number Of Poles: |
2, 4, 6, 8, 10, 12 |
| Certification: |
CE |
| Brand: |
Hongma |
Product Description

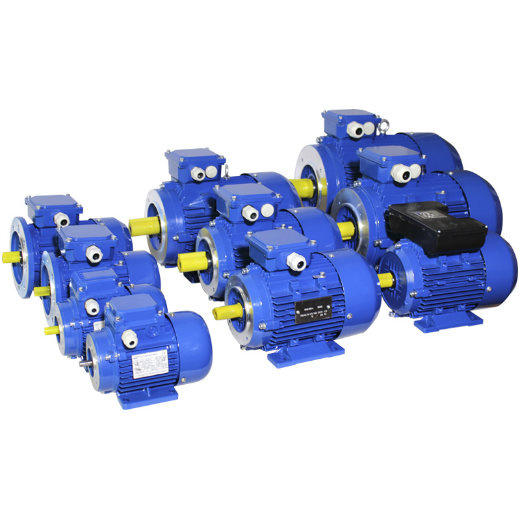

HM series low-voltage large-power totally enclosed squirrel-cage three phase asynchronous motors are based on Y2 series motors, which adopts new material and new technique, the identical contour structure with Y2 series. The motor adopts F grade insulation, IP55 degree of protection, 380V or 660V rated voltage, 50HZ rated frequency, IMB3 installation type and IC411 cooling method. This series motors are characterized with small volume, light weight, compact structure, high efficiency and low noise to satisfy consumer's requirement for environmental protection.
This series are widely used for driving various kinds of mechanical equipment such as pumps, blowers, compressor, transport machinery, as well as for prime mover in petrochemical and mine industry.1. 100% output with 100% copper winding;
2. Hongma customer's requirement & customer's drawing;
3. Different size of flange to fit for different device, customized flange is workable.
4. All materials are brand-NEW.

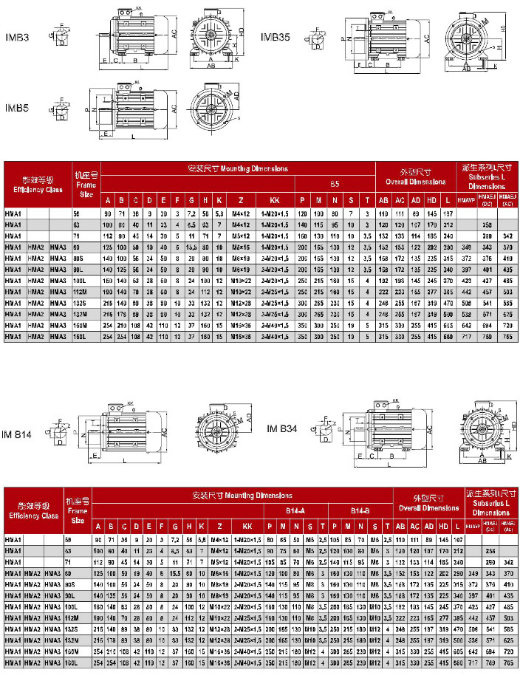

Mounting Type
Technical Data| Frame Size | 220~450mm |
| Frequency | 50HZ, 60HZ |
| Output Power | 220KW-500KW |
| Voltage | 220/380V,380/660V,230/400V,400V/690V |
| Insulation Class | B,F,H |
| Protection | IP55 |
| Cooling Method | IC411 |
| Wire | 100% Copper Wire |
| Mounting Type | B3,B5,B14,B35multi and pad mounting |
| Pole | 2, 4, 6, 8, 10, 12 |
FENGHUA CITY ELECTRICAL MOTOR CO., LTD
Add: NO.4 Changhe North Rd, Fangqiao, Fenghua, Ningbo,
Zhejiang Province, P. R. CHINA
Tel: +574 55339278
Fax:+574 8865 0988
Mob: +86 15867838828Website: www.hongmamotor.net
Located in Ningbo City, an open seaport of China, we are one of the main manufacturer specialized in the manufacture of small & medium size electrical machinery in China. With a powerful scientific and technical force, advanced developing mode, high efficiency production facilities, complete testing conditions and consummate modernized management system, our company manufacture all the products in conformity with the IEC standards and the products have been reached the advanced level of the same products in the world. It has obtained the quality license for export electrical machinery, the ISO 9001: 2008 Quality Management Certificate, CE conformity and China CCC authentication. What's more, we have obtained direct importing and exporting rights which are approved by Chinese government.
Company's main products are: 1HM Series Three Phase Asynchronous Electric Motor, 2HM Series High Efficiency Electric Motor, 3HM Series Premium Efficiency Electric motor, HM Series Large Power Electric Motor, ML/MU/MY/MB Series Singe Phase Asynchronous Motor, HMD Variable Speed Motor, HMEJ(AC) Series Self-Braking Electric Motor (AC), HMEJ(DC) Series Self-Braking Electric Motor (DC), HMVP Series Integrated Frequency Inverter Motor, ST Series Servo Motor, HMG Series Screw Compressor Motor, HMP Series Pump Motor, GOST R standard Motor and UL NEMA Standard Motor.
We are looking for new distributors and agents in the whole worldwide to expand our sales network. Welcomes contact us to build business relationship and friendship.
