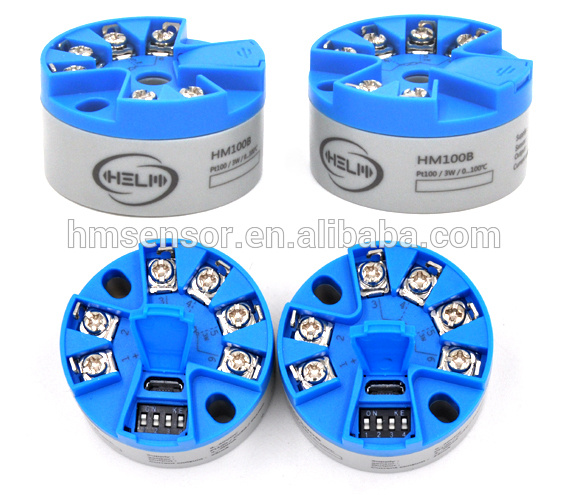

Hm100b-D105 PT100 Temperature Transmitter Module, 4~20mA Output, PT 1000 Temperature Transmitter

Name: Hm100b-D105 PT100 Temperature Transmitter Module, 4~20mA Output, PT 1000 Temperature Transmitter
Brand: all-electronics-online.com
SKU: 835878595
Availability: InStock
Rating: 4.8 (112 reviews)

Price:	Negotiable/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HM100B-D105

Product Description

Product Features
Safe,efficient,smart and visual temperature transmitter module
One type of design, could use it inside of the temperature sensor junction box; have lots of security features, provide the cold junction compensation; add dial switch, could set off-line, visible measuring range,reduce the difficult of adjustment,increase the efficiency over 500%.

Model Name	HM100B-D105 temperature transmitter module
Input	Input signal	Thermal resistance:Pt100,Cu50,Pt1000…etc total 11 types
	Measuring rage	Thermal resistance 20ºC
	Sensor Connection	2-wire,3-wire,4-wire
	Max line resistance permitted	50Ω/wire
Output	Analog signal output	4~20mA / 20 ~ 4mA
	signal transmission characteristic	linear with temperature output
	Range overflow	3.8mA…20.5mA(linear)
	Sensor Fault Alarm	≤3.6mA or≥ 21.5mA
	Limited-current	≤25mA
	Load resistance	RL≤(Ue-9V)/0.025A(current output)
power supply	Power supply	Loop powered
	Voltage range	9….30V DC
	Reverse Current Protection	Yes
	Voltage drop	9V
EMC	Surge immunity	±4000V(≤5)
	electrical fast transient / burst immunity test	4 class
	RFEMS	>10V/m(80MHz…1000MHz)
Parameter	Installation method	sensor hear DIN B or more bigger junction box
	Configuration mode	DIP switch+ PC configurable
	Display	display components(Optional )
	conversion accuracy	0.2ºC/0.2%
	Temperature drift	0.008% FS/1ºC
	Response time	1s
	Starting time	4s
	Insulation resistance	≥100MΩ
	Operating temperature	-40…85ºC
	Relative humidity	≤95%RH
	Enclosure protection class	IP00/IP67
	Safety and explosion protection	Ex ia II CT6
	Outline Dimension	Φ44x24mm
	Hole pitch of Instllament	33….36mm
	Weight	40g

Certifications

Packaging & Shipping

Established in 2006, Nanjing Helm Sci-tech Co., Ltd. (Nanjing Jiucheng technology Co., Ltd) is specialized in R&D and production of pressure measuring and controlling instruments. It has introduced the internationally advanced production technology, equipment and process as well as strict product quality standards and ODM cooperation concept to China, so as to manufacture and sell JC pressure / differential pressure / liquid level sensors and transducers in mainland China.

Our products have been fallen into six categories totaling hundreds of specifications in dozens of series. Main products include: High-accuracy Pressure Sensor, General-purpose Pressure transducer, Liquid Level transducer, Anti-lightning/Anti-corrosive Liquid Level transducer, Special Pressure transducer for Air Conditioner, Refrigeration and Compressor, Special Pressure transducer for Oilfield and Mining Well, Economical Pressure Sensor and transducer, Ceramic Capacitor Pressure transducer, Vacuum Pressure transducer, Sapphire Pressure transducer, Digital Pressure transducer, Micro Differential Pressure / Air Pressure transducer, Intelligent Digital Pressure Gauge, Intelligent Digital Pressure Switch, Anti-corrosive Pressure transducer, Anti-explosive Pressure transducer, Hygienically Flat-membrane Pressure transducer, High-temperature Pressure transducer, High-frequency Pressure transducer, Micro Pressure transducer, Integrated Temperature transducer, and Capacitance Pressure transducer.
